- Description
- Heavy Tube Steel Frame
- Precision Ground Cast Iron Table with replaceable throat plate
- Unique Heavy Duty Roller Guides
- Rotate 90 to accommodate long pieces
- Baldor Motor
- VFD Motor Drive for variable blade speed
- Magnetic Starter with:
- Under-voltage and
- Overload protection
- 115 Volts at Controls
- Two Speed Cast Iron Gearbox:
- with helical gears and oil bath
- lubrication for quiet operation
- Blade Speed Indicator
- Blade Tension Indicator
- Flexible Arm Worklight
- Chip Blower (shop air)
- Removable Chip Tray
- Tiger-Tooth Bi-Metal Blade
- OSHA Blade Guarding
- Rotary Blade Brush
- MANUFACTURED IN THE USA
- Manufacturer
- Specifications
- Options/Accessories
- Factory Installed Options Available:
- Ideal Blade Welder, Grinder and Shear
- 24" Extended Height (Model V20-24)
- Miter Gauge
- Rip Fence, 26"
- 1" blade (not available on V-20-24)
- Spray Mist Coolant System
- Vacuum Nozzle
- Extension Tables
- Stock Stand
- 5 ft. and 10 ft. Non-Powered Roller Conveyor
- NFPA Electrics (w/ fused disconnect)
- *Consult Factory For Additional Options
- Custom Freight

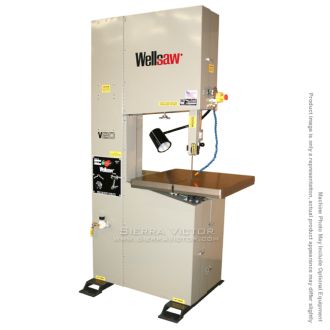

WELLSAW 20 in. Vertical Bandsaw V20F
ITEM: 20 in. Vertical Bandsaw
MANUFACTURER: WELLSAW
MODEL: V20F
Manufacturer:
Wellsaw
Machine Type
Machine Category:
Bandsaws
Position:
Vertical
Metalworking
Saw Capacity:
20"+
MODEL |
V-20F |
|
Capacity |
Throat |
20 in. Deep |
Table to Guide |
16 in. High |
|
Blade Size |
Standard |
3/16 in. through 3/4 in. |
Optional |
1/2 in. through 1 in. |
|
Blade Length |
14 ft 9 in. (177 in.) |
|
Band Wheels |
21 in. Cast Aluminum with Replaceable Rubber Tires |
|
Blade Speeds |
Low Range |
45-400 SFPM |
High Range |
325-3000 SFPM |
|
Blade Guides |
Sealed Ball Bearings with 90° Rotation Feature |
|
Table Size |
26 x 26 in. Cast Iron |
|
Tilt |
5° Inside and 45° Outside |
|
Height |
37-1/2 in. |
|
Drive Motor (specify) |
Three Phase |
3hp, 208/230/460 Volt |
Single Phase |
2hp, 115/208/230 Volt |
|
Floor Area |
32 Wide x 48 Deep in. |
|
Height Standard |
83-1/2 in. |
|
Shipping Weight |
950 lbs. |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
