- Victor JF-5EVS electronic variable speed vertical knee mill driven by 5 HP frequency inverter drive comes with rigid one piece bed and special double wall designed box structure column casting. The mill is built to highest quality standards to ensure reliability and consistency.
- Table elevating motor
- Auto lubrication system
- Meehanite casting
- Hardened and ground table and slide ways
- Rigid one piece bed and special double wall designed box structure column casting
- Square slide ways
- Turcite-B on X & Y-axis slide ways
- Double saddle locks
- Precision hand scraped
- High precision chromed quill
- NMTB #40 spindle taper
- 6" spindle quill travel
- 5 HP frequency inverter drive motor
- Variable frequency drive
- Table elevating motor
- Auto lubrication system
- Control panel
- Draw bar
- Front rubber way cover
- Rear rubber way cover
- Tool box with tools
- Manufacturer
- Specifications
- Custom Freight

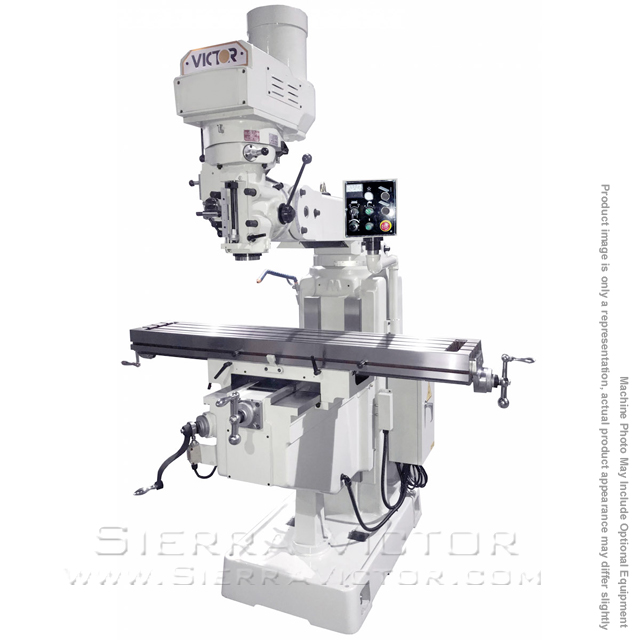

VICTOR 10" x 54" Electronic Variable Speed Mill JF-5EVS
STANDARD ACCESSORIES:
ITEM: 10" x 54" Electronic Variable Speed Mill
MANUFACTURER: VICTOR
MODEL: JF-5EVS
Manufacturer:
Victor
Machine Type
Machine Category:
Mills
Control:
EVS
Metalworking
Mill Capacity:
10" x 54"
CAPACITY
|
Table size |
10" x 54" |
|
Longitudinal travel (X-axis) |
40” (No Powerfeed) |
36” (w/Powerfeed) |
|
Cross travel (Y-axis) |
16" |
||
Vertical travel of knee |
16" |
||
Distance from spindle nose to table |
20.75" |
||
Slide ways |
Square |
||
SPINDLE
|
Spindle motor |
5 HP, 3 Ph. (Single phase optional) |
|
Spindle taper |
NMTB #40 |
||
Spindle speeds |
60 ~ 3,600 rpm (Inverter drive electronic variable speed) |
||
Quill travel |
6" |
||
Quill feeds |
0.0017” (0.04 mm), 0.0032” (0.08 mm), 0.0053” (0.13 mm) |
||
Quill diameter |
4.13" |
||
Swiveling angle of head |
90º |
||
Head inward & outward |
45º |
||
WEIGHT & DIMENSIONS
|
Overall height |
84" |
|
Overall depth |
77.18" |
||
Overall width |
105" |
||
Packing dimensions (LxWxH):
|
70” x 62” x 76” |
||
Approx. Net weight:
|
3,590 lbs.
|
||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
