- Description
- Large 4-1/8" spindle bore and 15 HP main motor high precision heavy-duty lathe designed to turn heavy parts smoothly and efficiently. The quality built construction ensures maximum durability, rigidity, and unsurpassed reliability.
- Hardened and precision ground chromium molybdenum steel gears in headstock
- Hardened and ground bed ways
- Meehanite casting bed
- Large 4-1/8" spindle bore with D1-11 spindle nose
- Spindle speed range 15 ~ 1,200 rpm
- Carriage with mechanical overload device
- Turcite B coated slideways between saddle and bed
- Cross slide is induction hardened to HRC 52° and precision ground
- 2-speed tailstock quill speed
- Universal inch/metric gearbox
- Dual speed tailstock quill (ratio 1:1 and 1:5) provides easy drilling operation
- 2-way longitudinal (z-axis) power rapid traverse on S22100S and S22120S
- Removable gap
- Tailstock with duo speed quill
- Coolant system
- Chuck cover with limit switch
- D.P. / module thread change gears
- Threading dial indicator
- Center sleeve
- Dead center M.T. #5
- 2-way longitudinal z-axis power rapid traverse (S22100S and S22120S only)
- Leveling screws and pads
- Manual and parts list
- Steady rest with rollers
- 4-way tool post
- Face plate
- Halogen work light
- Chuck cover with limit switch
- Full length splash guard for S2240S, S2260S and S2280S only
- On-carriage splash guard for S22100S and S22120S only
- Manufacturer
- Specifications
- Custom Freight

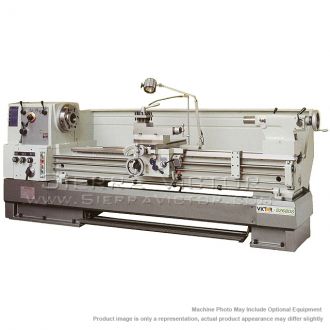

VICTOR 22 x 40 inch Precision Heavy Duty Lathe S2240S
STANDARD ACCESSORIES:
MACHINE INCLUDES:
ITEM: 22" x 40" Precision Heavy Duty Lathe
MANUFACTURER: VICTOR
MODEL: S2240S
Manufacturer:
Victor
Lathes
Lathe Size:
22" x 40"
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Precision
|
MODEL
|
S2240S
|
|
|
CAPACITY
|
Swing over bed:
|
22"
|
|
Swing over cross slide:
|
14-1/8"
|
|
|
Swing over gap:
|
29-3/8"
|
|
|
Bed width:
|
15-3/4"
|
|
|
Distance between centers:
|
40"
|
|
|
HEADSTOCK
|
Spindle bore diameter:
|
4.13"
|
|
Spindle bore taper:
|
M.T. #8
|
|
|
Taper of center in sleeve:
|
M.T. #5
|
|
|
Spindle nose:
|
D1-11
|
|
|
Number of spindle speeds:
|
12 Steps
|
|
|
Range of spindle speeds (rpm):
|
15 ~ 1,200 rpm
|
|
|
Speed selections:
|
15, 25, 35, 50, 85, 120, 160, 265, 375, 520, 860, 1200
|
|
|
THREADS & FEEDS
|
Range of longitudinal feeds:
|
0.0014” ~ 0.0387” /rev.
|
|
Range of cross feeds:
|
0.0007” ~ 0.01935”/rev.
|
|
|
Inch threads:
|
2 ~ 112 TPI x 60 kinds
|
|
|
Metric threads:
|
0.2 ~ 14 mm x 60 kinds
|
|
|
CARRIAGE
|
Cross slide travel:
|
12-1/2”
|
|
Compound slide travel:
|
10”
|
|
|
TAILSTOCK
|
Tailstock taper center:
|
M.T. #5
|
|
Tailstock quill travel:
|
6-5/16”
|
|
|
POWER
|
Main motor:
|
15 HP, 3 Phase
|
|
Coolant pump:
|
1/8 HP
|
|
|
WEIGHT & DIMENSIONS
|
Shipping dimensions (LxWxH):
|
101” x 45” x 67”
|
|
Gross weight: lbs.
|
4,972
|
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
