- Description
- Victor 3200RS series lathe is designed to provide outstanding performance and structural rigidity with 4-1/8" spindle bore and 20 HP main motor.
- 4-1/8" spindle bore with D1-11 camlock spindle nose
- The precision ground spindle is supported at three points by high precision bearings
- Heavily ribbed wide bed with induction hardened and precision ground bed ways for rigidity and low vibration

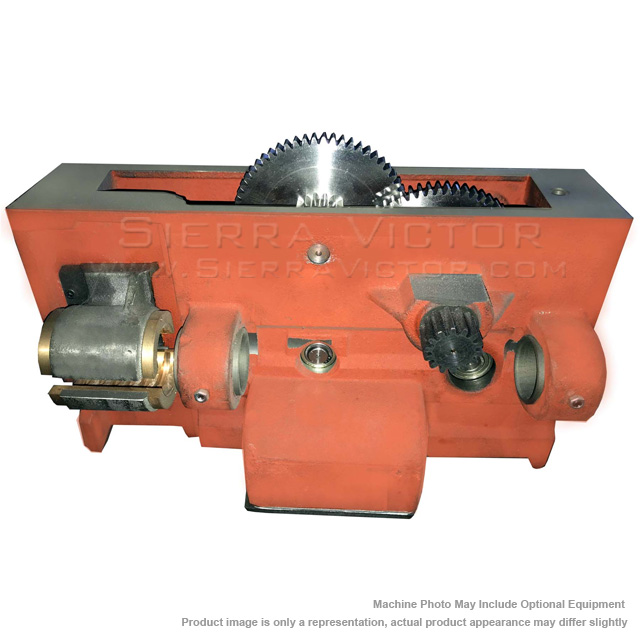

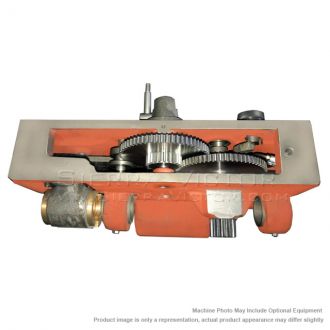

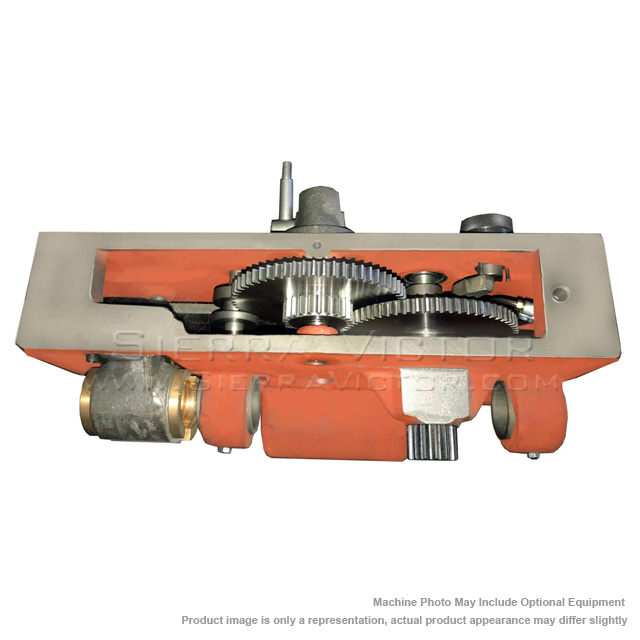

- Hardened and precision ground alloy steel gears and shafts

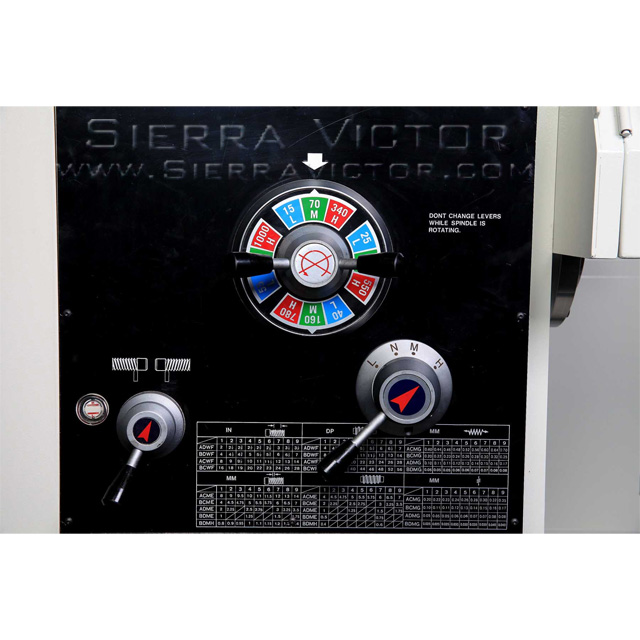

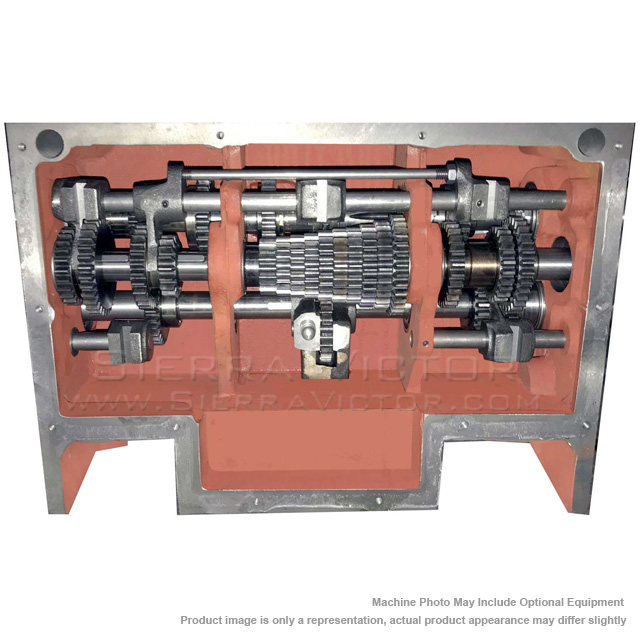

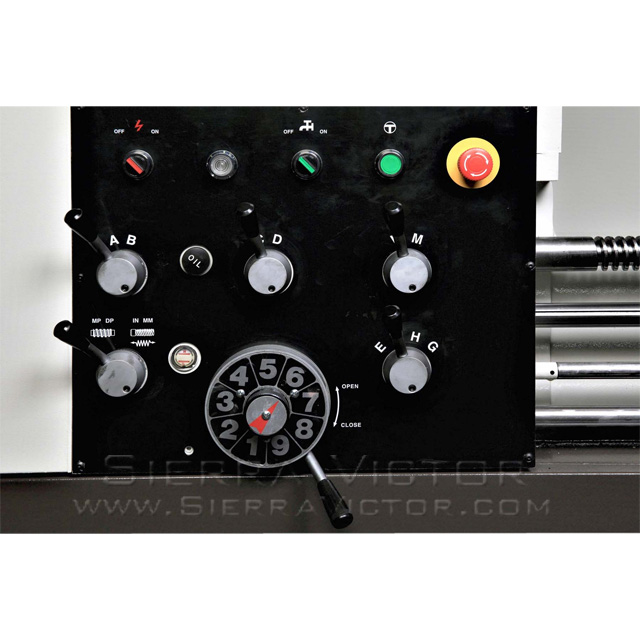

- Universal gearbox for inch, metric, D.P., and module threading without changing gears
- Automatic and manual dual mode lubrication system for slide ways
- Adjustable safety overload device

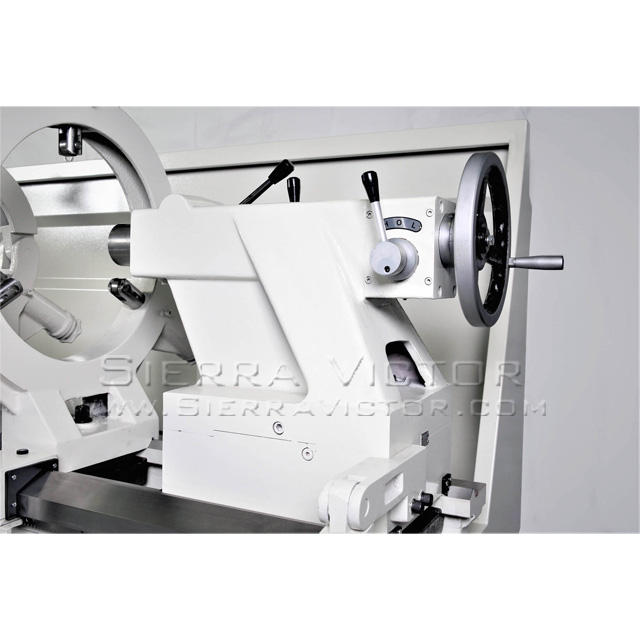

- Tailstock quill is equipped with 4:1 reduction gearing ratio to provide easy drilling operation
- Two-way longitudinal power rapid traverse on the model with 120" between centers or longer
- Automatic stopper for longitudinal feeds
- Center sleeve
- Dead center M.T. #5
- Threading dial indicator
- Coolant system
- Leveling screws and pads
- Tailstock with two-speed quill
- Removable gap
- Manual and parts list
- *Two-way power rapid traverse on model with 120" between centers or longer
- Steady rest with rollers

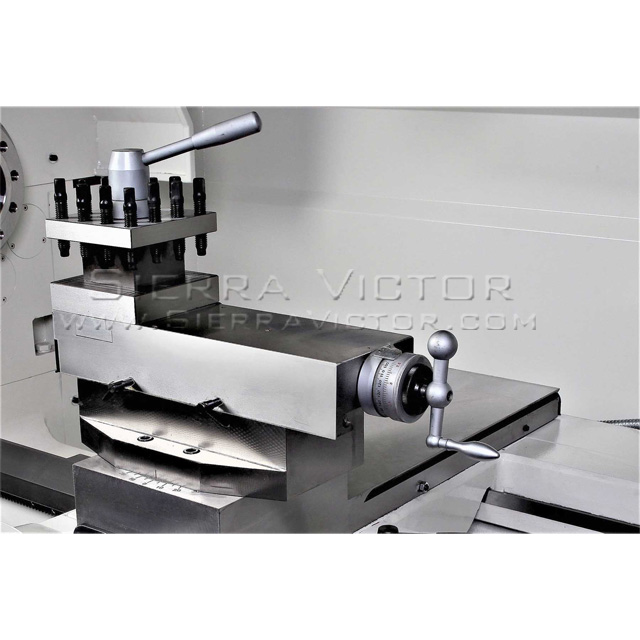

- 4-way tool post
- Halogen work light
- Chuck cover with limit switch
- Manufacturer
- Specifications
- Options/Accessories

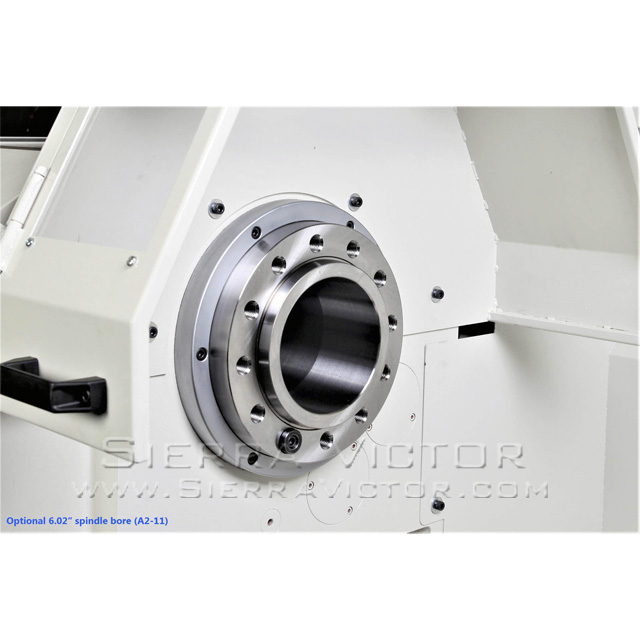

- 6.02” spindle bore (A2-11) upgrade
- 15” 3-jaw chuck (D1-11)
- 15” zero-set 3-jaw chuck with D1-11 back plate
- 15” zero-set 6-jaw chuck with D1-11 back plate
- 20” 3-jaw chuck (D1-11)
- 20” 4-jaw chuck (D1-11)
- 25” 4-jaw chuck (D1-11)
- Steady rest w/ rollers 17.50” (7.25” ~ 17.50” capacity)
- Steady rest w/ rollers 11.80” (3.25” ~ 11.80” capacity)
- Steady rest w/ rollers 24.00” (17” ~ 24” capacity)
- Follow rest
- Face plate 30” (D1-11)
- Micro carriage stop
- Live center M.T. #5
- Taper turning attachment
- Halogen work light
- On-carriage splash guard
- Full length splash guard
- Quick change tool set 1-1/4” (one tool post & 5 holders: #1,2,4,7,10)
- 2-way rapid traverse upgrade (factory install only)
- 4-way rapid traverse upgrade (factory install only)
- Custom Freight

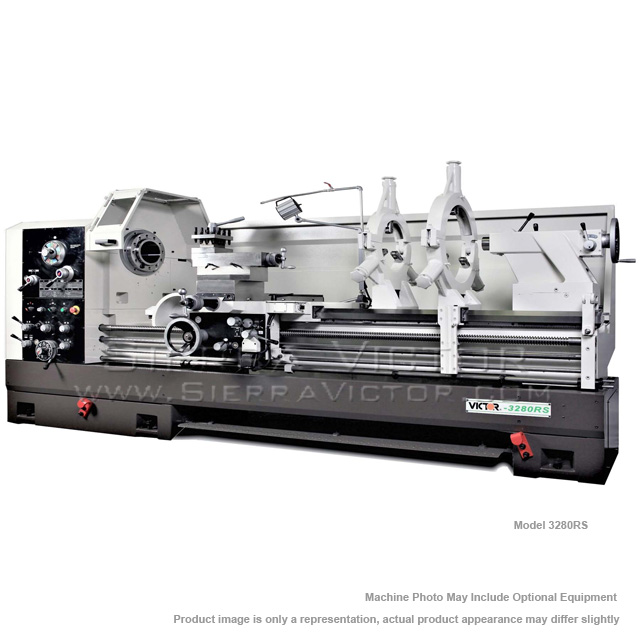

VICTOR 3200RS Series 32" x 60" - 240" Precision Heavy-Duty Lathes
STANDARD ACCESSORIES:
MACHINE INCLUDES:
ITEM: 32" x 60" - 240" Precision Heavy-Duty Lathes
MANUFACTURER: VICTOR
MODEL: 3260RS / 3280RS / 32120RS / 32160RS / 32200RS / 32240RS
Manufacturer:
Victor
Lathes
Lathe Size:
32" x 60"
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Precision
MODEL
|
3260RS
|
|
CAPACITY
|
Swing over bed:
|
32" |
Swing over cross slide:
|
23.50" |
|
Swing over gap:
|
44" |
|
Bed width:
|
18-1/8" |
|
Distance between centers:
|
59.06" |
|
HEADSTOCK
|
Spindle bore diameter:
|
4.13" (6.02" Opt.) |
Taper of center in sleeve:
|
M.T. #5 |
|
Spindle nose:
|
D1-11 Camlock (Opt. 6.02" bore is A2-11) |
|
Number of spindle speeds:
|
12 Steps |
|
Range of spindle speeds (rpm):
|
15 ~ 1,000 rpm |
|
THREADS & FEEDS
|
Range of longitudinal feeds:
|
0.0020" ~ 0.0276"/rev. |
Range of cross feeds:
|
0.0010" ~ 0.0138"/rev. |
|
Inch threads:
|
2 ~ 28 TPI x 36 kinds |
|
Metric threads:
|
0.8 ~ 14 mm x 38 kinds |
|
CARRIAGE
|
Cross slide travel:
|
16-1/2" |
Compound slide travel:
|
10" |
|
TAILSTOCK
|
Tailstock taper center:
|
M.T. #5 |
Tailstock quill travel:
|
9" |
|
POWER
|
Main motor:
|
20 HP, 3 Phase |
Coolant pump:
|
1/8 HP |
|
WEIGHT & DIMENSIONS
|
Shipping dimensions (LxWxH):
|
136" x 52" x 71" |
Gross weight: lbs.
|
7,280 lbs. |
MODEL
| 3280RS | |
CAPACITY
| Swing over bed:
| 32" |
Swing over cross slide:
| 23.50" | |
Swing over gap:
| 44" | |
Bed width:
| 18-1/8" | |
Distance between centers:
| 78.74" | |
HEADSTOCK
| Spindle bore diameter:
| 4.13" (6.02" Opt.) |
Taper of center in sleeve:
| M.T. #5 | |
Spindle nose:
| D1-11 Camlock (Opt. 6.02" bore is A2-11) | |
Number of spindle speeds:
| 12 Steps | |
Range of spindle speeds (rpm):
| 15 ~ 1,000 rpm | |
THREADS & FEEDS
| Range of longitudinal feeds:
| 0.0020" ~ 0.0276"/rev. |
Range of cross feeds:
| 0.0010" ~ 0.0138"/rev. | |
Inch threads:
| 2 ~ 28 TPI x 36 kinds | |
Metric threads:
| 0.8 ~ 14 mm x 38 kinds | |
CARRIAGE
| Cross slide travel:
| 16-1/2" |
Compound slide travel:
| 10" | |
TAILSTOCK
| Tailstock taper center:
| M.T. #5 |
Tailstock quill travel:
| 9" | |
POWER
| Main motor:
| 20 HP, 3 Phase |
Coolant pump:
| 1/8 HP | |
WEIGHT & DIMENSIONS
| Shipping dimensions (LxWxH):
| 156" x 52" x 71" |
Gross weight: lbs.
| 7,940 lbs. |
MODEL | 32120RS | |
CAPACITY | Swing over bed: | 32" |
Swing over cross slide: | 23.50" | |
Swing over gap: | 44" | |
Bed width: | 18-1/8" | |
Distance between centers: | 118.11" | |
HEADSTOCK | Spindle bore diameter: | 4.13" (6.02" Opt.) |
Taper of center in sleeve: | M.T. #5 | |
Spindle nose: | D1-11 Camlock (Opt. 6.02" bore is A2-11) | |
Number of spindle speeds: | 12 Steps | |
Range of spindle speeds (rpm): | 15 ~ 1,000 rpm | |
THREADS & FEEDS | Range of longitudinal feeds: | 0.0020" ~ 0.0276"/rev. |
Range of cross feeds: | 0.0010" ~ 0.0138"/rev. | |
Inch threads: | 2 ~ 28 TPI x 36 kinds | |
Metric threads: | 0.8 ~ 14 mm x 38 kinds | |
CARRIAGE | Cross slide travel: | 16-1/2" |
Compound slide travel: | 10" | |
TAILSTOCK | Tailstock taper center: | M.T. #5 |
Tailstock quill travel: | 9" | |
POWER | Main motor: | 20 HP, 3 Phase |
Coolant pump: | 1/8 HP | |
WEIGHT & DIMENSIONS | Shipping dimensions (LxWxH): | 197" x 52" x 71" |
Gross weight: lbs. | 9,480 lbs. |
MODEL
| 32160RS | |
CAPACITY
| Swing over bed:
| 32" |
Swing over cross slide:
| 23.50" | |
Swing over gap:
| 44" | |
Bed width:
| 18-1/8" | |
Distance between centers:
| 157.48" | |
HEADSTOCK
| Spindle bore diameter:
| 4.13" (6.02" Opt.) |
Taper of center in sleeve:
| M.T. #5 | |
Spindle nose:
| D1-11 Camlock (Opt. 6.02" bore is A2-11) | |
Number of spindle speeds:
| 12 Steps | |
Range of spindle speeds (rpm):
| 15 ~ 1,000 rpm | |
THREADS & FEEDS
| Range of longitudinal feeds:
| 0.0020" ~ 0.0276"/rev. |
Range of cross feeds:
| 0.0010" ~ 0.0138"/rev. | |
Inch threads:
| 2 ~ 28 TPI x 36 kinds | |
Metric threads:
| 0.8 ~ 14 mm x 38 kinds | |
CARRIAGE
| Cross slide travel:
| 16-1/2" |
Compound slide travel:
| 10" | |
TAILSTOCK
| Tailstock taper center:
| M.T. #5 |
Tailstock quill travel:
| 9" | |
POWER
| Main motor:
| 20 HP, 3 Phase |
Coolant pump:
| 1/8 HP | |
WEIGHT & DIMENSIONS
| Shipping dimensions (LxWxH):
| 237" x 52" x 71" |
Gross weight: lbs.
| 10,800 lbs. |
MODEL | 32200RS | |
CAPACITY | Swing over bed: | 32" |
Swing over cross slide: | 23.50" | |
Swing over gap: | 44" | |
Bed width: | 18-1/8" | |
Distance between centers: | 196.85" | |
HEADSTOCK | Spindle bore diameter: | 4.13" (6.02" Opt.) |
Taper of center in sleeve: | M.T. #5 | |
Spindle nose: | D1-11 Camlock (Opt. 6.02" bore is A2-11) | |
Number of spindle speeds: | 12 Steps | |
Range of spindle speeds (rpm): | 15 ~ 1,000 rpm | |
THREADS & FEEDS | Range of longitudinal feeds: | 0.0020" ~ 0.0276"/rev. |
Range of cross feeds: | 0.0010" ~ 0.0138"/rev. | |
Inch threads: | 2 ~ 28 TPI x 36 kinds | |
Metric threads: | 0.8 ~ 14 mm x 38 kinds | |
CARRIAGE | Cross slide travel: | 16-1/2" |
Compound slide travel: | 10" | |
TAILSTOCK | Tailstock taper center: | M.T. #5 |
Tailstock quill travel: | 9" | |
POWER | Main motor: | 20 HP, 3 Phase |
Coolant pump: | 1/8 HP | |
WEIGHT & DIMENSIONS | Shipping dimensions (LxWxH): | 276" x 52" x 71" |
Gross weight: lbs. | 12,130 lbs. |
MODEL
| 32240RS | |
CAPACITY
| Swing over bed:
| 32" |
Swing over cross slide:
| 23.50" | |
Swing over gap:
| 44" | |
Bed width:
| 18-1/8" | |
Distance between centers:
| 236.22" | |
HEADSTOCK
| Spindle bore diameter:
| 4.13" (6.02" Opt.) |
Taper of center in sleeve:
| M.T. #5 | |
Spindle nose:
| D1-11 Camlock (Opt. 6.02" bore is A2-11) | |
Number of spindle speeds:
| 12 Steps | |
Range of spindle speeds (rpm):
| 15 ~ 1,000 rpm | |
THREADS & FEEDS
| Range of longitudinal feeds:
| 0.0020" ~ 0.0276"/rev. |
Range of cross feeds:
| 0.0010" ~ 0.0138"/rev. | |
Inch threads:
| 2 ~ 28 TPI x 36 kinds | |
Metric threads:
| 0.8 ~ 14 mm x 38 kinds | |
CARRIAGE
| Cross slide travel:
| 16-1/2" |
Compound slide travel:
| 10" | |
TAILSTOCK
| Tailstock taper center:
| M.T. #5 |
Tailstock quill travel:
| 9" | |
POWER
| Main motor:
| 20 HP, 3 Phase |
Coolant pump:
| 1/8 HP | |
WEIGHT & DIMENSIONS
| Shipping dimensions (LxWxH):
| 315" x 52" x 71" |
Gross weight: lbs.
| 13,450 lbs. |
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
