- Description
- High performance precision heavy-duty lathe with rigid one piece Meehanite casting bed provides superior accuracy, durability, and reliability. Exceptional high quality construction results in stability and consistency.
- One piece heavy-duty cast iron base with special exit for chips removal
- Oversized rigid compound rest for heavy cutting
- Hardened and precision ground gears and bedways
- Hardened and ground spindle nose
- Full Meehanite casting bed
- Headstock transmission gears driven by spline shafts
- Spindle is supported at 3 points by precision bearings
- Safety overload device
- Inch/metric threading without changing gears
- 7.5 HP main motor delivers full power at all 12 speeds
- Removable gap
- Tailstock
- Coolant system
- Chuck cover with limit switch
- Full length foot brake
- D.P. / module thread change gears
- Threading dial indicator
- Center sleeve
- Dead center M.T. #4
- Leveling screws and pads
- Manual and parts list
- Manufacturer
- Specifications
- Options/Accessories
- 8" 3-jaw chuck
- Steady rest with rollers
- Follow rest
- 4-way tool post
- Face plate
- Full length splash guard
- Halogen work light
- Chuck cover with limit switch
- Custom Freight

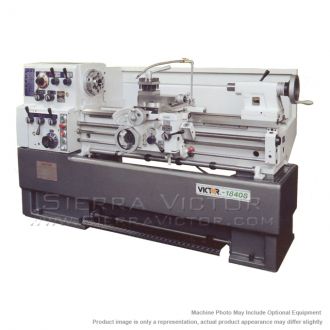

VICTOR 18 x 40 inch Precision Heavy-Duty Lathe 1840S
STANDARD EQUIPMENT:
ITEM: 18" x 40" Precision Heavy-Duty Lathe
MANUFACTURER: VICTOR
MODEL: 1840S
Manufacturer:
Victor
Lathes
Lathe Size:
18" x 40"
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Precision
|
MODEL
|
1840S
|
|
|
CAPACITY
|
Swing over bed:
|
18"
|
|
Swing over cross slide:
|
11-5/16"
|
|
|
Swing over gap:
|
25-3/16"
|
|
|
Bed width:
|
11-3/16"
|
|
|
Distance between centers:
|
40"
|
|
|
HEADSTOCK
|
Spindle bore diameter:
|
2.37"
|
|
Spindle bore taper:
|
M.T. #6
|
|
|
Taper of center in sleeve:
|
M.T. #4
|
|
|
Spindle nose:
|
D1-6
|
|
|
Number of spindle speeds:
|
12 Steps
|
|
|
Range of spindle speeds (rpm):
|
30 ~ 2,000 rpm
|
|
|
Speed selections:
|
30, 55, 70, 95, 160, 200, 325, 540, 700, 1000, 1600, 2000
|
|
|
THREADS & FEEDS
|
Range of longitudinal feeds:
|
0.0012” ~ 0.0252”/rev.
|
|
Range of cross feeds:
|
0.0006” ~ 0.0126”/rev.
|
|
|
Inch threads:
|
2 ~ 56 TPI x 40 kinds
|
|
|
Metric threads:
|
0.4 ~ 14 mm x 52 kinds
|
|
|
CARRIAGE
|
Cross slide travel:
|
9”
|
|
Compound slide travel:
|
4-3/4”
|
|
|
TAILSTOCK
|
Tailstock taper center:
|
M.T. #4
|
|
Tailstock quill travel:
|
5-9/10”
|
|
|
POWER
|
Main motor:
|
7.5 HP, 3 Phase
|
|
Coolant pump:
|
1/8 HP
|
|
|
WEIGHT & DIMENSIONS
|
Shipping dimensions (LxWxH):
|
89” x 40” x 61”
|
|
Gross weight:
|
4,400 lbs.
|
Design and Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
