- Description

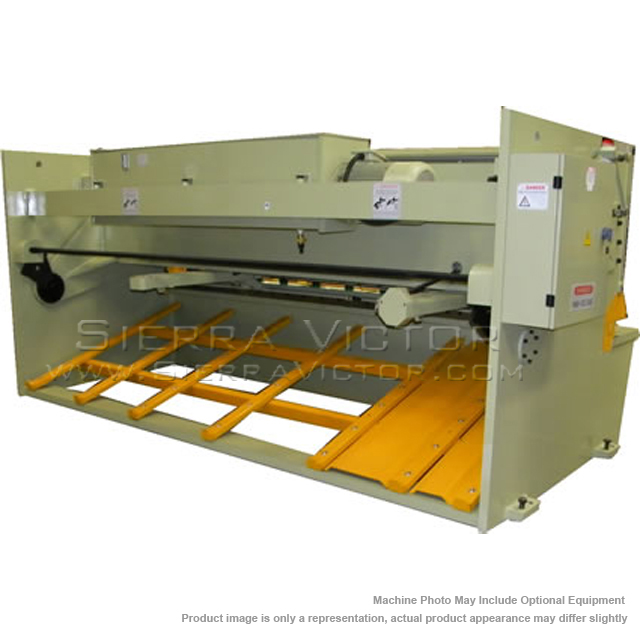

- Material drop/support chute (This device makes it easier to retrieve sheared drops and is normally required by customers) - Included in Price
- Squaring Arm with inlaid scale, 39”
- Bolt on table segments...quantity of 3
- High Carbon, High Chrome Shear Blades
- Hold-downs faced w/anti-mar neoprene
- Ball Transfers on Each Table Segment
- Swing Beam Design
- Manual Quick Change Blade Gap Adj.
- Pressure Sensing Hold Downs
- Squaring Arm, 39” from blade to end
- Electric Stroke Adjustment
- Stroke Counter
- Operator Control Console
- Front-operated Power Back Gauge with DRO
- Shadow Line with LED lighting
- Blade Guard, Micro Switch Protected
- Low Noise Gear Pump
- Hydraulic, Electrical Overload Protection
- Support Arms Include
- Automatic Swing-up on Back Gauge
- 6CrW2Si blades for cutting mild carbon steel
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight
- Video

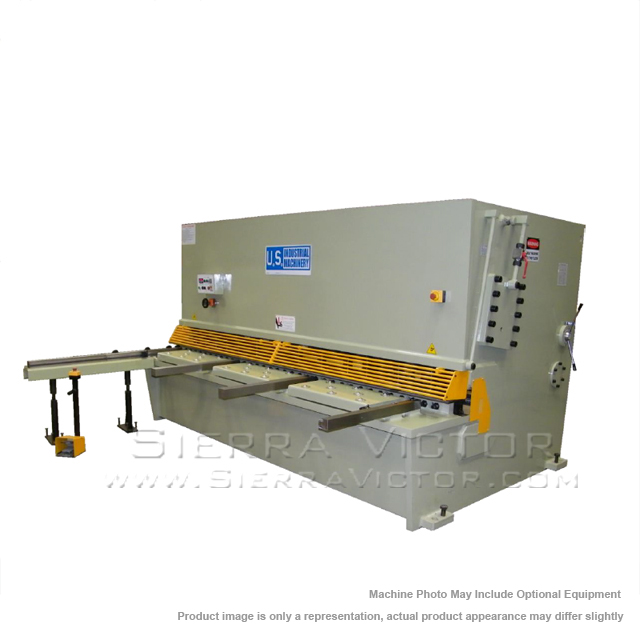

U.S. INDUSTRIAL 10 ft x 1/2 inch Hydraulic Shear US10500
Our manual control hydraulic shears offer easy configuration to cut materials of varying thickness with stroke length adjustments as well.
EQUIPPED WITH:
ITEM: 10' x 1/2" Hydraulic Shear
MANUFACTURER: U.S. INDUSTRIAL
MODEL: US 10500
Manufacturer:
US Industrial
Machine Type
Machine Category:
Shears
Power Source:
Hydraulic
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
1/2"
Stainless Steel Capacity:
1/4"
|
Sheet size |
126" |
Shearing capacity - Mild Steel |
1/2” Mild Steel @ 65,000 PSI UTS |
Shearing capacity - Stainless Steel |
1/4” Stainless Steel @ 95,000 PSI UTS (Must consider option for Cr12MoV blades.) |
|
Shear angle |
1°48' |
|
No load strokes |
10 |
|
Throat depth |
4.7" |
|
Adjustment range of back gauge |
0.75" - 36" |
Hydraulic Oil Capacity |
87 Gal |
|
Motor |
25 HP, 220 or 440 Volts, 3 phase (specify) |
|
Dimensions |
159" x 80" x 70" |
|
Weight approx. |
26,455 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
ITEM |
3-axis CNC programmable back gauge: Touch-screen operated. Controls back gauge depth, blade gap and stroke length. It has a 200 program storage capacity, each program up to 20 steps, and it can be operated in manual or automatic mode. |
Upgrade to Pneumatic Sheet Support AND Material drop chute |
Upgrade to 6-Foot Squaring Arm with inlaid scale |
Upgrade to 8-Foot Squaring Arm with inlaid scale |
Upgrade to 10-Foot Squaring Arm with inlaid scale |
Upgrade Cr12MoV blades for cutting up to 1/8” thick stainless |
Upgrade to 48” Back Gauge; no swing up |
Training in our Memphis, TN Showroom |
Training at customer site, less than 300 miles from Memphis |
Training at customer site, more than 300 miles from Memphis |
Training outside continental USA - Please Call for Quote |
