- Description
- Squaring Arm with inlaid scale, 39”
- Low Noise Gear Pump
- High Carbon, High Chrome Shear Blades
- Hold-downs faced w/anti-mar neoprene
- Hydraulic, Electrical Overload Protection
- Swing Beam Design
- Pressure Sensing Hold Downs
- Support Arms Included
- Squaring Arm, 39” from blade to end
- Electric Stroke Adjustment
- Stroke Counter

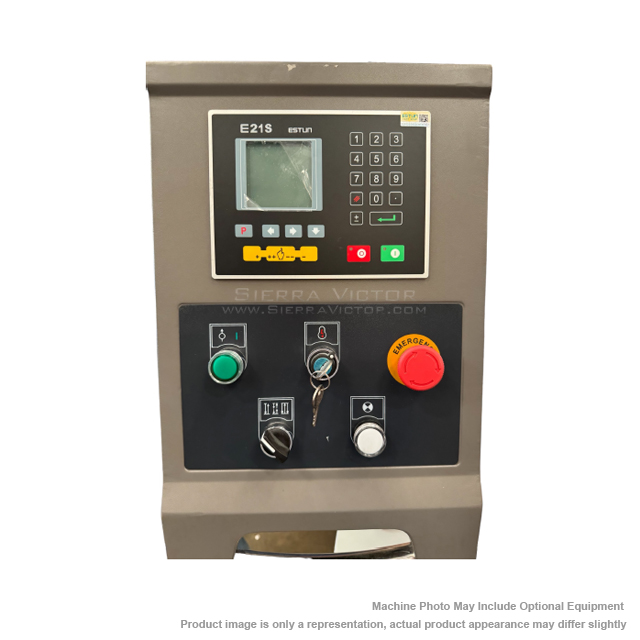

- Operator Control Console
- Numerically controlled controller
- Rear Safety Guard
- Blade Guard
- Moveable Foot Pedal
- Bed Infill Plates w/ Ball Transfers
- Cutting Illumination
- Manufacturer
- Specifications
- Custom Freight

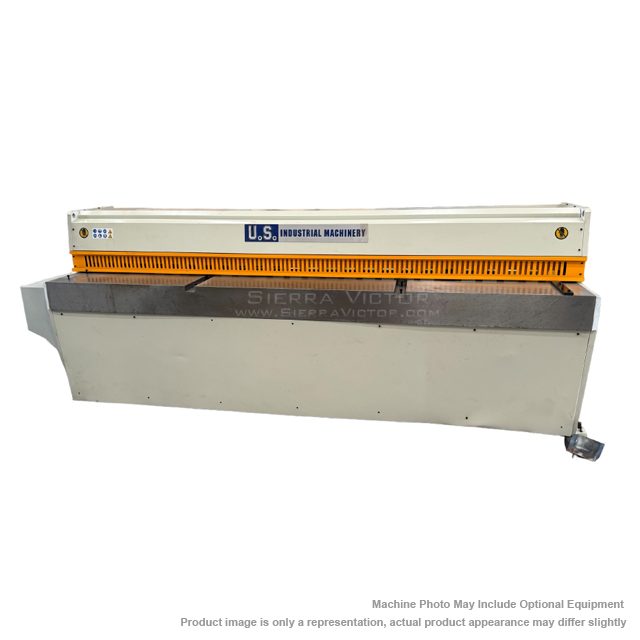

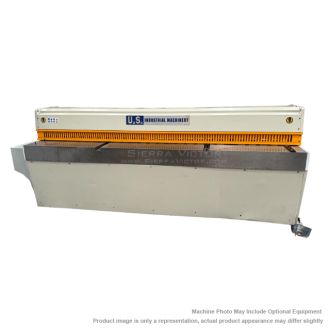

U.S. INDUSTRIAL 10 ft x 12 gauge Mechanical Shear US1012
ITEM: 10 ft x 12 gauge Mechanical Shear
MANUFACTURER: U.S. INDUSTRIAL
MODEL: US1012
Manufacturer:
US Industrial
Machine Type
Machine Category:
Shears
Machine Sub-Category:
Mechanical
Material Type:
Metal
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
12 ga
Max Sheet Size |
120 in. |
Max Shearing Capacity |
12 Gauge Mild Steel @ 65,000 PSI UTS 1 |
Shear Angle |
1Degree 30 |
No Load Strokes |
47 per minute |
Adjustment Range of Back Gauge |
0.75 - 36 in. |
Main Motor |
15 HP, 220 or 440 Volts, 3-phase (Please specify your voltage requirement.) |
Net Weight |
8,709 lbs. |
Dimensions (L x W x H) |
143 x 89 x 55 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
