- Description
- Morse Taper 4 Spindle
- Two side box work table, t-slotted
- T-slotted base
- Flood Coolant System
- Power Arm Elevation
- Manual Arm Clamp
- High Precision, Low Noise Ground Gears
- 9.4” + drilling depth
- Box Shape Worktable
- Taper Sleeve
- Tool Releasing Wrench
- Drift
- Eyelit Bolts
- Manufacturer
- Specifications
- Custom Freight

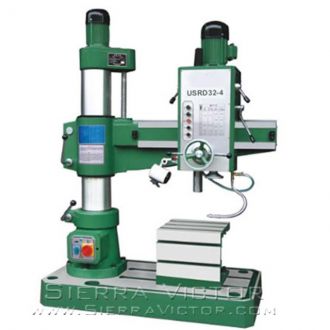

U.S. INDUSTRIAL 1.5 inch Radial Arm Drill Press USRD32-4
STANDARD ACCESSORIES:
ITEM: 1.5" Radial Arm Drill Press
MANUFACTURER: U.S. INDUSTRIAL
MODEL: USRD32-4
Manufacturer:
US Industrial
Machine Type
Machine Category:
Radial Arm Drills
|
Drilling Capacity
|
1.5”
|
|
Minimum and Maximum spindle to column
|
12.6” to 32”
|
|
Diameter of column
|
7.87”
|
|
Spindle
|
Morse Taper 4
|
|
Spindle Travel
|
9.4”
|
|
Spindle speeds (6 speed gear driven)
|
75 to 1,220 RPM
|
|
Spindle feeds in Inches Per Revolution
(3 feeds) |
.0039” to .010”
|
|
Minimum and Maximum
distance spindle to base |
4.72” to 33.85”
|
|
Box Table dimensions
|
15.75” x 15.75” x 13.75”
|
|
Base dimensions
|
53.9” x 27.5” x 6.3”
|
|
Overall dimensions
|
55.4” x 28.3” x 74.2”
|
|
Main spindle drive
|
2 HP
(208-240 OR 440-480 Volts, 3 phase) |
|
Gross Weight
|
3,135 lbs. (Net Weight: 2,640 lbs.)
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
