- Description
- U.S. Industrial’s Proprietary Press Brake CNC software required for Y1/Y2, and additional programmable axis, Y1 and Y2 CNC controlled axes, R-Axis controlling back gauge height, CNC controlled servo back gauge axis, Fiessler laser, Quick change punch clamps, Four back gauge fingers mounted on two linear rails with internal ball trucks.
- Ram Deflection Adjustment
- Setting for ram speed slowdown and return position CNC controlled
- Forged Heavy-Duty Cylinder and Cylinder Body
- All Steel Construction
- Three Speed Ram
- Rapid Approach, Bending Cycle and Rapid Retreat
- Bottom Time Delay
- Inching, Single Cycle and Auto Run
- Ram takes standard American Tang Tooling (1/2” x 5/8”) and American Safety Tang Tooling, and Z1
- Space between Ram Tool Clamps allows for deep box bending
- CNC Precision Ground Punch and CNC Die
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight
- Video

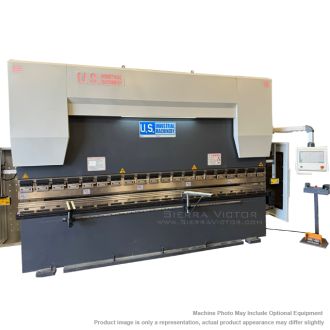

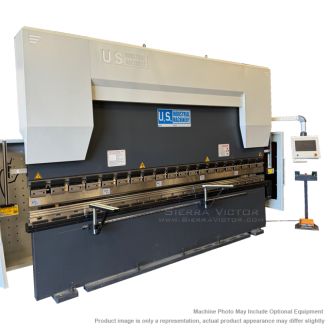

U.S. INDUSTRIAL USY220-13 220 ton x 13 ft Hydraulic Press Brake w/ Y1/Y2 Configuration USY220-13
STANDARD EQUIPMENT:
ITEM: 220 ton x 13 ft Hydraulic Press Brake w/ Y1/Y2 Configuration
MANUFACTURER: U.S. INDUSTRIAL
MODEL: USY220-13
Manufacturer:
US Industrial
Machine Type
Machine Category:
Press Brakes
Control:
CNC
Power Source:
Hydraulic
Metalworking
Pressure:
220+ Tons
Material Length:
13 ft (156 in.+)
Working Pressure |
220 Tons |
Length of Working Table |
157.4 in. |
Distance Between Housings |
129.9 in. |
Throat Depth |
15.74 in. |
Ram Travel |
7.87 in. |
Open Height |
20.86 in. |
Rapid Ram Travel Speed |
6.29 in./sec. |
Rapid Ram Retreat Speed |
4.72 in./sec. |
Backgauge Travel |
24 in. |
Pressing Speed |
Dependent on Tool Load |
Motor Horsepower |
20 HP, 220 or 440 Volts, 3 ph |
Net Weight |
29,762 lbs. |
Length |
199 in. |
Width |
78 in. |
Height |
111 in. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
ITEM |
PRICE
|

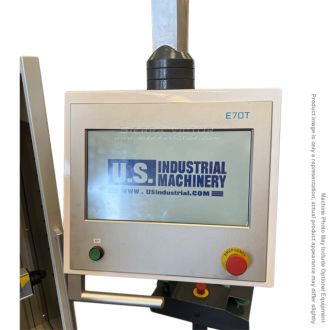

CNC 2-Axis Color Graphic Control: U.S. Industrial Model 2000 for Y1, Y2and Multi-Axis Press Brakes |
Included |
Fiessler Akas II Laser Guarding |
Included |
Add Third Axis (Back gauge height controlled from operator panel- R Axis) Above |
Included |
CNC Controlled Mechanical Auto Crown |
Included |
Upgrade to Cam-Lever Quick Action Ram Clamps |
Included |
High Speed Servo Back Gauge |
Included |
Training in our Memphis, TN Facility |
No Charge |
Training at customer site, less than 300 miles from Memphis |
$CALL |
Training at customer site, more than 300 miles from Memphis: (If outside continental USA, please call for quote.) |
$CALL |
