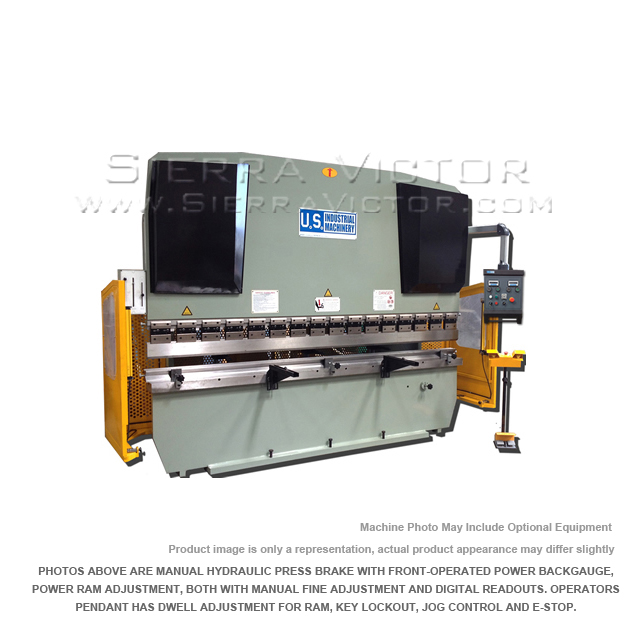

U.S. INDUSTRIAL 200 Ton x 13 ft Hydraulic Manual Press Brake with Front Operated Power Backgauge and Power Ram Adjust USHB200-13HM

• For industries and jobs that don’t require the detail and precision achieved with CNC controls, our manual control press brakes offer ease of use when you’re looking to keep things simple. The manual press brakes have all the same safety features of the CNC models, manual press brakes are powerful machines that are easy to get started on and great for more straightforward jobs. They include a front-operated power back-gauge and ram adjust with digital readouts and fine adjustment handwheels for both. Our models range from 22 tons to 440 tons.
• Power Front Operated Back Gauge, motorized with fine adjustment handwheel
• Power Ram Depth Control, motorized with fine adjustment handwheel

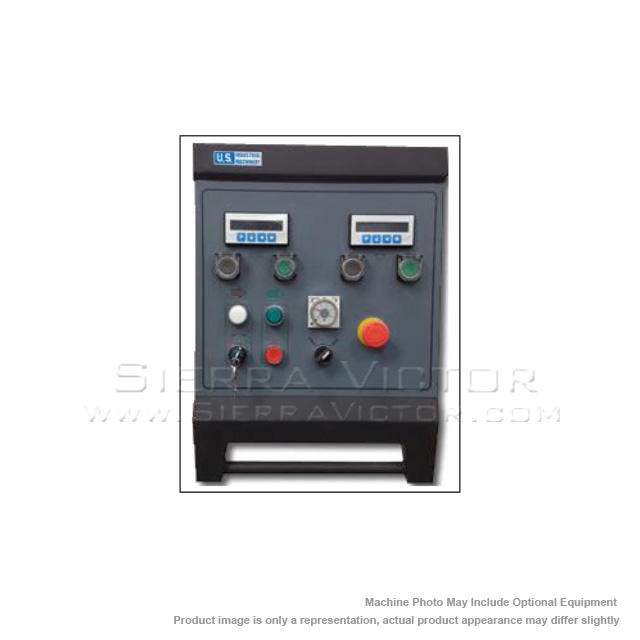

• Digital Displays for backgauge position and ram position
• All Steel Construction
• Sick 4000 Light Curtain

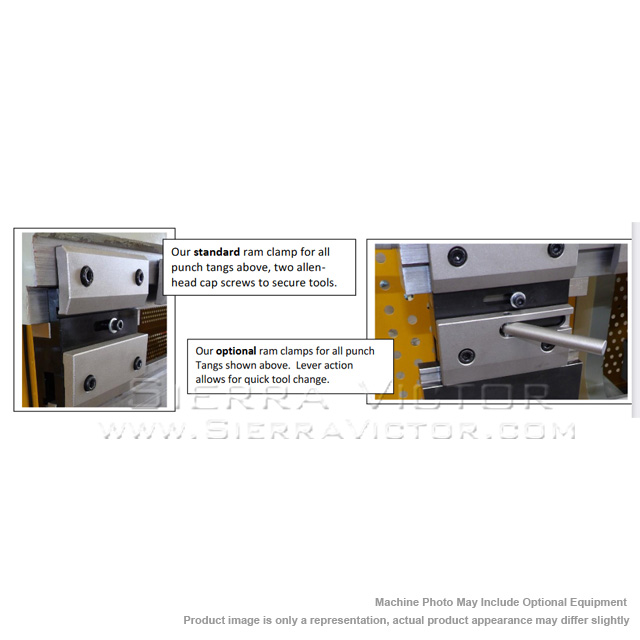

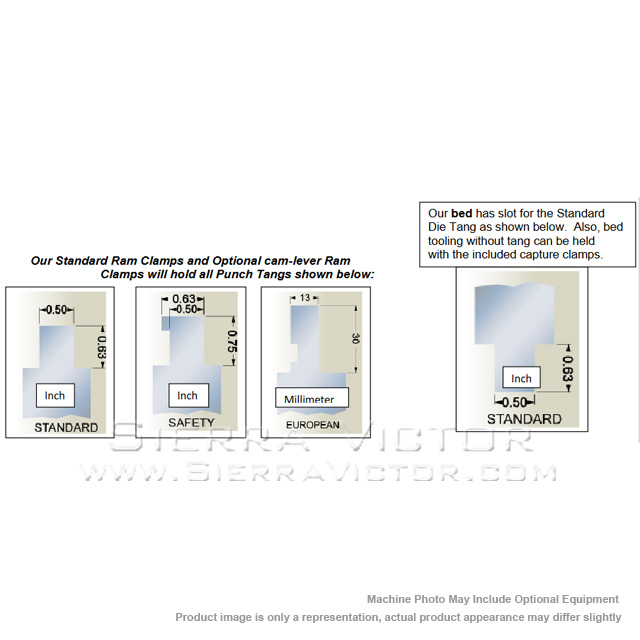

• Ram accepts standard American Tang tooling, 1/2” x 5/8”
• Space between Ram Tool Clamps allows for deep box bending
• Bed has slot for standard American Tang tooling
• Bed also has capture clamps for tooling without tang

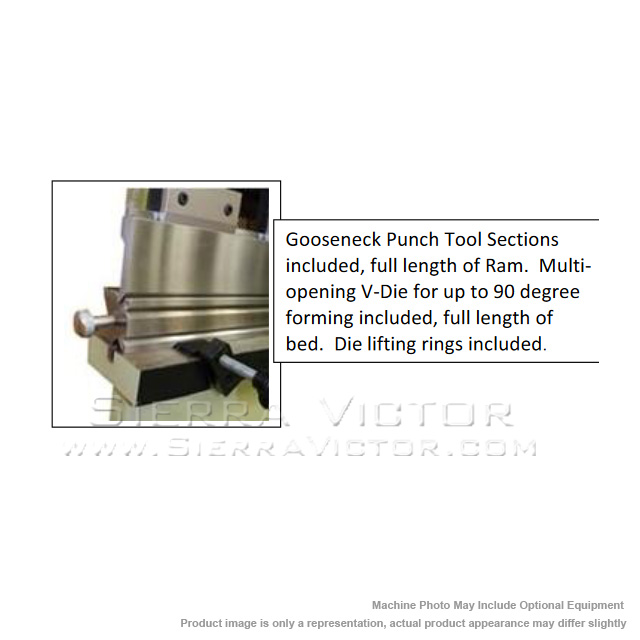

• Free Gooseneck Punch and multi-opening Die for up to 90° forming in 10 gauge mild steel (Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. ­There is NO warranty on these items.)

EQUIPPED WITH:

• Sick 4000 Light Curtain
• Manual Bed Crowning Device
