Due to current tariff policies ALL USI products are
CALL FOR PRICE and AVAILABILITY
- Description
- Our CNC control hydraulic press brakes offer users the ability to tackle any project with precision, speed, and volume. These machines can handle the most demanding jobs with impeccable details. The capability to use a removable USB drive means that additional program storage is virtually limitless. Other key features include: 6” LCD touchscreen to control the bend angle and back-gauge position, 10 bends per program or cross-section, Up to 20 punch library and up to 50 die library, Auto bend sequence, Auto back-gauge retract, Spread length, Interference bend chart, Calculated bend allowance, Programmable ram dwell And more.
- Ram Deflection Adjustment
- Massive Torsion Bar for Parallelism
- Three Speed Ram
- Bottom Time Delay
- Inching, Single Cycle and Auto Run
- Setting for ram speed slowdown and rapid return position
- Forged Heavy Duty Cylinder and Cylinder Body
- Rapid Approach, Bending Cycle and Rapid Retreat
- All Steel Construction
- Bed tools are held with standard slot for ½” x 5/8” tang w/set screws, plus die clamps are included

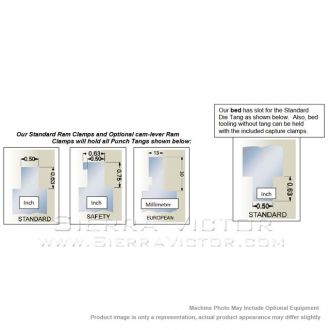

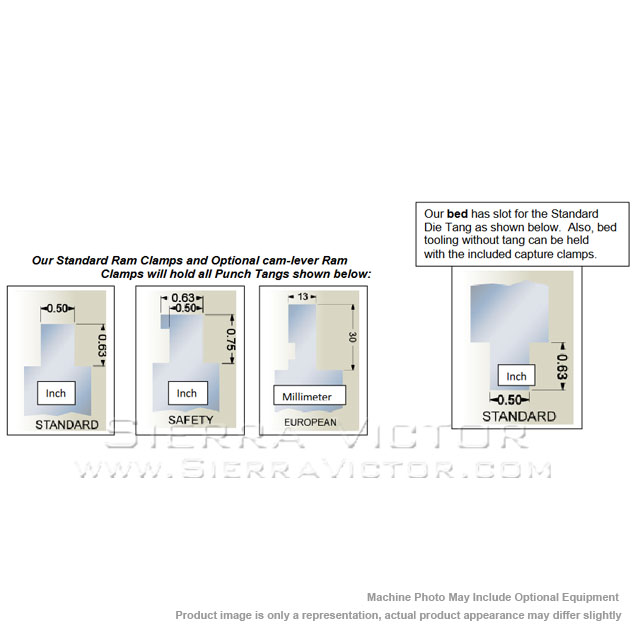

- Ram takes standard American Tang Tooling (1/2” x 5/8”) and American Safety Tang Tooling, and Z1
- Space between Ram Tool Clamps allows for deep box bending

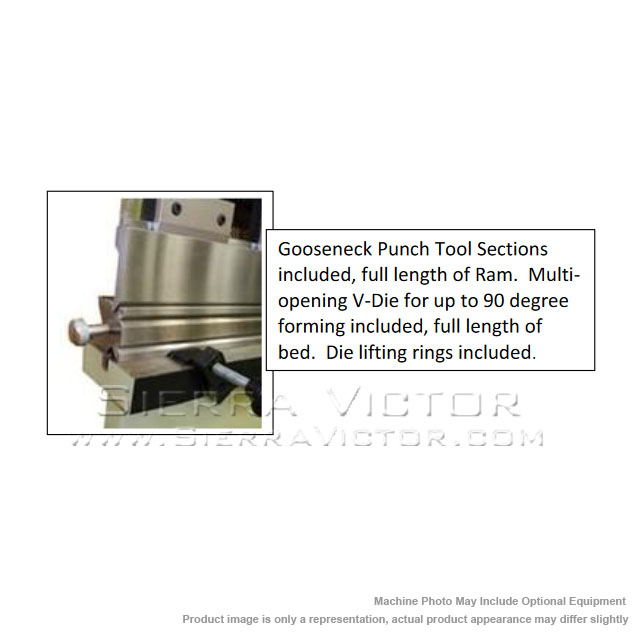

- Free Gooseneck Punch and multi-opening Die for up to 90° forming up to 10-gauge mild steel. *Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. *There is no warranty on this tooling.

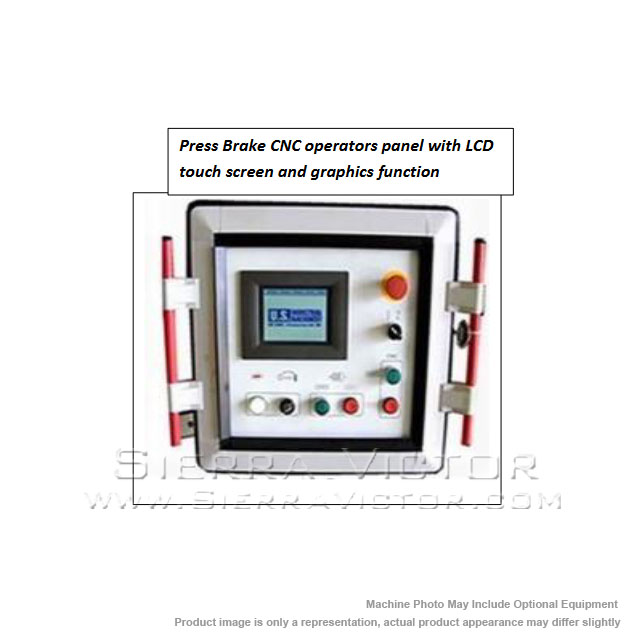

- CNC 2-Axis Color Graphic Computer Control
- Sick de Tec 4 light curtain system
- NOTE: These items are STANDARD and included in price
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight
- Video

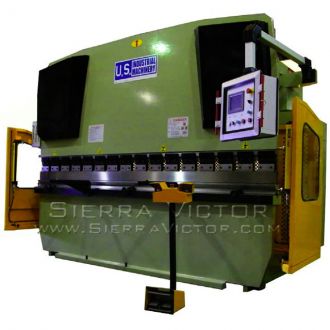

U.S. INDUSTRIAL 125 Ton x 10' CNC Hydraulic Press Brake USHB125-10
EQUIPPED WITH:
ITEM: 10' x 125 Ton CNC Hydraulic Press Brake
MANUFACTURER: U.S. INDUSTRIAL
MODEL: USHB125-10
Manufacturer:
US Industrial
Machine Type
Machine Category:
Press Brakes
Control:
CNC
Power Source:
Hydraulic
Metalworking
Pressure:
125+ Tons
Material Length:
10 ft (120 in.+)
MODEL
|
USHB125-10
|
Working pressure
|
125 tons
|
Length of working table
|
125.9"
|
Distance between housings
|
106.2"
|
Throat depth
|
12.5"
|
Stroke adjustment of ram
|
2.36"
|
Ram travel
|
5.5"
|
Open height
|
15.9"
|
Rapid Ram Travel Speed |
2.4”/sec. |
Rapid Ram Retreat Speed |
2.0”/sec. |
Pressing Speed |
Dependent on Tool Load |
Backgauge Travel
|
24"
|
Hydraulic oil capacity |
79 gals. |
Motor |
10 HP, 220 or 440V, 3 ph |
Dimensions |
148" x 64" x 101" |
Weight approx. |
18,739 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICE:
ITEM |
CNC 2-Axis Color Graphic Control: Controls BOTH Bend Angle and Backgauge Position. Comes with 6” LCD touch screen. Code and Graphic programming included. Graphic allows 10 bends per program/cross-section. Controls features a tool library, Metric/inch switchable, Auto bend sequence, Auto retract of Backgauge, Spread length, Interference bend alert, Calculated bend allowance, Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup |
Upgrade to Fiessler Akas II Laser Guarding (Substitute for Sick deTec 4) |
Upgrade to Pilz PSENvip LED Safety Guarding: (Substitute for deTec 4) |
Add Third Axis (Back Gauge Height controlled from operator panel.) |
CNC Controlled Mechanical Auto Crown |
High Speed Servo Back Gauge |

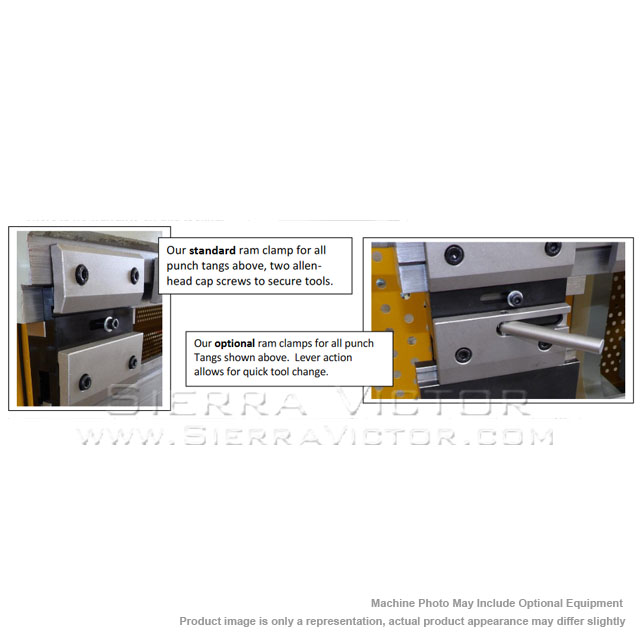

Upgrade to Cam-Lever Quick Action Ram Clamps |
Training in our Memphis, TN Facility |
Training at customer site, more than 300 miles from Memphis |
Training at customer site, more than 300 miles from Memphis (If outside continental USA, please call for quote.) |
