- Description
- KIT PACKAGE ONLY:
- Large 10” x 54” table with 3 T-slots, 5/8”, on 2.5” centers, Table travel is 37.4”. Leadscrew pitch is 5TPI with dials on each end graduated in .001”.
- Large knee allows saddle to travel 16.5” for crossfeed with .001” dial graduations
- Large knee travel is 16.5” with 10TPI leadscrew, .001” dial graduations
- Large ram allows for over 18.5” of travel, inlaid scale, and deep throat for large workpieces
- Large SquareWays on Y and Z Axis…………. Double locks on all axis
- Aged stressed castings, stress relieved for long life and accuracy, Meehanite type
- Power quill feed allows for 0.0018, 0.003, 0.006 Inches of feed per revolution of spindle
- Hardened and ground and precisely scraped work table, saddle and knee ways, turcite B coated for wear resistance
- Centralized one-shot lubrication pump lubricates all way surfaces and leadscrews
- Backlash adjustment for leadscrews, Gib adjustments for ways
- Electrical cabinet with internal transformer for 110V and 24V devices, circuit breader protected, Low Voltage controls, 24 volt spindle fan cooling motor, 24 volt halogen machine light. Transformer also includes power supply for digital readout and power table feed.
- Operator low voltage controls for spindle drive and coolant pump, with emergency stop button. Spindle off/forward/reverse switch.
- Built in coolant tank base with coolant pump, pressure and return hose , nozzle and valve, Installed and ready to use. Base chip pan to help prevent coolant overflow.
- Schneider digital infinitely variable speed spindle drive, 5 Horsepower (4.0Kw) powers the 5 HP three phase induction spindle drive motor from 65 to 3750 RPM. Spindle speed indicator on head shows RPM in direct drive and back gear. Spindle induction motor is finned for cooling and has 24 volt fan cooling system.
- Sino three axis digital readout has 0.0002” resolution. Readout comes mounted to knee, table and cross and is ready to use. The readout is inch/metric switchable, with absolute incremental function. There is a calculator function, bolt hole pattern function, line pattern function, and arc calculate function. A comprehensive manual is included.
- Power table feed is Align model AL500SP. Infinitely variable feed from .8 to 32 IPM with rapid button, on/off switch, and adjustable travel stops. This heavy duty power feed has 150 inch pounds of torque, with max to 650. Power table feed comes installed on machine, ready to use.
- Toolbox and tools, manuals, electrical drawing, test certificate all included.
- PART# VS-606V7: Upgraded to 5HP Schneider electronic vari-speed spindle drive
- PART# AL500SP: Heavy duty power table feed on X axis
- PART# FCKIT: Flood coolant pump, hose, nozzle
- PART# CPKIT: Chip pan
- PART# MLKIT: Machine light
- PART# FRWCKIT: Front and Rear way covers
- PART# SINO3AX: Three axis digital readout
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

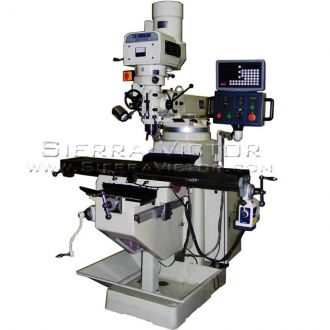

U.S. INDUSTRIAL 10 x 54 inch Heavy Duty Electronic Variable Speed Milling Machine 3EVH-5-KIT
STANDARD EQUIPMENT:
ITEM: 10" x 54" Heavy Duty Electronic Variable Speed Milling Machine
MANUFACTURER: U.S. INDUSTRIAL
MODEL: 3EVH-5-KIT
Manufacturer:
US Industrial
Machine Type
Machine Category:
Mills
Control:
EVS
Metalworking
Mill Capacity:
10" x 54"
|
MODEL
|
3EVH-3-KIT
|
|
Table Size - 3 t-slots, 5/8" on 2.5" centers
|
10" x 54"
|
|
Table Travel w/ Powerfeed Installed
|
34.4"
|
|
Cross Travel w/ Readout Installed
|
15.5"
|
|
Knee Travel
|
16.5"
|
|
Ram Travel
|
18.5"
|
|
Quill Travel
|
5"
|
|
Power quill feed - .0018, .003, .006 IPR
|
Yes
|
|
Head Tilt - Left and Right - With Degree Scale
|
90 degrees
|
|
Head Tilt - Front and Back - With Degree Scale
|
45 degrees
|
|
Ram Swivel on Turret - With Degree Scale
|
360 degrees
|
|
Spindle Taper
|
R8
|
|
Machine Ways, Table, Cross and Knee
|
Box
|
|
Maximum Weight of Workpiece and Fixture
|
660 lbs.
|
|
Electrical Cabinet with Disconnect & Circuit Breakers
|
Yes
|
|
Spindle Drive
|
5 HP
|
|
Vari-Speeds Spindle RPM Range
|
60 to 3750
|
|
Voltage, 3 Phase
|
220 (440 Option) - please specify
|
|
Amp Requirement @ 220 Volts
|
15
|
|
Includes Schneider Electronic Spindle Drive
|
Yes
|
|
Includes Manual Variable Speed Spindle
|
Electronic
|
|
Includes Heavy Duty Power Table Feed
|
Yes
|
|
Includes Flood Coolant System
|
Yes
|
|
Includes Base Chip Pan
|
Yes
|
|
Includes Machine Light
|
Yes
|
|
Includes Front & Rear Way Covers
|
Yes
|
|
Includes SINO 3-Axis Digital Readout, inch/metric
|
Yes
|
|
100% Inspection, Calibration Prior to Shipping
|
Yes
|
|
Shipping Dimension - L x W x H on skid
|
6' x 6' x 80"
|
|
Machine Weight
|
3,400 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
|
PART #
|
ITEM
|
PRICE
|
UPM1500 |
Transformer for 3EVH-5 Milling Machine for 440/460/480 Volts (*This option only applies to the 3EVH-5-KIT Model and must be purchased if the 3EVH-5 is to be set up for 440 volts.) |
$695.00
|
UPM1501 |
Air Power Drawbar |
$895.00 |
UPM1502 |
Bestline Power Feed for Y-Axis |
$845.00 |
UPM1503 |
Bestline Power Feed for Z-Axis |
$845.00 |
UPM1504 |
Mill QC Collet Set |
$299.00 |
UPM1505 |
Clamp Kit |
$129.00 |
UPM1506 |
Precision Parallel Set |
$179.00 |
UPM1507 |
6" Lock Type Milling Vise |
$299.00 |
UPM1508 |
R-8 Collet Set |
$139.00 |
*Options you may wish to purchase will be installed on machine
