Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

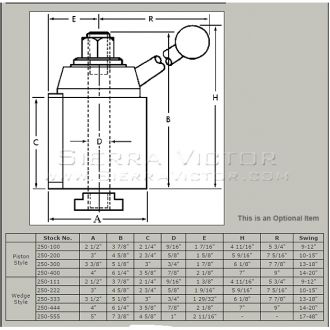

• QUICK CHANGE TOOL POST OPTION – (Replaces standard four-way tool post)
  • ONE – NEW QUICK CHANGE TOOLPOST WITH FIVE HOLDERS, FOR FACTOY ONLY. INSTALL ON USL SERIES LATHES
  • Note: We use the wedge style, #333 for our Lathes. This comes with
    Part off holder, knurling holder, boring bar holder, and two ¾” SS holders
  • This is custom installation and not available after machine ships.
    Must be installed on lathe at time of order, prior to shipping.
  • Extra holders are $ 75.00 each.
• Cutting Tool Package for U.S. Industrial Lathes:
  • This optional cutting tool package is designed to fit our QUICK CHANGE TOOLPOST option. It is not for the standard 4-way toolpost.
  • Tools included below are for:
    • Rough and medium finishing of the part OD
    • Left- and right-hand tools for working left and right hand shoulders
    • Tools for threading OD and ID
    • Part off tools
    • Fine finish of the part ID
    • Tools for boring the ID and more...
  • List of carbide cutting tools in KIT for US INDUSTRIAL LATHE: (ISO tools are imports.)
  • Note: Tools for 13”, 16”, 20” and 26” Lathes will be ¾” square shank
  • Note: Customer MUST purchase option, OUR QC Toolpost set for install prior to shipping:
    1. MW LN-R, ¾” square, triangle insert, right hand
    2. MW LN-L, ¾” square, triangle insert, left hand.
    3. Box of 10 W NMG inserts for above
    4. MCLN-R, ¾” square, diamond insert, right hand
    5. MCLN-L, ¾” square, diamond insert, left hand
    6. Box of 10 CNMG inserts for above
    7. MVJN-R, ¾” square, diamond insert, fine finish, right hand
    8. MVJN-L, ¾” square, diamond insert, fine finish, left hand
    9. Box of 10 VNMG inserts, 1/64” nose radius
    10. SER-0750-SET, ¾” square, for threading OD, with inserts (This is a KIT and includes threading inserts.)
    11. SIR-0750-SET, ¾” round, for threading ID, with inserts (This is a KIT and includes threading inserts.)
    12. SCLCR-SET, Boring bars, .315”, 3/8”, ½”, 5/8”, ¾” bars, with inserts (This is a KIT and includes inserts.)
    13. RH-MCLN, Boring bar, 1” diameter, 12” long
    14. Use inserts in Item No. 6, CNMG
    15. HSSBlade for part-off holder, high speed steel
    16. Block, blade and 10 self-lock carbide parting/grooving inserts
    17. Arbor and key chuck for tailstock
    18. Live center for tailstock
    19. Semi-synthetic coolant concentrate, 1 gallon
