Due to current tariff policies ALL USI products are
CALL FOR PRICE and AVAILABILITY
- Description
- Dual Hydraulic cylinders for two-man operation with two movable foot pedals

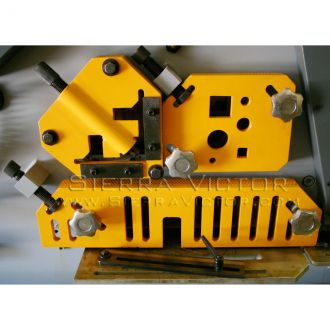

- Five workstations: punch, plate shear, angle shear, rod shear notcher, plus press brake attachment
- This machine also comes with a press brake attachment

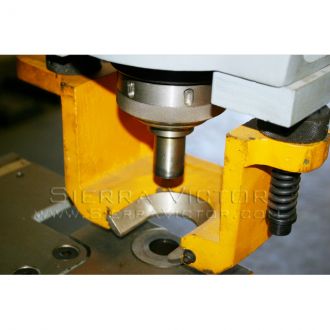

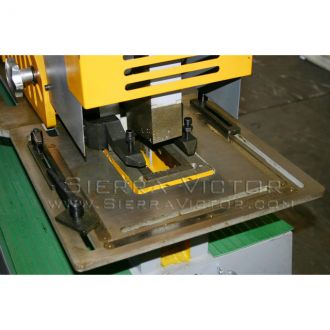

- Punch station has large two-piece gauging table with fence
- Punch station has quick acting swing-away stripper with 3 inserts
- Punch station has removable sections for punch leg of channel or I-beam
- Quick change coupling nut and sleeve for punch
- Electric backgauge, 3' long
- Electrically interlocked safety guard for notching station
- Magnetic base workstation light
- 10 HP, 3-Phase operation
- Three sets of round punch and die
- Spare parts and tools
- *Bar Shear gapped for 1/4" thickness and up. Cutting gauge thickness may require shimming to reduce gap.
- *Notcher station not gapped for small gauge thickness. Must centerload heavy notches.
- Backgauge for cutting
- Dual operator stations
- 3 Metric punches
- 12" Press brake attachemnt.
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight
- Required products

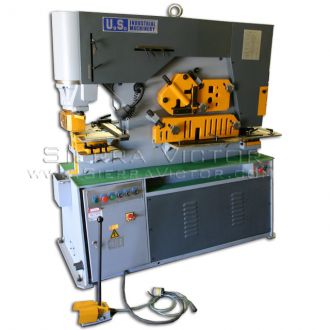

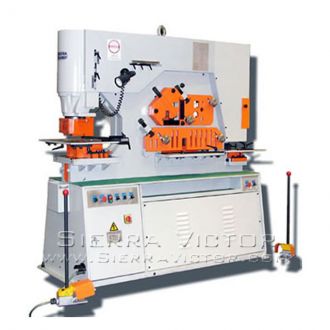

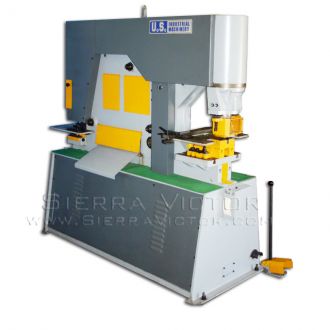

U.S. INDUSTRIAL 90 Ton Hydraulic Ironworker USHI-90T-DO
STANDARD EQUIPMENT:
ITEM: 90 Ton Hydraulic Ironworker
MANUFACTURER: U.S. INDUSTRIAL
MODEL: USHI-90T-DO
Manufacturer:
US Industrial
Machine Type
Machine Category:
Ironworkers
Power Source:
Hydraulic
MODEL |
USHI-90T-DO |
|
Punch Tonnage
|
90
|
|
Punching Thickness
|
3/4"
|
|
Punching Diameter
|
1-1/4"
|
|
Throat Depth
|
14"
|
|
Stroke Length
|
0" - 3 1/8"
|
|
Flat Bar Shear Max. Thickness
|
14" W x 3/4" Thick
|
|
Flat Bar Max. Length
|
18" W x 5/8" Thick
|
|
Flat Bar Blade Length
|
19"
|
|
Angle Shear Capacity 90°
|
5-1/2" x 5-1/2" x 1/2"
|
|
Angle Shear Capacity 45°
|
2" x 2" x 3/8"
|
|
Bar Shear Round
|
2"
|
|
Bar Shear Square
|
2"
|
|
Notcher Thickness
|
1/2"
|
|
Notcher Width
|
2-1/4"
|
|
Notcher Depth
|
4"
|
|
Motor
|
10 HP, 3-phase
|
Electrical |
220V or 440V, 3-phase (specify) |
|
Oil Capacity
|
25 gals.
|
|
Machine Dimensions
|
73" x 35" x 74"
|
|
Machine weight approx.
|
5,260 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
PRICE |
UPIW1500 |
Round Punch and Die Set for 66 and 90 Ton Models |
$595.00 |
UPIW1501 |
Round Punch and Die Set for 125 and 155 Ton Models |
$995.00 |
UPIW1502 |
Pipe Notcher Housing Assembly |
$695.00 |
UPIW1503 |
1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1504 |
3/4" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1505 |
1" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1506 |
1-1/4" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1507 |
1-1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1508 |
2" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$575.00 |
