- Description
- Dual Hydraulic cylinders for two-man operation with two movable foot pedals
- Five workstations: punch, plate shear, angle shear, rod shear notcher plus brake attachment
- Punch station has large two-piece gauging table with fence
- Punch station has quick acting swing-away stripper with 3 inserts
- Punch station has removable sections for punch leg of channel or I-beam
- Quick change coupling nut and sleeve for punch
- Electric backgauge, 3' long
- Electrically interlocked safety guard for notching station
- Magnetic base workstation light
- Three sets of round punch and die
- Spare parts and tools
- *Flat bar shear station - Bar shear gapped for 1/4" thickness and up. Cutting gauge thickness may require shimming to reduce gap. With squaring arem removed
- *Rectangular notcher station - Notcher station no gapped for small gauge thickness. Must centerload heavy notches.
- This model usually special order. See Model USHI66T-DO-XT for quicker delivery.
- Backgauge for cutting
- Dual operator stations
- 3 Metric punches
- 12" Press brake attachemnt.
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

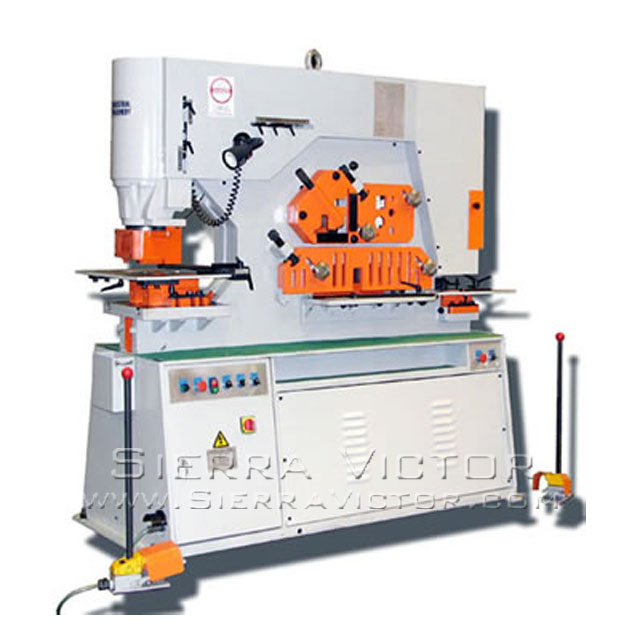

U.S. INDUSTRIAL 66 Ton Hydraulic Ironworker USHI-66T-DO
STANDARD EQUIPMENT:
ITEM: 66 Ton Hydraulic Ironworker
MANUFACTURER: U.S. INDUSTRIAL
MODEL: USHI-66T-DO
Manufacturer:
US Industrial
Machine Type
Machine Category:
Ironworkers
Power Source:
Hydraulic
|
Punch Tonnage
|
66
|
|
Punching Thickness
|
5/8"
|
|
Punching Diameter
|
1-1/4"
|
|
Throat Depth
|
12"
|
|
Stroke Length
|
0" - 3 1/8"
|
|
Flat Bar Shear Max. Thickness
|
12" W x 5/8" Thick
|
|
Flat Bar Max. Length
(with squaring arem removed) |
16" W x 5/16" Thick
|
|
Flat Bar Blade Length
|
16"
|
|
Angle Shear Capacity 90°
|
5" x 5" x 3/8"
|
|
Angle Shear Capacity 45°
|
2" x 2" x 1/4"
|
|
Bar Shear Round
|
1-3/4"
|
|
Bar Shear Square
|
1-5/8"
|
|
Notcher Thickness
|
3/8"
|
|
Notcher Width
|
2-1/4"
|
|
Notcher Depth
|
4"
|
|
Motor
|
7.5 HP, 3-phase
|
Electrical |
220V or 440V, 3-phase (specify) |
|
Oil Capacity
|
20 gals.
|
|
Machine Dimensions
|
64" x 28" x 69"
|
|
Machine weight approx.
|
3,527 lbs
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
PRICE |

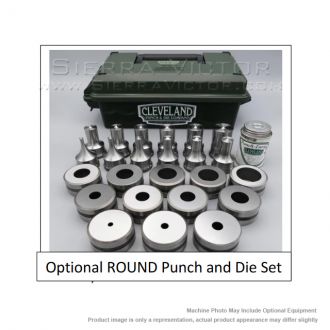

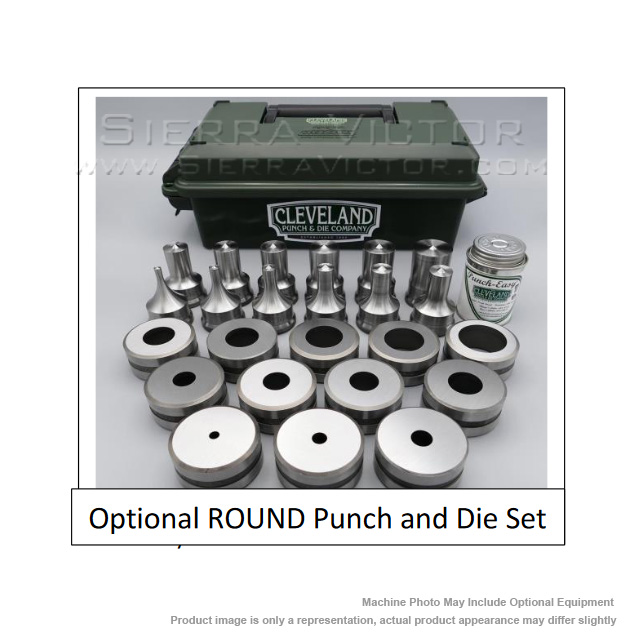

UPIW1500 |
Round Punch and Die Set for 66 and 90 Ton Models |
$595.00 |
UPIW1501 |
Round Punch and Die Set for 125 and 155 Ton Models |
$995.00 |
UPIW1502 |
Pipe Notcher Housing Assembly |
$695.00 |
UPIW1503 |
1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1504 |
3/4" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1505 |
1" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1506 |
1-1/4" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1507 |
1-1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1508 |
2" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$575.00 |
