- Description
- Dual hydraulic cylinders for two man operation with two moveable foot pedals

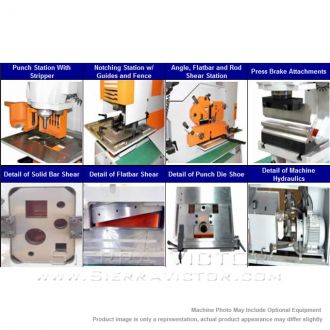

- Five workstations: punch, plate shear, angle shear, rod shear and notcher. This machine also comes with a pressbrake attachment.
- Punch station has large two-piece gauging table with fence
- Punch station has quick acting swing-away stripper with 3 inserts
- Punch station has removable sections for punch leg of channel or I-beam
- Quick change coupling nut and sleeve for punch
- Electric backgauge, 3’ long
- Electrically interlocked safety guard for notching station
- Magnetic base workstation light
- 15 HP, 3-phase operation
- This machine weighs 10,560 lbs.
- Three sets of round punch and die
- Spare parts and tools
- *Bar Shear gapped for 1/4" thickness and up. Cutting gauge thickness may require shimming to reduce gap.
- *Notcher station not gapped for small gauge thickness. Must centerload heavy notches.
- Backgauge for cutting
- Dual operator stations
- 3 Metric punches
- 12" Press brake attachemnt.
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

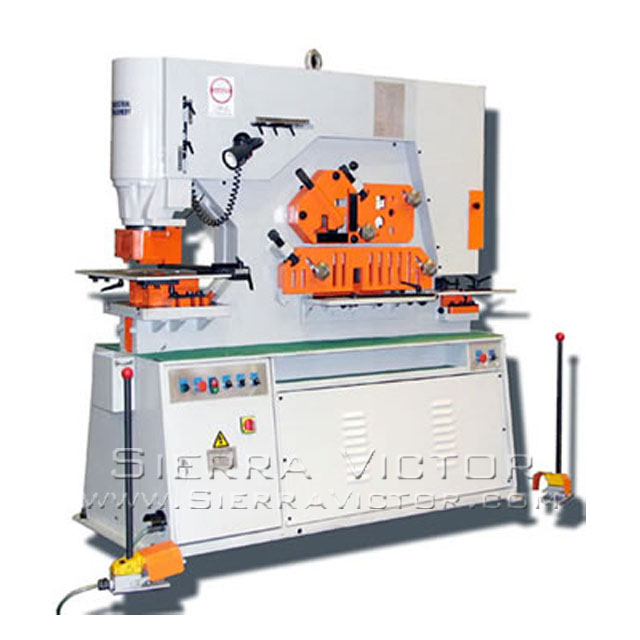

U.S. INDUSTRIAL 125 Ton Hydraulic Ironworker USHI-125T-DO-XT
STANDARD EQUIPMENT:
ITEM: 125 Ton Hydraulic Ironworker
MANUFACTURER: U.S. INDUSTRIAL
MODEL: USHI-125T-DO-XT
Manufacturer:
US Industrial
Machine Type
Machine Category:
Ironworkers
Power Source:
Hydraulic
MODEL |
USHI-125T-DO-XT |
Punch Tonnage |
125 |
Punching Thickness |
1" |
Punching Diameter |
1-1/2" |
Throat Depth |
24" |
Stroke Length |
0" - 3 1/8" |
Flat Bar Shear Max. Thickness |
14" W x 1" Thick |
Flat Bar Max. Length |
23.5" W x 5/8" Thick |
Flat Bar Blade Length |
23.5" |
Angle Shear Capacity 90° |
6" x 6" x 5/8" |
Angle Shear Capacity 45° |
3" x 3" x 1/4" |
Bar Shear Round |
2-3/8" |
Bar Shear Square |
2-1/8" |
Notcher Thickness |
1/2" |
Notcher Width |
2-1/4" |
Notcher Depth |
4" |
Motor |
15 HP, 3- phase |
Electrical |
220V or 440V, 3-phase (specify) |
Oil Capacity |
33 gals |
Machine Dimensions |
92" x 37" x 82" |
Machine weight approx. |
10,560 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
PART #
|
ITEM
|
PRICE |
UPIW1500 |

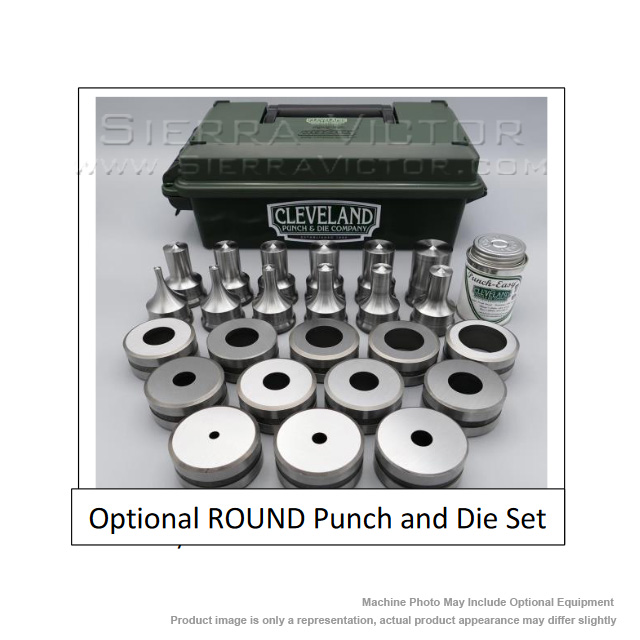

Round Punch and Die Set for 66 and 90 Ton Models |
$595.00 |
UPIW1501 |
Round Punch and Die Set for 125 and 155 Ton Models |
$995.00 |
UPIW1502 |
Pipe Notcher Housing Assembly |
$695.00 |
UPIW1503 |
1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1504 |
3/4" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1505 |
1" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1506 |
1-1/4" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1507 |
1-1/2" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$495.00 |
UPIW1508 |
2" Ironworker Pipe Notching Die for Schedule 40 Pipe |
$575.00 |
