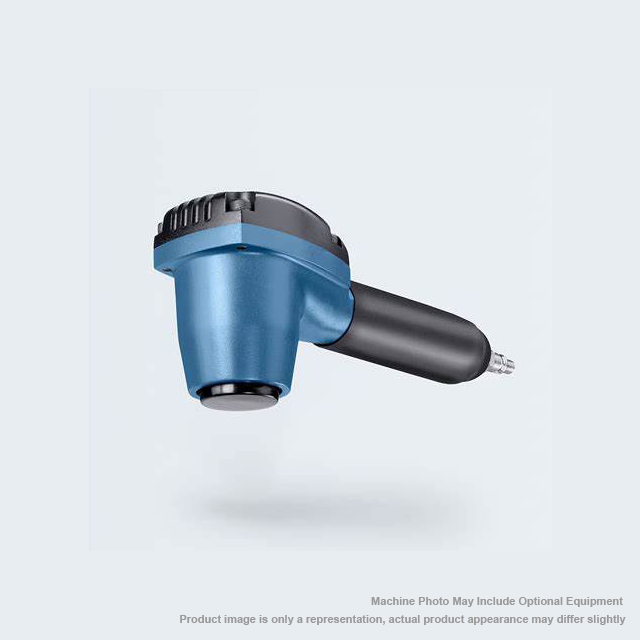

TRUMPF TruTool PS 100 Pneumatic Part Separator

• When you cut small parts on 2D laser cutting machines, they are connected to the scrap skeleton with micro- or nano-joints. We offer our pneumatic part separator as an efficient solution to subsequently easily remove the parts from the sheet. Compared to manual sorting, you will be up to 10x faster with this part separator. Stay ahead of the competition: become part of the next generation by removing your valuable parts from scrap skeletons quickly and easily by machine, while others are still hammering.
• The pneumatic part separator separates nano and micro-joint connections in material thicknesses of up to 12 mm, no matter whether steel, chromium steel, aluminum or special steel is being processed.

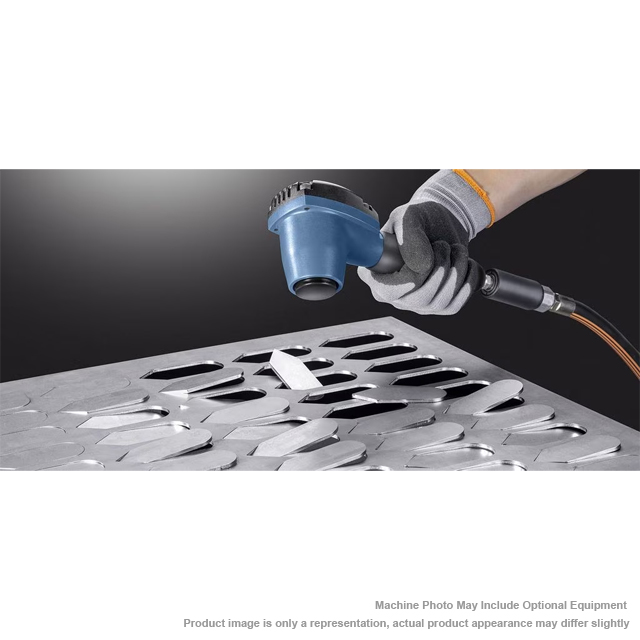

• With the pneumatic part separator, the sheet metal composite is vibrated by impact pulses and the parts simply detach from the scrap skeleton. TruTool PS 100 is the perfect solution for separating nano-joint connections - machining is quick and easy. The part separator is also great for micro-joint connections. With its compact design, the machine sits comfortably in the hand. The variety of holding positions on the machine head as well as on the handle means you can vary the holding position while you work. The result: an ergonomic and user-friendly mode of operation for efficient and fatigue-free work.
• Application
  • With the TruTool PS 100 you can separate connecting parts of up to 12 mm, no matter whether steel, chrome steel, aluminum or special steel is being processed.
• Change is the best position
  • Different holding options on the machine head and on the handle mean you can vary the machine position while working.
• High quality
  • Thanks to the rubberized hammer insert, there is no tilting or damage when removing the small parts.
• Quick work speed
  • Separation of parts is up to 10x faster compared to manual removal. Even for small parts with recesses.
• Apply pressure precisely
  • You determine the frequency of the hammer blows by applying pressure at specific points, depending on the material thickness and joints (nano- or microjoints).
• Standard - Soft - Hard
  • Use different hammer inserts to suit the material and sensitivity of the parts.

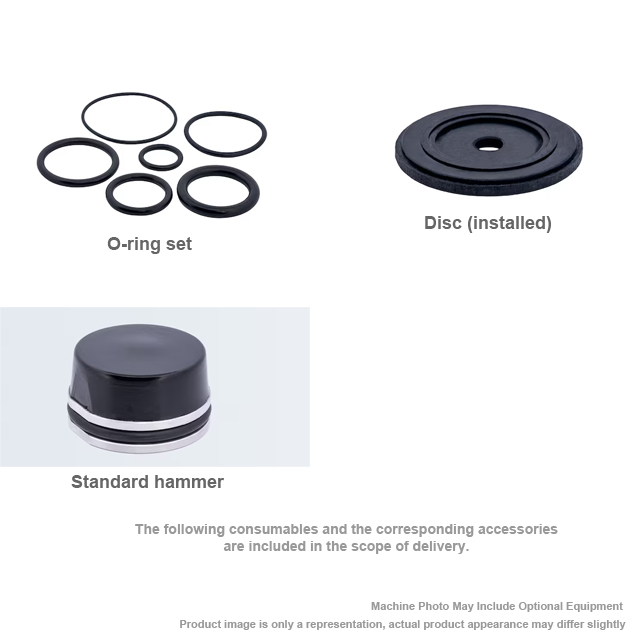

The following consumables and the corresponding accessories are included in the scope of delivery:

• O-ring set
• Disc (installed)
• Compressed air inlet port ARO Series 22 R1/8a (installed)
• Compressed air inlet port ISO 6150 B DN 5.5 (installed)
• Standard hammer insert (installed)
• 0067865 - Allen key DIN 911-6 - 1 unit
