- Description

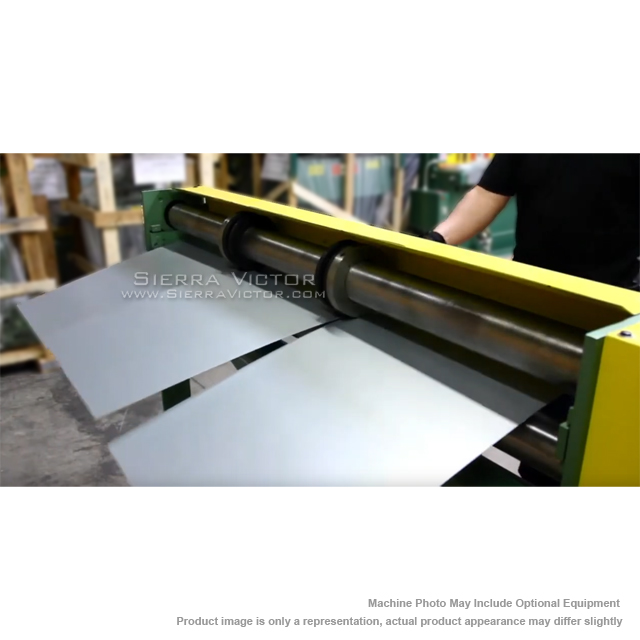

- Cut multiple blanks of light gauge sheet metal… in one pass!
- Great for roofing and architectural!
- Gang slit blanks from 16 to 30 gauge.
- Slit blanks at speeds up to 60 FPM
- Gang slit pre-painted and other sheet material
- Life lubed bearings

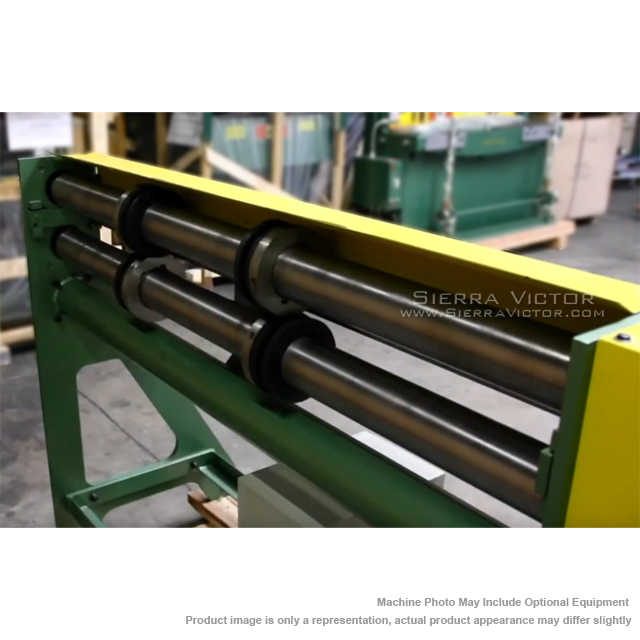

- 3” cold rolled polish shafts
- 2 sets of reversible knives
- Heavy duty chain drive
- Stripper fingers to prevent twist
- Operating Speed: 60 FPM
- 3/4 HP, 110/220V, 1 Phase Motor
- Tool steel blades with stripper rings
- (Non-scratch: pre-painted, copper, polished metals, etc.)
- Manufacturer
- Specifications
- Video

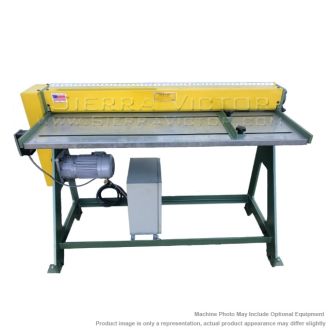

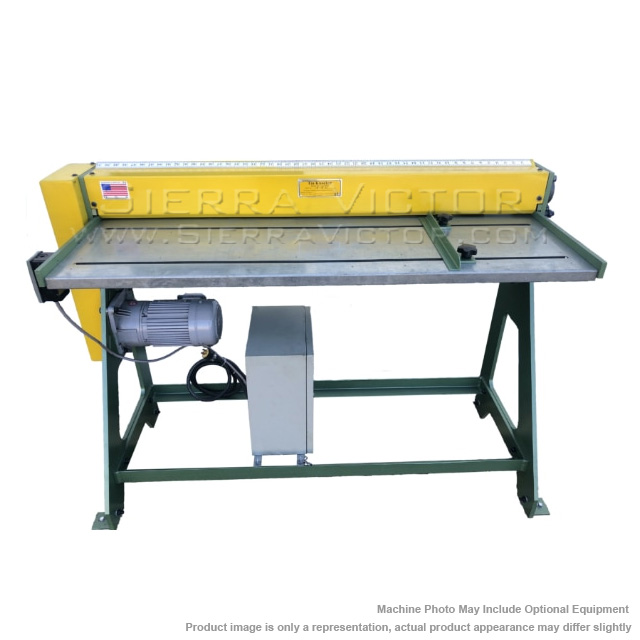

TIN KNOCKER 48 inch x 16 ga. Gang Slitter
ITEM: 48" x 16 ga. Gang Slitter
MANUFACTURER: TIN KNOCKER
MODEL: TK GANG SLITTER
Manufacturer:
Tin Knocker
Machine Type
Machine Category:
Slitters
Machine Sub-Category:
Gang
Material Type:
Metal
Metalworking
Mild Steel Capacity:
16 ga
Overall width |
58 |
Width between end frames |
52-1/4" |
Max Cutting Width |
48-1/2" |
Table Height |
35" |
Feed Speed |
60 FPM |
Overall depth |
26" |
Shaft Diameter |
3" |
Knife Dimensions: |
5” OD x 1/4” |
Motor HP |
3/4 HP |
Electrics |
110/220V – 1ph |
Ship Dimensions: |
67” x 37” x 48” |
Weight: |
525 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
