- Description

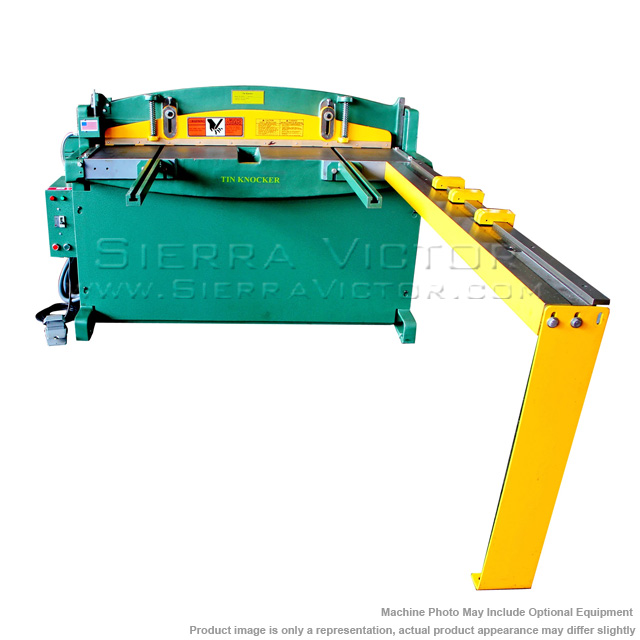

- The Tin Knocker power squaring shear makes shearing light gauge metal easy. The design and features make shearing accurate and efficient. This shear can accommodate 52” sheet with a maximum capacity of 16-gauge mild steel. The hydraulically powered unit features fast and smooth shearing action.
- Front support arms
- Parallel rack and pinion back gauge
- 5ft squaring arm with drop stops
- Manufacturer
- Specifications
- Custom Freight
TIN KNOCKER 52 inch x 16 gauge Hydraulic Shear TK 1652
STANDARD EQUIPMENT:
ITEM: 52" x 16 ga. Hydraulic Shear
MANUFACTURER: TIN KNOCKER
MODEL: TK 1652
PART: TKSHEARH
Manufacturer:
Tin Knocker
Machine Type
Machine Category:
Shears
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
16 ga
Stainless Steel Capacity:
20 ga
|
Maximum shearing capacity, mild steel
|
16 ga/ 1,6 mm
|
|
Maximum shearing capacity, stainless steel
|
20 ga/ 1,0 mm
|
|
Maximum cutting length
|
52 in/ 1320 mm
|
|
Back gauge range
|
30 in/ 762 mm
|
|
Front gauge range
|
37 in/ 940 mm
|
|
Standard motor
|
3 hp/ 220V, 1-phase
|
|
Floor space, gauges in position
|
66" x 76" x 42"
1676 x 1930 x 1070 mm |
|
Dimensions
|
72" x 48" x 36"
|
|
Shipping weight
|
1,350 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
