Name: TIN KNOCKER 20 ga. Button Lock Roll Former
Brand: Tin Knocker
SKU: TKBL3HP
Price: 9245.00 USD
Availability: InStock
Rating: 4.9 (8 reviews)

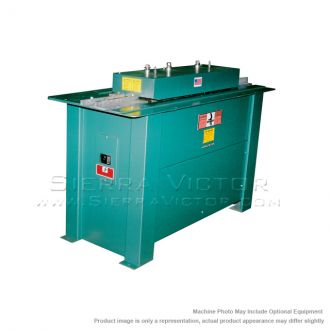

TIN KNOCKER 20 gauge Button Lock Roll Former

9 Station Button Lock Rollformer means no hammering over of edges.
The Button Lock roll former comes with "male" tooling on one side and "female" on the opposing side.
A fast, effective way of marrying 20 to 26 gauge duct sections.

ITEM: 20 ga. Button Lock Roll Former

MANUFACTURER: TIN KNOCKER

MODEL: TK20

PART: TKBL3HP

CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY

Manufacturer:

Tin Knocker

Machine Type

Machine Category:

Pittsburgh/Lock/Roll Formers

Metalworking

Mild Steel Capacity:

20 ga

Capacity	20-26 Gauge
Motor:	3 HP, 230/3/60 (Available 5 HP, single phase is optional)
Lube:	Centralized
Dimensions:	60" x 30" x 42" (152mm x 762mm x 1067mm)
Speed:	Approx. 60 FPM
Weight:	820 lbs

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

CLICK HERE FOR FREIGHT QUOTE AND TO CONFIRM AVAILABILITY

Custom Freight

$0.00

This product requires custom shipping. Proceed to Checkout AND log in to your existing account or create a new account. Complete the checkout process. AT THE BILLING OPTION SCREEN CHOOSE 'OTHER PAYMENT OPTIONS' - 'PHONE ORDERING' AND THEN PRESS 'SUBMIT MY ORDER'. Once you have placed the order please contact Sierra Victor so that they can review your order and provide you with a freight quote. You will be notified by Sierra Victor of the custom freight charges for your equipment. Upon receiving the quote please return to our store, log in to your account and enter the total amount of the shipping charges here and then proceed to checkout. You can then choose to pay for your order with a credit card or check.

Availability: In stock

TIN KNOCKER 20 ga. Button Lock Roll Former

20 ga

$9,245.00

Supplier: Tin Knocker

Model: TKBL3HP

TIN KNOCKER Button Lock Roll Former has a capacity of 20 gauge. The motor is 3 HP, 230 volt/3 phase/60 (Available 5 HP, single phase is optional).

9 Station Button Lock Rollformer means no hammering over of edges.

The Button Lock roll former comes with "male" tooling on one side and "female" on the opposing side.

A fast, effective way of marrying 20 to 26 gauge duct sections.
