- Description
- MADE IN USA

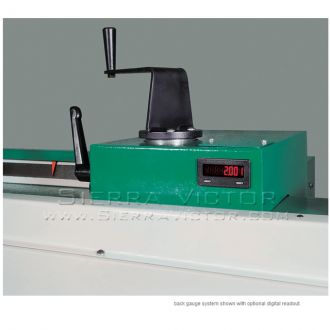

- TENNSMITH'S LM Series Mechanical Shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. The LM410 incorporates the unique 2x-F back gauge system. This allows the operator to move the backstop from 0 - 24 inches in approximately 2 seconds with only two rotations of the handle. The LM610 and LM810 incorporate the same 2x-F system, but with the added capacity of 30-inch travel. An optional digital readout is available for this system.

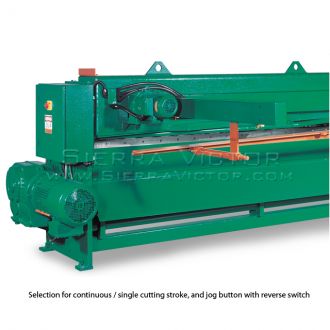

- The LM Series shears are standard with four-edge, high carbon, high chrome top and bottom blades, independent, self-leveling hold down feet with neoprene inserts, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
- To enhance productivity, optional equipment available for the machines.

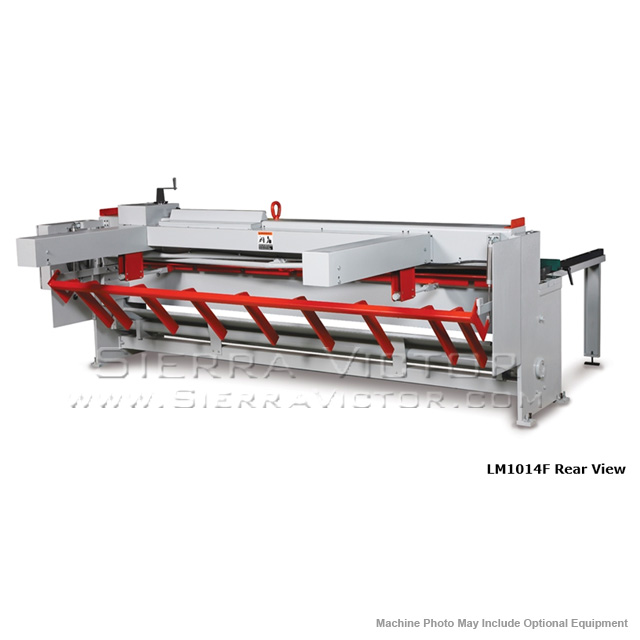

- The LM1014, LM1012, and LM1214 can be delivered with an optional air operated sheet support system. This system is available in two styles:
- System-R drops the supported material to the rear of the machine
- System-F returns the supported material to the front of the machine via a front return chute
- Note: Performance Packages are Preferred Options
- Please call 386-304-3720 for details
- Manufacturer
- Specifications
- Options/Accessories
- Wired for CSA Canadian Electrical Standard: $415.00
- 83800: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $1,180.00
- 83805: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $2,655.00
- 83815: Additional Flip-up Stops for Squaring Arm (each): $230.00
- 83820: Front Support Arms Pair: $310.00
- 83825: T-Slotted Table with Two Front Support Arms with Inlaid Inch/Metric Scales: $2,125.00
- 83830: Additional Flip-up Stops for T-Slotted Support Arms and Table (each): $215.00
- 83835: Power Back-gauge 30-Inch Travel: $6,570.00
- 83840: Protractor Attachment: $685.00
- 83885: Work Shadow Light LM Series: $970.00
- 83895: Digital Readout for 2x Back-gauge System: $1,150.00
- 83890: Stroke Counter (Electro-Mechanical): $340.00
- 83920: LM1214 High Carbon High Chrome 4 Edge per set: $2,575.00
- Increased Cutting Speeds (Please consult factory)
- Note: Performance Packages are Preferred Options
- All LM Series Shears are available in a reduced price "Performance Package" configuration. The Performance Package includes:
- 5 foot squaring arm
- A pair of front support arms
- Air operated sheet support system
- Performance "R" system is for rear return
- Performance "F" system is for front return
- A moveable material cart is available for both front and rear return machines (LM1014, LM1012, and LM1214 only)
- Please Contact Sierra Victor Industries at 386-304-3720 for a complete listing of optional equipment
- Custom Freight
TENNSMITH 12' x 14 ga Low-Profile Mechanical Shear LM1214
ITEM: 12' (145") x 14 ga Low-Profile Mechanical Shear
MANUFACTURER: TENNSMITH
MODEL: LM SERIES
PART# LM1214
Manufacturer:
Tennsmith
Machine Type
Machine Category:
Shears
Machine Sub-Category:
Mechanical
Metalworking
Material Length:
12 ft (144 in.+)
Mild Steel Capacity:
14 ga
Stainless Steel Capacity:
18 ga
|
MODEL
|
LM1214
|
|
Maximum shearing capacity, Mild Steel
|
14 gauge
|
|
Maximum shearing capacity, Stainless Steel
|
18 gauge
|
|
Maximum cutting length
|
145"
|
|
Back gauge range
|
30" / 762mm
|
|
Strokes per minute, full length
|
35
|
|
Number of hold down feet
|
16
|
|
Motor - 230/460V, 3-Phase, 60Hz
|
7.5 HP
|
|
Dimensions, (LxWxH)
|
164" x 72" x 56"
|
|
Shipping Weight:
|
7,530 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
