- Description
- Manufacturer
- Specifications
- Options/Accessories
- Wired for CSA Canadian Electrical Standard: $415.00
- 83800: Squaring Arm Five Foot with Dual Inlaid Inch/Metric Scale: $1,180.00
- 83805: Squaring Arm Ten Foot with dual Inlaid Inch/Metric Scale: $2,655.00
- 83815: Additional Flip-up Stops for Squaring Arm (each): $230.00
- 83820: Front Support Arms Pair: $310.00
- 83825: T-Slotted Table with Two Front Support Arms with Inlaid Inch/Metric Scales: $2,125.00
- 83830: Additional Flip-up Stops for T-Slotted Support Arms and Table (each): $215.00
- 83835: Power Back-gauge 30-Inch Travel: $6,570.00
- 83840: Protractor Attachment: $685.00
- 83885: Work Shadow Light LM Series: $970.00
- 83895: Digital Readout for 2x Back-gauge System: $1,150.00
- 83890: Stroke Counter (Electro-Mechanical): $340.00
- 83920: LM1210 High Carbon High Chrome 4 Edge per set: $2,575.00
- Increased Cutting Speeds (Please consult factory)
- Note: Performance Packages are Preferred Options
- Custom Freight

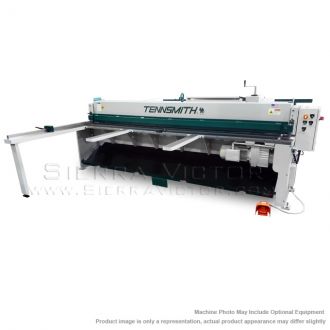

TENNSMITH 12 ft x 10 gauge Low-Profile Mechanical Shear LM1210
The LM Series shears are standard with four edge, high carbon/high chromium (HCHC) top and bottom blades, solid-bar hold-down with non-marring urethane insert, single, continuous and job stroke cycles, motor reverse switch, precision-machined table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
ITEM: 145" x 10 ga Low-Profile Mechanical Shear
MANUFACTURER: TENNSMITH
MODEL: LM SERIES
PART# LM1210
Manufacturer:
Tennsmith
Machine Type
Machine Category:
Shears
Machine Sub-Category:
Mechanical
Metalworking
Material Length:
12 ft (144 in.+)
Mild Steel Capacity:
10 ga
Stainless Steel Capacity:
14 ga
|
MODEL
|
LM1210
|
|
Maximum shearing capacity, Mild Steel
|
10 gauge
|
|
Maximum shearing capacity, Stainless Steel
|
14 gauge
|
|
Maximum cutting length
|
145"
|
|
Back gauge range
|
30" (Go-To)
|
|
Strokes per minute, full length
|
35
|
|
Number of hold down feet
|
18
|
|
Motor - 230/460V, 3-Phase, 60Hz
|
2 x 7.5 HP
|
|
Dimensions, less gauges (LxWxH)
|
169" x 39" x 60"
|
|
Floor space, gauges in position
|
169" x 78" x 60"
|
|
Shipping Weight:
|
11,400 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
