- MADE IN USA
- TENNSMITH'S SR48P powered slip roll combines all of the features of our SR48 initial pinch roll with the productive advantage of electric-powered drive for production forming of curved parts and tubes made of 16 gauge and lighter sheet metal.
- Drive power for the SR48P is supplied by a heavy-duty, industrial quality gear reduction motor and roller chain directly to the gear train. The roll drive is controlled by a toggle action, shrouded foot pedal for instant forward and reverse action. The drive motor is equipped with an electromagnetic brake to prevent roll creep and over-forming.
- Electrical and operator safety features include a full-length, front and back wire cable safety mechanism which instantly stops the rolls when tripped; two magnetic motor starters; fully enclosed electrical box with pilot light; insulated reinforced conduit for all wiring; and fully enclosed drive train. The rolls and gears are mounted in hardened bronze bushings for long life and precision operation.
- Manufacturer
- Specifications
- Options/Accessories
- Wired for CSA Canadian Electrical Standard: $525.00
- Custom Freight

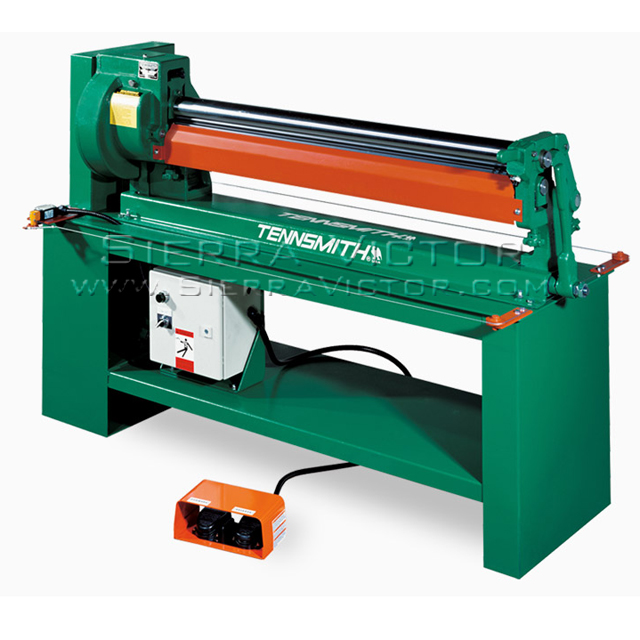

TENNSMITH 49 inch x 16 ga Powered Slip Roll SR48P
ITEM: 49" x 16 ga Powered Slip Roll
MANUFACTURER: TENNSMITH
MODEL: SR48P
PART# 86020 / 86030 / 86025
Manufacturer:
Tennsmith
Machine Type
Machine Category:
Slip Rolls
Control:
Power
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
16 ga
|
Capacity - Mild Steel
|
16 ga
|
|
Maximum Forming Length
|
49"
|
|
Diameter of Rolls
|
3"
|
|
Minimum Forming Radius
|
1-1/2"
|
|
Wire Grooves
|
3/16", 1/2", 5/8"
|
|
Gearing Ratio
|
4:1
|
|
Roll Speed
|
22 RPM
|
|
Motor
|
220V or 440V, 3-phase, 60Hz, 3/4 HP
|
|
Dimensions (LxWxH)
|
77" x 29" x 50"
|
|
Shipping Weight:
|
1,400 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
