- MADE IN USA
- TENNSMITH'S bench-mounted hand brakes are rugged, dependable USA-made tools that wont break your budget. Model HBU48-16 is a heavy-duty bench brake suitable for box and pan or straight bending in up to 16-gauge mild steel. The brake features a removable apron angle and apron insert permitting 1/4 inch reverse bends in lighter materials. The upper leaf and nose bar has a wide range of adjustment for radius bending. Standard equipment includes an apron stop rod for repeat bends, extension handles and a counterweight.
- Models U48-22 and S48-22 are lighter capacity versions of the four-foot bench brake, which offer economical alternatives in working 22-gauge and lighter materials. Also, their lighter weights make these models better suited for transporting to remote job sites.
- TENNSMITH'S bench-mounted hand brakes provide an economical means of performing a wide range of sheet metal bending and forming operations. These brakes are all-steel welded construction, readily adjustable and utilize bronze bearings at pivot points.
- Manufacturer
- Specifications
- Options/Accessories
- 85060: Floor Stand for 4 Foot Bench Brakes - $350.00
- Custom Freight

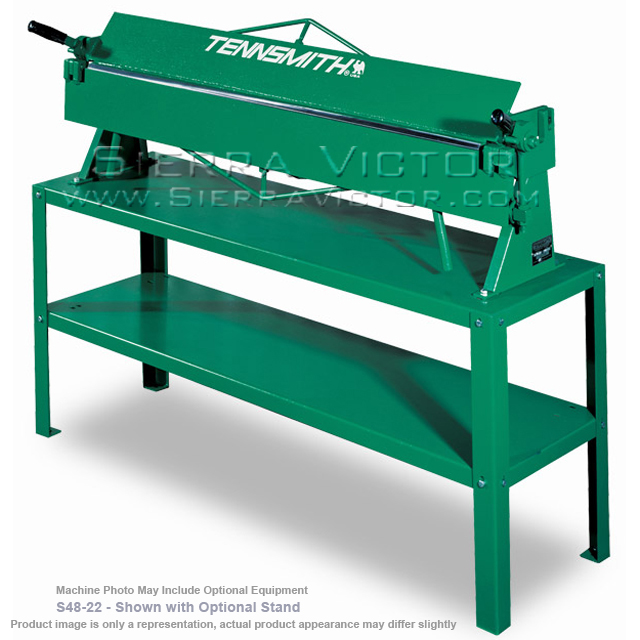

TENNSMITH 48-1/4 in. x 22 ga Bench-Mounted Straight Hand Brake S48-22
ITEM: 48-1/4" x 22 ga Bench-Mounted Straight Hand Brake
MANUFACTURER: TENNSMITH
MODEL: S48-22
PART# 85000
Manufacturer:
Tennsmith
Machine Type
Machine Category:
Brakes - Straight/Hand
Machine Sub-Category:
Benchtop
Control:
Manual
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
22 ga
|
MODEL
|
S48-22
|
|
Capacity - Mild Steel
|
22 ga
|
|
Bending Length
|
48-1/4"
|
|
Maximum Depth of Box
|
—
|
|
Maximum Lift of Beam
|
7/8"
|
|
Front to Rear Beam Adjustment
|
1/4"
|
|
Minimum Reverse Bend
|
5/16"
|
|
Minimum Flange in Capacity Material
|
3/8"
|
|
Finger Widths
|
—
|
|
Shipping Weight: (lbs.)
|
220 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
