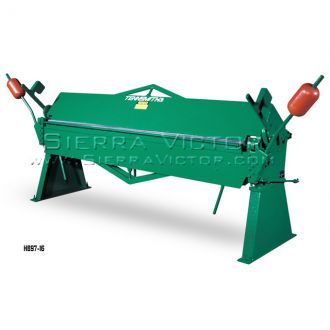

TENNSMITH 97 inch x 18 gauge Heavy Duty Hand Brake HB97-18

• MADE IN USA
• TENNSMITH'S Heavy-duty hand brakes are designed and built for long service and accurate bending. Welded steel plate construction and heavy truss rods and braces provide strength and durability.
• With much more substantial steel side plates than other domestically made units, these brakes have teh rigidity required for upper beam adjustment without the use of wrenches.
• Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thickness or radii.
• Other adjustment features include:
  • Leveling screws and lock nuts on the pedestals
  • Jack screws and tensioner bolts on the apron
  • Truss rods on the apron, base and upper beam
  • Fully adjustable counter balances to facilitate the bending process
  • Replaceable nose bar and apron inserts
• Removable apron angle and insert permit 1/4-inch reverse bends in lighter material
• Bored in line to ensure perfect alignment, the pivot points are fitted with oil impregnated bearings. The hinge pins are high-tensile, alloy steel.
• Ductile steel clamp handles, heavy yokes, grease fittings and an apron stop rod complement the many other fine features of these heavy-duty brakes
