- Description
- MADE IN USA

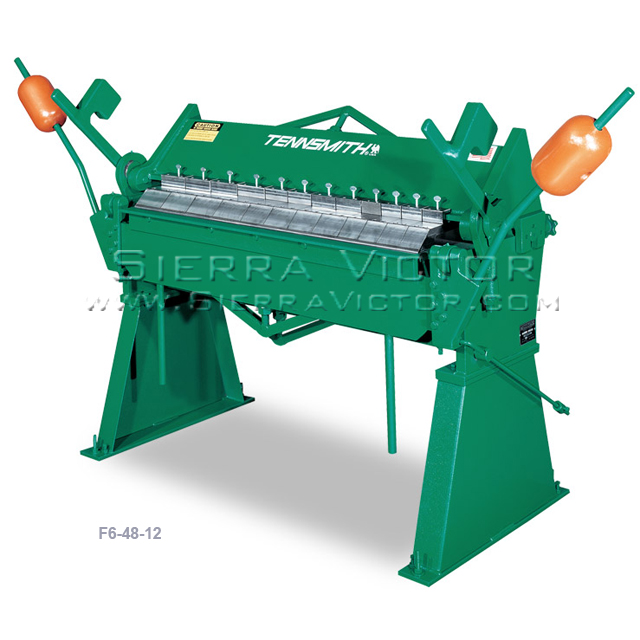

- TENNSMITH'S F6 Series box and pan brakes were designed to provide heavy-duty forming capability, along with the flexibility of removable 6-inch box depth fingers. Ample clamping and easy-to-use nose bar adjustments allow for quick setting bend radius. Welded steel plate construction and heavy truss rods and braces provide strength and rigidity.
- Other adjustment features include:
- Leveling screws and lock nuts on the pedestals
- Jack screws and tensioner bolts on the apron
- Truss rods on the apron, base and upper beam
- Fully adjustable counter balances to facilitate the bending process
- Removable apron angle and insert permit 1/4 inch reverse bends in lighter material.
- Manufacturer
- Specifications
- Options/Accessories
- 85270: Extension Fingers (pair) for F6 Models: $475.00
Right and left extension fingers form inside corners with a return flange across the top on boxes, cabinets, etc. - 85275: Open End Fingers (pair) for F6 Models: $625.00
Provides triangular, square, tapered and rectangular tube forming abilities - 85280: F6 Radius Fingers (Please Specify Radii) - per inch: $56.00
- Custom Freight
- Video
TENNSMITH 120 inch x 14 gauge Box and Pan Hand Brake F6-120-14
ITEM: 120" x 14 ga Box and Pan Hand Brake
MANUFACTURER: TENNSMITH
MODEL: F6-120-14
PART# 85250
Manufacturer:
Tennsmith
Machine Type
Machine Category:
Brakes - Box & Pan
Control:
Manual
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
14 ga
|
MODEL
|
F6-120-14
|
|
Capacity - Mild Steel
|
14 ga
|
|
Capacity - Stainless Steel
|
18 ga
|
|
Bending Length
|
120"
|
|
Maximum Lift of Beam
|
2-1/4"
|
|
Front to Rear Beam Adjustment
|
1/2"
|
|
Maximum Depth of Box
|
6"
|
|
Minimum Reverse Bend
|
1/4"
|
|
Minimum Flange in Capacity Material
|
1"
|
|
Finger Widths
|
3, 4 and 5 in.
|
|
Dimensions (LxWxH)
Counterweights in Place |
161" x 53" x 60"
|
|
Shipping Weight:
|
3,675 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
