- Description
- MADE IN USA
- TENNSMITH'S EBT Series is a versatile machine that allows for the removal and repositioning of both the upper and lower segments for forming complex parts. In addition, the EBT incorporates gas spring cylinders in lieu of traditional counterweights to assist in the bending process and the raising and lowering of the upper beam. The brake also features goat's foot style upper beam tooling.
- NOTE: The EBT Floor Model Brakes come standard with a manual slide back gauge, tool kit, and segment storage box. The EBT brakes are equipped with segmented lower base and segmented folding beam. This allows for transverse bends up to 3 inches.
- Common applications include:
- Architectural and ornamental metal forming
- Signage
- Aircraft panel fabrication
- Manufacturer
- Specifications
- Custom Freight

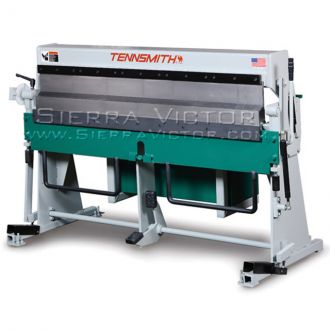

TENNSMITH 60 inch x 16 gauge Universal Hand Brake EBT6016
ITEM: 60" x 16 ga. Universal Hand Brake
MANUFACTURER: TENNSMITH
MODEL: EBT6016
PART# 85340
Manufacturer:
Tennsmith
Machine Type
Machine Category:
Brakes - Straight/Hand
Machine Sub-Category:
Universal
Control:
Manual
Metalworking
Material Length:
5 ft (60 in.+)
Mild Steel Capacity:
16 ga
|
Capacity - Mild Steel
|
16 gauge
|
|
Bending Length
|
60-1/4"
|
|
Maximum Lift of Beam
|
4"
|
|
Bending Beam Adjustment
|
1"
|
|
Minimum Reverse Bend
|
5/8"
|
|
Segmented tooling width
|
20, 12, 8, 6, 4, 1.5, 1
|
|
Maximum Box Depth
|
4-1/8"
|
|
Maximum Traverse Bend
(through tooling centers) |
2-1/4"
|
|
Overall Dimensions
|
72" x 45-1/2" x 31-1/2"
|
|
Shipping Weight:
|
1,150 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
