- Description
- Standard Industrial is 100% Owned, Operated and Manufactured In The U.S.A.
- Manual, side adjustable, quick-change blade gap adjustment
- PLC controlled backgauge
- A660 bronze bearings guaranteed for 5 years based on a 24 hour workday. These bearings easily last 15-20 years and the bronze material is always readily available.
- Under 3,000 P.S.I. system pressure that provides substantially longer system life.
- Extremely heavy-duty hold downs. Fewer hold downs = less maintenance. Hold down pressure is adjustable for your sensitive material.
- Extremely heavy duty, precision tables designed to provide the least amount of deflection and to last generations
- Incredibly strong gusseted table providing decades of reliable performance
- Complete O.S.H.A. and ANSI B11.4 Compliance
- Positive mechanical tapered gibbs for smooth uniform gap adjustment
- Easy to understand mechanical gap indicators showing exact gap placement and infinite adjustment
- Incredibly simple, easy to troubleshoot hydraulic system is fully covered by our 5 year warranty and is comprised of all readily available components
- Lifetime Parts Availability: Every component on machine is available from your local suppliers giving you a lifetime of productivity and parts
- Shadow light for precise shearing line
- PLC Touch Screen Control
- 36” or 48” Travel EXTREMELY Heavy Duty Backgauge
- Fully Loaded, Extremely Heavy Duty Table
- All 1/4” and 3/8” shears that are 12’ and shorter come standard with a manual side adjustable gap adjustment.
- Manufacturer
- Specifications
- Options/Accessories
- Optional AUTOMEC CNC Control
- Squaring Arms
- Swing Stops For Squaring Arms
- Disappearing/Gravity Stops for T-Slots
- Support Arms
- T-Slot Across Front Edge of Table
- Ball Transfers in Table
- Additional T-Slots in Table
- Additional Hand Slots in Table
- Protractor
- Full Nylatron Table Cover
- 48” travel in lieu of 36”
- Automatic Power Swing-Away Backgauge
- High Speed Hydraulic System
- Impact Pads for Hold Down Cylinders
- Additional Hold Downs
- Independent Activation of Hold Downs
- Automatic Lubrication System
- 2 Position Power Rake Adjustment
- Infinitely Variable Power Blade Gap Adjustment
- Paint Color
- Shear Blades
- Oil Cooler
- Conveyors
- Stacker
- Pneumatic Sheet Supports
- Onsite Training
- Light Curtain Safety Barriers
- Physical Barriers/Cages
- Compliance Options
- CNC Square Gauge Systems
- *Other lengths of Shears and Special Process/Cut To Length Line Shears Are Available Per Special Quote
- Custom Freight

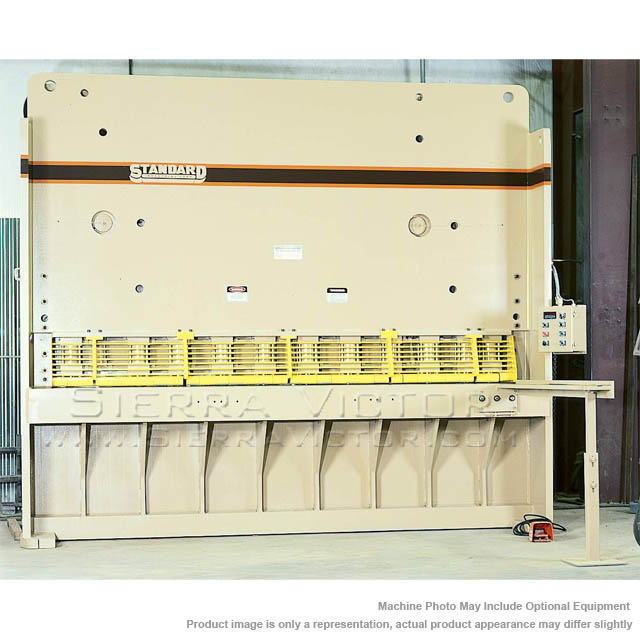

STANDARD INDUSTRIAL AS750 Hydraulic Shears
STANDARD EQUIPMENT:
ITEM: 6' - 20' x 3/4" Hydraulic Shears
MANUFACTURER: STANDARD INDUSTRIAL
MODEL: AS SERIES
PART# AS750-6 / AS750-8 / AS750-10 / AS750-12 / AS750-14 / AS750-16 / AS750-20
Manufacturer:
Standard Industrial
Machine Type
Machine Category:
Shears
Power Source:
Hydraulic
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
3/4"
Stainless Steel Capacity:
1/2"
|
MODEL
|
AS750-6
|
AS750-8
|
AS750-10
|
AS750-12
|
|
Cap. to Mild Steel (A36)
|
3/4" x 6'
|
3/4" x 8'
|
3/4" x 10'
|
3/4" x 12'
|
|
Cap. to Stainless steel
|
1/2" x 6'
|
1/2" x 8'
|
1/2" x 10'
|
1/2" x 12'
|
|
Shearing tons available
|
180
|
|||
|
# of hold down cylinders
|
7
|
9
|
11
|
13
|
|
Bore of hold downs
|
4"
|
|||
|
Hold down tons of force
|
88
|
125
|
140
|
160
|
|
Weight (lbs.)
|
30,000
|
38,000
|
44,000
|
52,000
|
|
Backgauge Travel
|
48"
|
|||
MODEL
| AS750-14
| AS750-16
| AS750-20
|
Cap. to Mild Steel (A36)
| 3/4" x 14'
| 3/4" x 16'
| 3/4" x 20'
|
Cap. to Stainless steel
| 1/2" x 14'
| 1/2" x 16'
| 1/2" x 20'
|
Shearing tons available
| 180
| ||
# of hold down cylinders
| 15
| 17
| 21
|
Bore of hold downs
| 4"
| ||
Hold down tons of force
| 180
| 205
| 250
|
Weight (lbs.)
| 80,000
| 90,000
| 145,000
|
Backgauge Travel
| 48"
| ||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR – STANDARD Parts & Limited Onsite Labor
