- Description
- This is a high performance machine ideal for drilling, tapping , boring, reaming, lapping, screwing, counter boring, spot facing, and much more, on materials such as cast iron and steel.
- 22” column diameter
- MT #6 spindle, 10 HP motor
- 98” column to spindle center
- Drilling: 3.9” cast iron, 3.1” steel
- Boring: 8.2” cast iron, 6.5” steel
- Double tube column design for extra rigidity

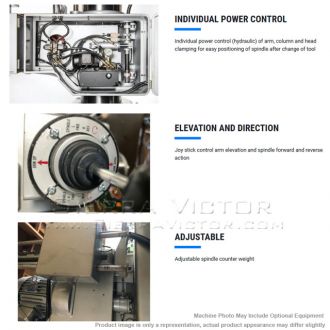

- Arm elevation controlled by hydraulic motor
- Built-in automatic tool ejector
- Safety device prevents arm from dropping even when bronze nut is worn out
- Auto reverse tapping function
- T-slots and drain channels on box table
- Box table
- Coolant system
- Work light
- 220V or 440V
- Manufacturer
- Specifications
- Options/Accessories
- Tilting table
- Custom Freight

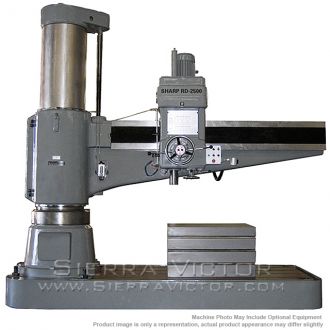

SHARP 2.56" Radial Drill RD-2500
STANDARD EQUIPMENT:
ITEM: 2.56" Radial Drill
MANUFACTURER: SHARP
MODEL: RD-2500
Manufacturer:
Sharp
Machine Type
Machine Category:
Radial Arm Drills
Diameter of column (in.) |
21.65 |
|
Distance from column surface to spindle center, max. (in.) |
98.42 |
|
Distance from column surface to spindle center, min. (in.) |
— |
|
Travel of spindle head (in.) |
78.74 |
|
Distance from base surface to spindle end, max. (in.) |
78.74 |
|
Distance from base surface to spindle end, min. (in.) |
21.65 |
|
Elevating height of arm (in.) |
39.37 |
|
Effective area of table (in.) |
39.37 x 31.49 x 22.04 |
|
Dimensions of base (in.) |
138.58 x 55.12 x 12.60 |
|
Taper hole in spindle |
MT # 6 |
|
Stoke of spindle (in.) |
17.72 |
|
R.P.M. of spindle (rpm range x steps) |
16-1,250 x 16 steps |
|
Feed of spindle (Rev. x steps) |
0.0016-0.126 in. x 16 steps |
|
Main motor (HP) |
10 HP |
|
Elevating motor (HP) |
5 HP |
|
Coolant Equipment (HP) |
0.25 HP |
|
Machine height from floor, max. (ft.) |
13.09 |
|
Base + Column Height (ft.) |
12.63 |
|
Shipping Dimensions (L x W x H) (ft.) |
13.12 x 5.25 x 12.63 |
|
Net Weight (lbs.) |
24,200 |
|
Shipping Weight (lbs.) |
27,500 |
|
Cast Iron |
Drilling (in.) |
3.15 |
Capacity Tapping (in.) |
3.94 |
|
Steel |
Drilling (in.) |
2.56 |
Capacity Tapping (in.) |
2.95 |
|
Total Power Consumption |
220V |
18KVA/50 amps |
440V |
18KVA/25 amps |
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
