- Description

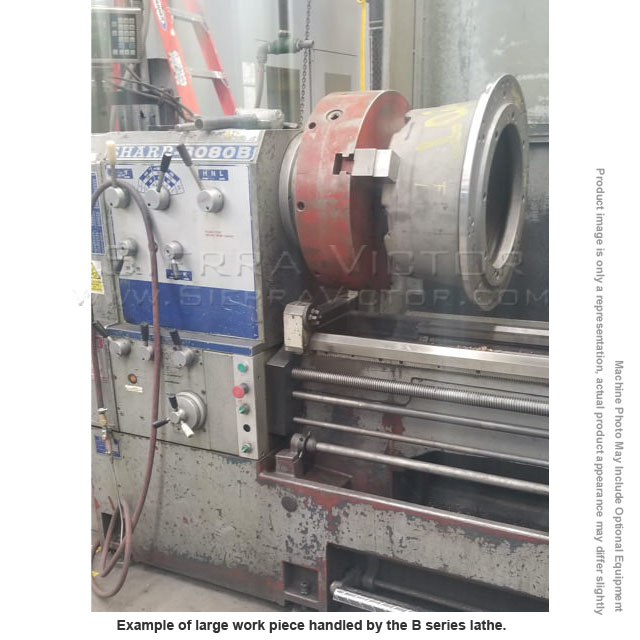

- This model has 4.5” spindle bore, D1-11 Camlock spindle nose, 16” wide bed, 15 HP motor offers great capacity for large work piece. The low speed goes down to 10 rpm offering enough torque for heavy cutting.
- D1-11 camlock spindle
- 4.5" spindle bore
- 15 HP motor
- 12 speeds (10-1,000 rpm)
- Quick change gearbox
- One piece Meehanite cast bed
- Direct selection for inch / metric threads
- Double chucks available as option
- 4.5” spindle bore , largest spindle in this size lathes. More choices for different diameter of materials to be machined.

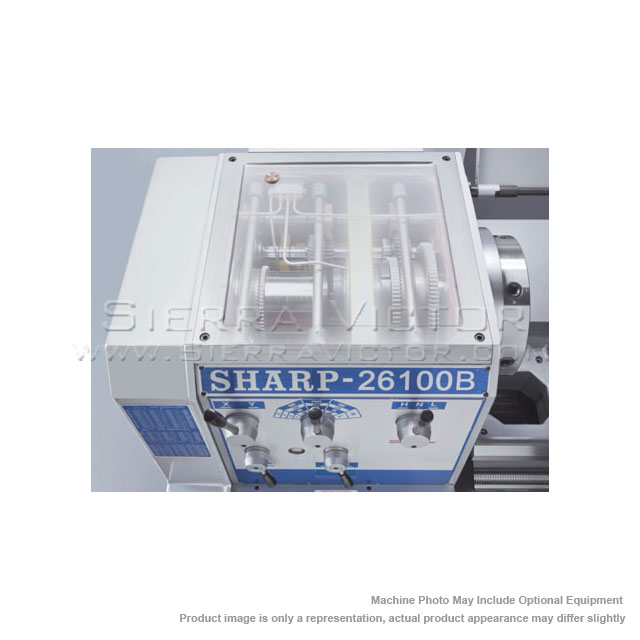

- All headstock gears are hardened and ground made from Chrome-Moly material gives long lasting power and accuracy in machining
- High precision pair of matched angular contact bearings supporting the front end of head stock, and rolling bearing for the rear end support. This arrangement allows high accuracy of the spindle even under heavy cutting conditions.
- Wide range of feeds and threads. Selection done by “pull and lock” handles to avoid slipping in engagement of gears.

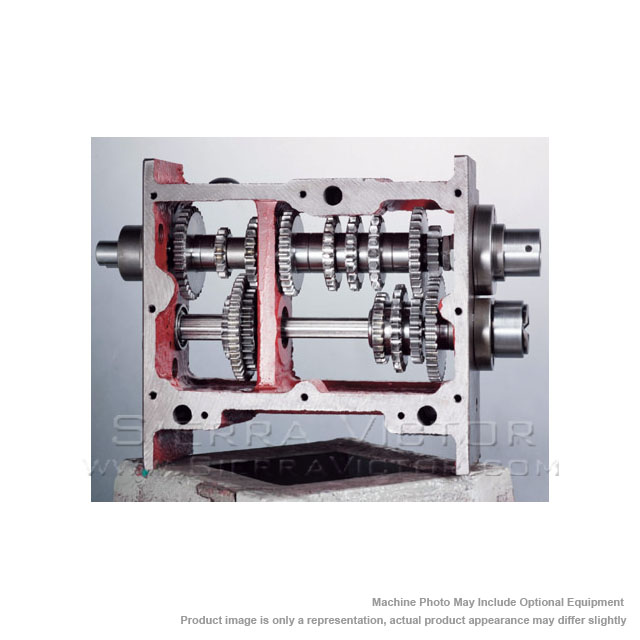

- Gears in gearboxes are supported at 3 points with high precision bearings to ensure long lasting feeds and threading operations
- Feed gears are mounted on spline shafts for adequate feed power
- One piece casting bed instead of sheet metal connected legs ensure dampening of vibration and permanent straightness of the bed ways.
- The carriage is coated with TURCITE for better oil retention and for minimum bedwear, longer life.
- The removable gap increases the swing by an extra 9” to accommodate larger work pieces that are short in length
- Jog button is equipped at headstock for easy engagement of gears before cutting
- 5” spindle bore, largest spindle in this size lathes. More choices for different diameter of materials to be machined.
- All headstock gears are hardened and ground made from Chrome-Moly material gives long lasting power and accuracy in machining
- High precision pair of matched tapered roller bearings supporting the front end of head stock, and ball bearing for the rear end support. This arrangement allows high accuracy of the spindle even under heavy cutting conditions.
- 4-jaw 16" chuck, face plate (20")
- Steady rest (4" – 11.5"), 4 ways tool post
- Coolant system, halogen light
- 4-way carriage stop
- Splash guard & 16" chuck guard
- Tailstock, follow rest, tool kit
- Rapid transverse on longitudinal (on 100" centers distance and up only)
- Wired 220V or 440V
- Manufacturer
- Specifications
- Options/Accessories
- 3-jaw chuck, different sizes
- 4-jaw chuck, different sizes
- Taper attachment
- Chuck guard w/ limit switch
- Tool guard w/ limit switch,at front of compound
- Lead screw wrapped around screw (accordion style)
- Lead screw guard, cover entire front of machine bed
- Safety cover at the end of spindle
- UL or CSA electrical components, UL spindle motor, CSA pump motor
- Steady rest
- Quick change tool holder (aloris) (7 pcs holder) 1.25" tool
- Live center – (dual bearing) MT #5
- 5C lever collet closer
- 5C collet set (1/8 to 1/16" x 1/16" ) (16 pcs)
- Micrometer carriage stop
- Roller jaws set (3 pc)
- Custom Freight

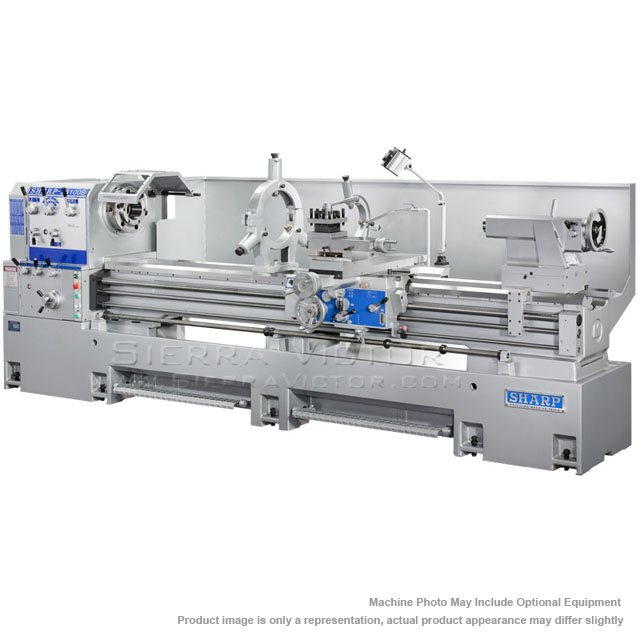

SHARP 22" x 40" - 160" B-Series Precision Lathes
STANDARD EQUIPMENT:
ITEM: 22" x 40" - 160" Precision Lathes
MANUFACTURER: SHARP
MODEL: 2240B / 2260B / 2280B / 22100B / 22120B / 22160B
Manufacturer:
Sharp
Lathes
Lathe Size:
20" x 40"
Lathe Type:
Precision
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Precision
|
MODELS
|
|
2240B
|
2260B
|
|
CAPACITY
|
Swing over bed
|
22 in. (558.8 mm)
|
|
|
Swing over cross slide
|
13.2 in. (335.28 mm)
|
||
|
Swing over gap
|
31 in. (787.4 mm)
|
||
|
Distance between centers
|
40 in.
(1,016 mm) |
60 in.
(1,524 mm) |
|
|
HEADSTOCK
|
Spindle Speed
|
10-1,000 rpm
|
|
|
No. of Spindle Speeds
|
12
|
||
|
Spindle nose
|
D1-11 camlock
|
||
|
Spindle bore
|
4.5 in. (114.3 mm)
|
||
|
THREADS & FEEDS
|
Inch Threads, Number
|
2-56 tpi, 44
|
|
|
Metric Threads, Number
|
0.5-14 mm, 24
|
||
|
Modular Threads, Number
|
0.019-0.55 in., 24 (0.5-14 mm, 24)
|
||
|
Diametral Pitch Threads, Number
|
0.157-2.20 in., 36 (4-56 mm, 36)
|
||
|
Longitudinal Feeds
|
0.0022-0.032 in., 17 (0.055-0.812 mm, 17)
|
0.0022-0.032 in., 18
(0.055-0.812 mm, 18) |
|
|
Cross Feeds
|
0.00026-0.035 in., 17
(0.0066-0.889 mm, 17) |
||
|
Leadscrew Pitch, Diameter
|
4 tpi, 1.5 in.
|
||
|
CARRIAGE
|
Cross slide travel
|
14.75 in. (374.6 mm)
|
|
|
Compound Travel
|
8 in. (203.2 mm)
|
||
|
Compound Width
|
6 in. (152.4 mm)
|
||
|
BED
|
Bed length
|
n/a
|
|
|
Bed width
|
15.75 in. (400.05 mm)
|
||
|
TAILSTOCK
|
Quill Diameter
|
3 in. (76.2 mm)
|
|
|
Quill Travel
|
6.5 in. (165.1 mm)
|
||
|
Quill Center Taper
|
MT #5
|
||
|
GENERAL
|
Spindle Motor
|
15 HP (11.18 Kw)
|
|
|
Voltage
|
220V/440V
|
||
|
Phase
|
3 phase
|
||
|
Power Consumption (220V)
|
16KVA/45 amps
|
||
|
Power Consumption (440V)
|
16KVA/22.5 amps
|
||
|
Approximate Weight
|
5,280 lbs.
(2,394.9 Kg) |
5,610 lbs.
(2,544.6 Kg) |
|
|
Dimensions
|
7.08' x 3.41' x 4.16'
|
9.5' x 3.41' x 4.16'
|
|
|
MODELS
|
|
2280B
|
22100B
|
|
CAPACITY
|
Swing over bed
|
22 in. (558.8 mm)
|
|
|
Swing over cross slide
|
13.2 in. (335.28 mm)
|
||
|
Swing over gap
|
31 in. (787.4 mm)
|
||
|
Distance between centers
|
80 in.
(2,032 mm) |
100 in.
(2,540 mm) |
|
|
HEADSTOCK
|
Spindle Speed
|
10-1,000 rpm
|
|
|
No. of Spindle Speeds
|
12
|
||
|
Spindle nose
|
D1-11 camlock
|
||
|
Spindle bore
|
4.5 in. (114.3 mm)
|
||
|
THREADS & FEEDS
|
Inch Threads, Number
|
2-56 tpi, 44
|
|
|
Metric Threads, Number
|
0.5-14 mm, 24
|
||
|
Modular Threads, Number
|
0.019-0.55 in., 24 (0.5-14 mm, 24)
|
||
|
Diametral Pitch Threads, Number
|
0.157-2.20 in., 36 (4-56 mm, 36)
|
||
|
Longitudinal Feeds
|
0.0022-0.032 in., 18
(0.055-0.812 mm, 18) |
||
|
Cross Feeds
|
0.00026-0.035 in., 17
(0.0066-0.889 mm, 17) |
||
|
Leadscrew Pitch, Diameter
|
4 tpi, 1.5 in.
|
||
|
CARRIAGE
|
Cross slide travel
|
14.75 in.
(374.6 mm) |
11.8 in.
(299.72 mm) |
|
Compound Travel
|
8 in. (203.2 mm)
|
6.2 in.
(157.48 mm) |
|
|
Compound Width
|
6 in. (152.4 mm)
|
||
|
BED
|
Bed length
|
n/a
|
130.5 in.
(3,314.7 mm) |
|
Bed width
|
15.75 in. (400.05 mm)
|
||
|
TAILSTOCK
|
Quill Diameter
|
3 in. (76.2 mm)
|
|
|
Quill Travel
|
6.5 in. (165.1 mm)
|
||
|
Quill Center Taper
|
MT #5
|
||
|
GENERAL
|
Spindle Motor
|
15 HP (11.18 Kw)
|
|
|
Voltage
|
220V/440V
|
||
|
Phase
|
3 phase
|
||
|
Power Consumption (220V)
|
16KVA/45 amps
|
||
|
Power Consumption (440V)
|
16KVA/22.5 amps
|
||
|
Approximate Weight
|
6,380 lbs.
(2,893.9 Kg) |
6,930 lbs.
(3,143.3 Kg) |
|
|
Dimensions
|
11.41' x 3.41' x 4.16'
|
13.08' x 3.41' x 4.16'
|
|
|
MODELS
|
|
22120B
|
22160B
|
|
CAPACITY
|
Swing over bed
|
22 in. (558.8 mm)
|
|
|
Swing over cross slide
|
13.2 in. (335.28 mm)
|
||
|
Swing over gap
|
31 in. (787.4 mm)
|
31, 12 in.
(787.4, 304.8 mm) |
|
|
Distance between centers
|
120 in.
(3,048 mm) |
160 in.
(4,064 mm) |
|
|
HEADSTOCK
|
Spindle Speed
|
10-1,000 rpm
|
|
|
No. of Spindle Speeds
|
12
|
||
|
Spindle nose
|
D1-11 camlock
|
||
|
Spindle bore
|
4.5 in. (114.3 mm)
|
||
|
THREADS & FEEDS
|
Inch Threads, Number
|
2-56 tpi, 44
|
|
|
Metric Threads, Number
|
0.5-14 mm, 24
|
||
|
Modular Threads, Number
|
0.019-0.55 in., 24 (0.5-14 mm, 24)
|
||
|
Diametral Pitch Threads, Number
|
0.157-2.20 in., 36 (4-56 mm, 36)
|
||
|
Longitudinal Feeds
|
0.0022-0.032 in., 18
(0.055-0.812 mm, 18) |
||
|
Cross Feeds
|
0.00026-0.035 in., 17
(0.0066-0.889 mm, 17) |
||
|
Leadscrew Pitch, Diameter
|
4 tpi, 1.5 in.
|
||
|
CARRIAGE
|
Cross slide travel
|
11.8 in. (299.72 mm)
|
|
|
Compound Travel
|
6.2 in.
(157.48 mm) |
7.8 in.
(198.12 mm) |
|
|
Compound Width
|
6 in. (152.4 mm)
|
||
|
BED
|
Bed length
|
153 in.
(3,886.2 mm) |
183 in.
(4,648.2 mm) |
|
Bed width
|
15.75 in. (400.05 mm)
|
||
|
TAILSTOCK
|
Quill Diameter
|
3 in. (76.2 mm)
|
|
|
Quill Travel
|
6.5 in. (165.1 mm)
|
||
|
Quill Center Taper
|
MT #5
|
||
|
GENERAL
|
Spindle Motor
|
15 HP (11.18 Kw)
|
|
|
Voltage
|
220V/440V
|
||
|
Phase
|
3 phase
|
||
|
Power Consumption (220V)
|
16KVA/45 amps
|
||
|
Power Consumption (440V)
|
16KVA/22.5 amps
|
||
|
Approximate Weight
|
7,960 lbs.
(3,610.5 Kg) |
10,626 lbs.
(4,819.8 Kg) |
|
|
Dimensions
|
13.08' x 3.41' x4.16'
|
18.83' x 3.41' x 4.16'
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
