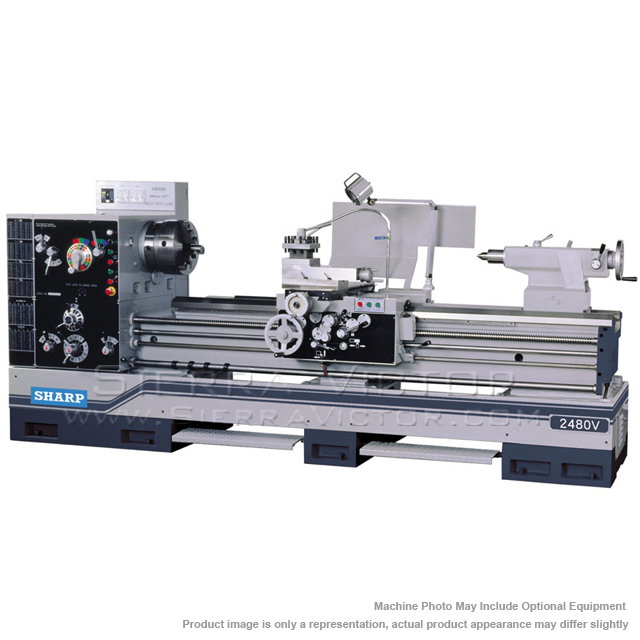

SHARP 24" x 80" - 160" V-Series Heavy Duty Precision Lathes 2480V, 24120V, 24160V

• The model heavy duty lathe has 4-1/8” spindle bore, D1-11 Camlock spindle head,19” wide bed and wide range of threading capacity. Coarse thread reaches ¼ “ TPI.

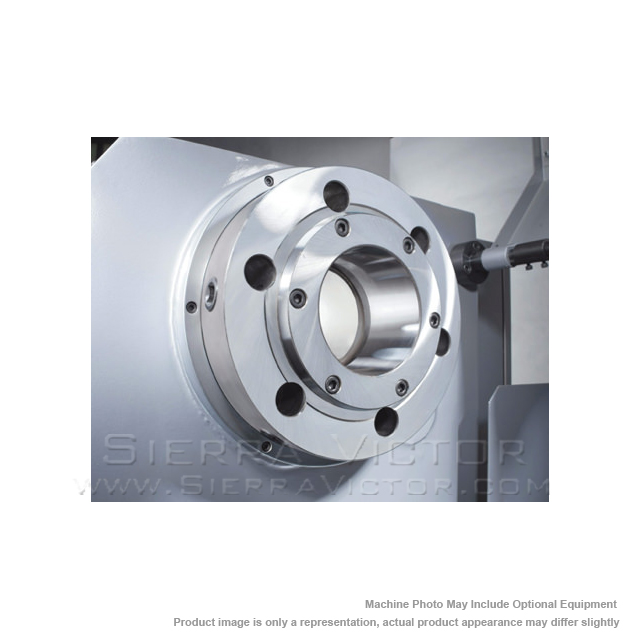

• D1-11 camlock spindle
• Clutch type geared head
• 4-1/8" spindle bore
• 15 hp motor
• 18 speeds (10-1,200 rpm)
• Wide thread range (1/4 tpi – 84 tpi)
• 19" wide bed
• Multiple leads thread indicator
• 125" spindle bore, largest spindle in this size lathes. More choices for different diameter of materials to be machined.
• All headstock gears are hardened and ground made from Chrome-Moly material gives long lasting power and accuracy in machining
• High precision pair of matched angular contact bearings supporting the front end of head stock, and rolling bearing for the rear end support. This arrangement allows high accuracy of the spindle even under heavy cutting conditions.
• Wide range of feeds and threads. Selection done by “pull and lock” handles to avoid slipping in engagement of gears.

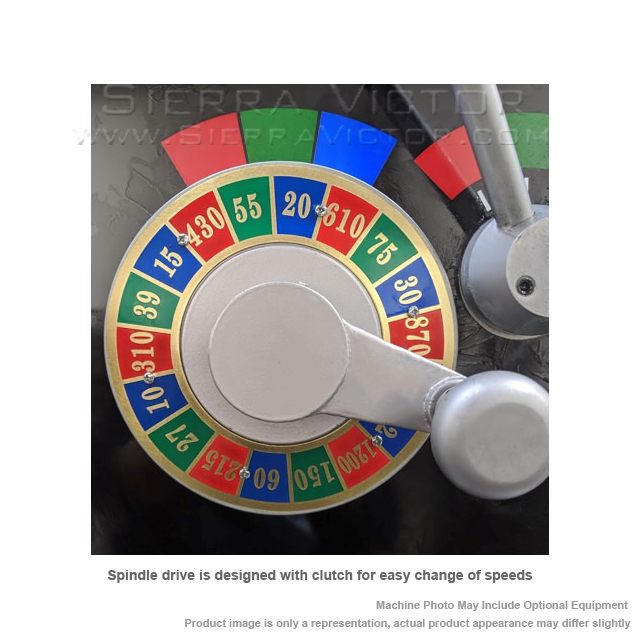

• Spindle drive is designed with clutch for easy change of speeds
• One piece casting bed instead of sheet metal connected legs ensure dampening of vibration and permanent straightness of the bed ways.
• The carriage and cross slide ways are lubricated by push button knobs.
• The removable gap increases the swing by an extra 8” to accommodate larger work pieces that are short in length
• Jog button is equipped at headstock for easy engagement of gears before cutting

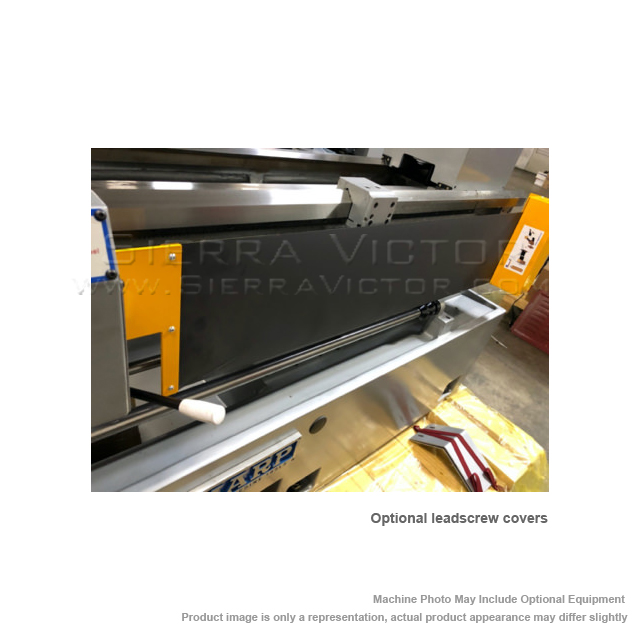

• 2 types of optional leadscrew covers:
  • Accordion type – that wrapped around the leadsrew
  • Full coverage type – as shown in the photo that covers the entire front of the machine bed

STANDARD ACCESSORIES:

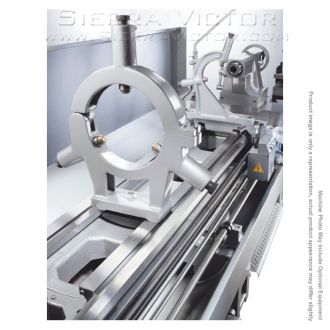

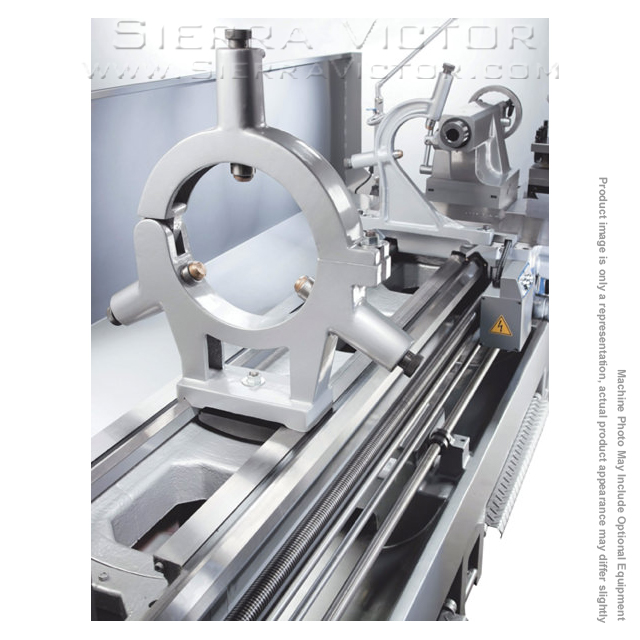

• Steady rest with roller jaws
• Face plate 20"
• Coolant system
• Longitudinal carriage stop
• Halogen work light
• Tailstock with 2 speeds on quill
• Wired 220V or 440V
