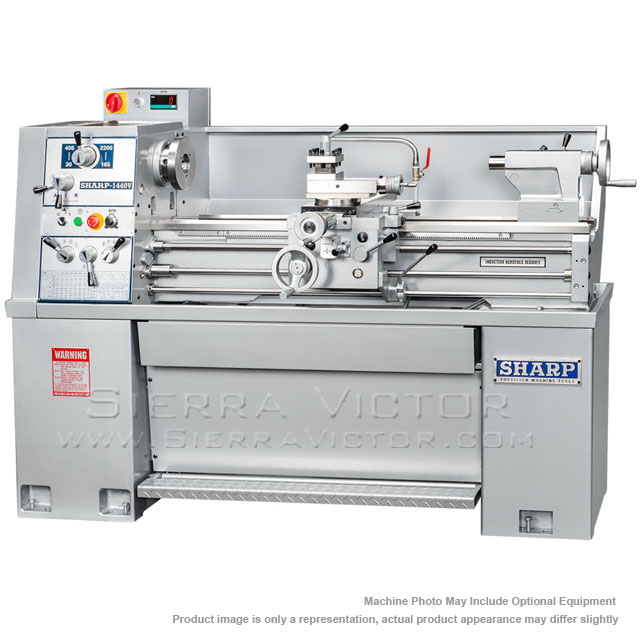

SHARP 14" x 40" Variable Speed Precision Lathe 1440V

• The 14” swing precision lathe offer simple and easy operation for doing light work with all the features as a larger engine lathe. The economy value is ideal for schools, training for the next generation of skilled workers. It is also ideal for individual home machine shops. The electrics will accept single phase power supply.
• 14” swing, 40” between centers
• Digital variable speed (DVS) drive system
• Spindle speed 30-2,200 RPM,
• 1.5” spindle bore, D1-4 Camlock spindle
• Hardened and ground spindle
• Hardened and ground chrome-Moly gears

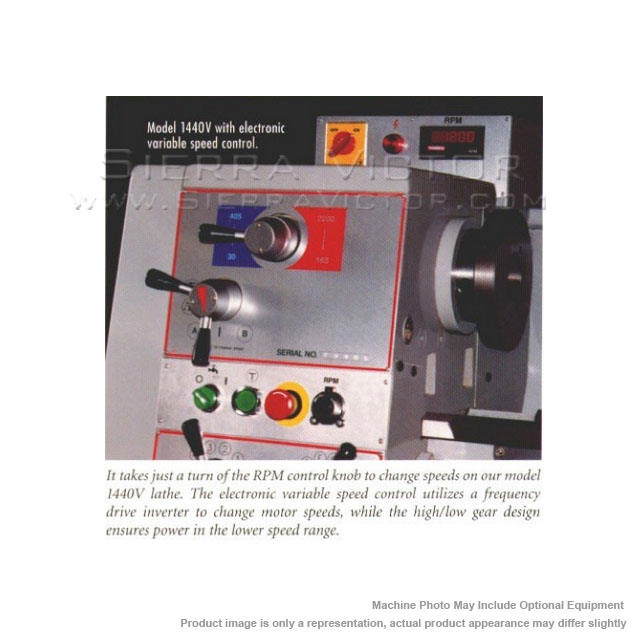

• The variable speed headstock is designed with hi-low gear to offer better torque at the lower speed range. Change of the hi-low speed is done by shifting a lever. The rest of the speeds change are done by simply turning a knob. The headstock is equipped with jog button for engaging the gears before turning on the spindle to full speed.

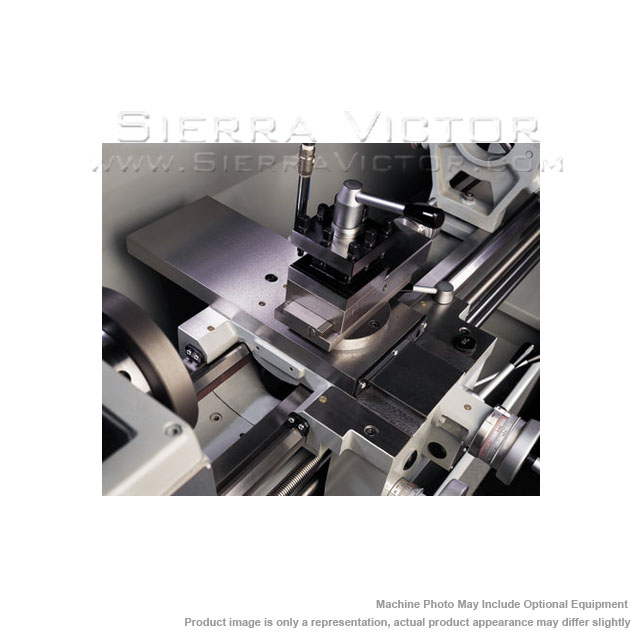

• This is a digital variable speed machine with Chrome-Moly material gears mounted on tapered roller bearings. The gears, bearings and shaft are lubricated by forced lubrication system. The top of the cross slide is hardened and ground for long term usage without scratching. The gap bed allows larger swing but short work piece to be machined near the headstock without changing to a larger swing machine. The tailstock is designed with the “tang” for easy knock off of centers.
• Machine is available as a package with 2 axes digital readout system, chuck guard with limit switch, steady rest, follow rest and work light at a fixed price.

STANDARD EQUIPMENT:

• 3-jaw 8" chuck, steady rest
• Removable gap, back plate
• Coolant system, 4 way toolpost
• Full length splash guard
• Center sleeves, dead center, tool kit
• Wired 220V or 440V
