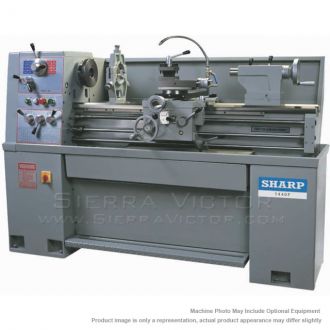

SHARP 14" x 40" Geared Head Precision Lathe 1440F

• The 14” swing precision lathe offer simple and easy operation for doing light work with all the features as a larger engine lathe. The economy value is ideal for schools, training for the next generation of skilled workers. It is also great for general machine shops, maintenance shops and individual workshops.
• 3 HP motor speeds (45-1800 rpm)
• 16 Speeds (40-1,800 rpm)
• D1-4 camlock spindle 1 ½” bore
• Gap bed
• Hardened and ground chrome-moly gears

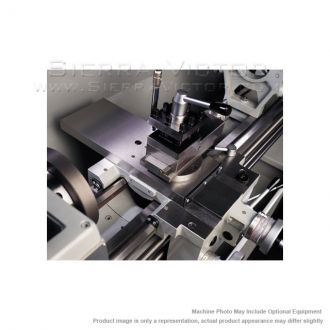

• This is a geared head machine with Chrome-Moly material gears mounted on tapered roller bearings. The gears, bearings and shaft are lubricated by forced lubrication system. The top of the cross slide is hardened and ground for long term usage without scratching. The gap bed allows larger swing but short work piece to be machined near the headstock without changing to a larger swing machine. The tailstock is designed with the “tang” for easy knock off of centers.
• Machine is available as a package with 2 axes digital readout system, chuck guard with limit switch, steady rest, follow rest and work light at a fixed price.

STANDARD EQUIPMENT:

• 3-jaw 8" chuck, steady rest
• Removeable gap, back plate
• Coolant system, 4 way toolpost
• Full length splash guard
• Center sleeves, dead center, tool kit
• Wired 220V or 440V
