- Description
- This toolroom lathe for sale is ideal for small parts especially for those that requires threading. It offers very high precision (0.000050” TIR) and fast turn around time for machining tiny parts.
- Digital variable speed (DVS) drive system
- High speed spindle 130-4,000 RPM, accuracy within 50 millionth TIR
- Hardened and ground spindle

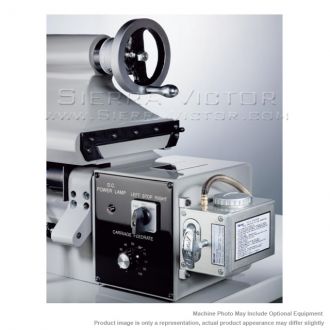

- Independent electric feed rate control on carriage and cross slide

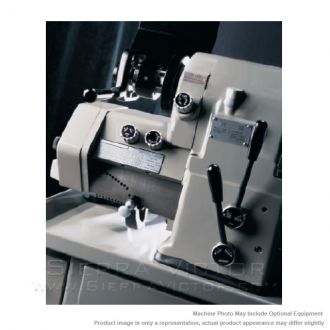

- Quick change inch/metric gearbox with 36 changes
- Spindle supported by paired angular contact bearings
- Quick action slide for threading
- One piece alloy steel material, hardened and ground dovetail
- Bedways with Turcite on carriage & bed for oil retention
- Adjustable thread length control stops
- Hardened and ground leadscrews
- Splash guard

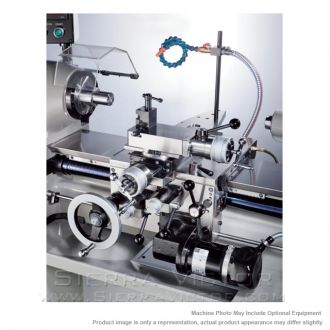

- Coolant system
- 5C collet closer
- 5C collet holder (2)
- Chuck guard
- Spindle nose cover
- Leadscrew cover
- American tool post
- Drive dog & gear
- Adjustable tool setting gauges
- Halogen work light
- Drive plate
- Headstock center
- Manufacturer
- Specifications
- Options/Accessories
- 3-jaw 6" chuck with 6" fixture plate
- 4-jaw 6" chuck with 6" fixture plate
- 6-jaw chuck with 6" fixture plate
- 3-jaw 6" zero set chuck with fixture plate
- 4-jaw 6" chuck with fixture plate
- 6-jaw chuck with 6″ fixture plate
- 380V, 440V, 575V transformer
- 5C collet set (1/8" to 1-1/16" by 1/16") 16 sets
- 7" face plateQuick change tool holder set 7 sets
- Vertical cut-off slide
- Taper attachment
- Steady rest
- Follow rest
- Micrometer cartridge stop with bracket
- Dorian tool-MT #2
- Dorian tool-MT #2
- Drill chuck & arbor
- Custom Freight
- Video
SHARP 11" x 18" High Precision Tool Room Lathe 1118H
STANDARD EQUIPMENT:
ITEM: 11" x 18" High Precision Tool Room Lathe
MANUFACTURER: SHARP
MODEL: 1118H
Manufacturer:
Sharp
Lathes
Lathe Size:
11" x 18"
Lathe Type:
Toolroom
Machine Type
Machine Category:
Lathes
Machine Sub-Category:
Toolroom
SPINDLE CAPACITY |
With Jaw Chucks (in.) |
6 |
With Expanding Collets (in.) |
3 |
|
With Round 5C Collets (in.) |
1-1/16 |
|
With Step Chucks (in.) |
1-1/16 - 6 |
|
GENERAL CAPACITY |
Swing Over Bed (in.) |
11 |
Swing Over Cross Slide (in.) |
6 |
|
Distance Between Centers (in.) |
18 |
|
HEADSTOCK |
Spindle Speed |
50 - 4000 rpm |
No. of Spindle Speeds |
Variable |
|
Spindle Nose Diameter (in.) |
2.19 |
|
Spindle Bore (in.) |
1-1/4 |
|
Spindle Nose ID/OD |
5C 10°/4° taper |
|
THREADS & FEES |
Inch Threads, Number |
11 - 108 tpi |
Metric Threads, Number |
0.275 - 2.7 |
|
Longitudinal Feeds |
0.31 - 7 ipr |
|
Cross Feeds |
0.18 - 4 ipr |
|
Leadscrew Pitch, Diameter |
8 tpi, 1 in. |
|
CARRIAGE |
Cross Slide Travel (in.) |
6 |
Compound Slide Travel (in.) |
3 |
|
Quick Action Compound Travel (in.) |
0.1 |
|
TAILSTOCK |
Quill Diameter (in.) |
1.35 |
Quill Travel (in.) |
3.75 |
|
Quill Center Taper |
MT #2 |
|
GENERAL |
Spindle Motor |
5 HP |
Voltage |
220V, 440V |
|
Phase |
3 Ph (no 1 Ph) |
|
Coolant Pump Motor |
0.167 HP |
|
Carriage Feed Motor (DC) |
220V |
|
Approximate Weight |
1,804 lbs |
|
Dimensions (ft.) |
6.07 x 2.46 x 5.58 |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
