- Description
- This motorised 66 ton workshop press has a movable cylinder (left-right) and an in-height adjustable working table. Equipped with pressure regulation, 2 speeds, joystick and a hand pump for precision pressing.
- Smooth & precise, heavy-duty and versatile; This hydraulic press is industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.
- The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. Built for the big jobs as well as the small ones; the adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible.
- Meets CE Standards, manufactured in the Netherlands & comes with our 3-year warranty.
- Heavy Duty All-Steel Construction
- Industrial Grade Hydraulic System
- Ram Moves Laterally for Added Versatility
- 3 Ram Speeds
- 15" of Vertical Ram Travel
- Joystick Operation with Hand Pump Option
- Removable Ram Cap to Accept a Wide Variety of Tooling
- Open-side frame design allows for material to pass through
- Adjustable H-Frame Table Height Offers Increased Versatility
- Hydraulic-assist adjustable work table for maximum operator safety
- Set of V-blocks to simplify your pressing jobs
- Pressure gauge to monitor force
- Meets CE Standards
- Three-year warranty
- Made in the Netherlands
- Set of V-Blocks
- Manufacturer
- Specifications
- Options/Accessories
- PP100007 - 66 TON V-BLOCK SET: $720.00
- 800150 - MANDREL SET OF Ø 18, 33, 45, 58, & 72mm (Requires mandrel piston head): $465.00
- 800160 - MANDREL PISTON HEAD-66: $260.00
- Custom Freight

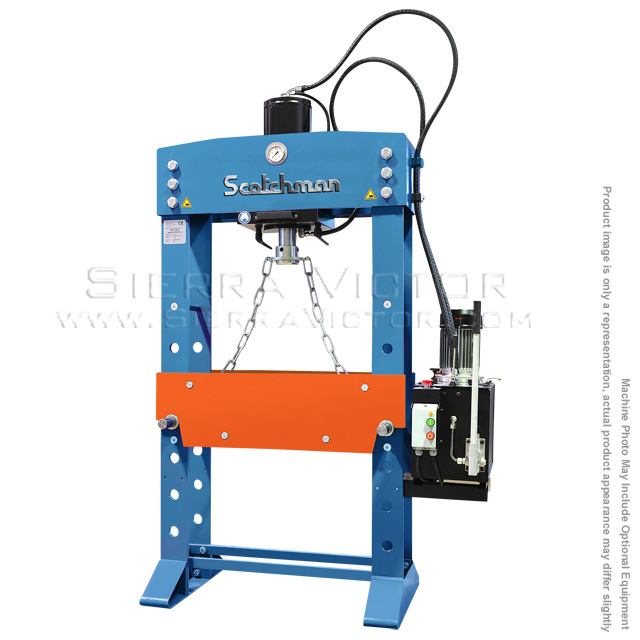

SCOTCHMAN 66 Ton Hydraulic Press PressPro 66
STANDARD ACCESSORIES:
ITEM: 66 Ton Hydraulic Press
MANUFACTURER: SCOTCHMAN
MODEL: PressPro 66
Manufacturer:
Scotchman
Machine Type
Machine Category:
Presses
Machine Sub-Category:
Shop/H-Frame
Power Source:
Hydraulic
Metalworking
Pressure:
60+ Tons
Capacity |
66 Tons |
Motor |
2 HP (available 230/460v 3ph - specify) |
RPM |
3000 |
Ram Speed-Approach |
21 ipm |
Ram Speed-Press |
5 ipm |
Ram Speed-Return |
25 ipm |
Open Height - Min. |
7-3/4" |
Open Height - Max. |
37-1/4" |
Stroke |
15" |
Lateral Ram Slide |
Yes |
Width Between Uprights |
29-1/2" |
Width Between Table Channels |
10-1/4" |
Table Height |
Adjustable |
Footprint (LxW) |
51-3/4" x 31-3/4" |
Height Overall |
81-1/2" |
Weight (including V-blocks) |
1,266 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
