- Description

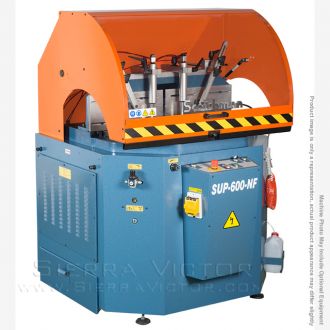

- The SCOTCHMAN SUP-600 NF is an Upcut Circular Cold Saw designed specifically for cutting non-ferrous material. Featuring a 24" (600mm), 132 tooth carbide blade that is capable of producing round cuts up to 9" in diameter and rectangular cuts up to 15" x 6", the SUP-600 NF offers an increased cutting capacity not found in similar Scotchman models.
- Standard features of the SUP-600 NF upcut saw for sale include an adjustable feed rate, mitering capability of 22.5 degrees Left and 0 degrees Right, four pneaumatic clamps to secure material being cut and integrated debris collection. Standard safety features include dual hand operations and a safety interlock that will prevent the saw from operating if the safety hood is not closed.
- The SUP-600 NF can also be coupled with our AngleMaster Measuring System to give you a true production machine. The SUP-600 NF is available in 230 volt and 460 volt configurations and is back by Scotchman Industries' Best-in-the-Business, 3-year warranty.
- Non-Ferrous Upcut Saw designed for aluminum, PVC, copper, etc.
- Precision Miter Upcut Non-ferrous Saw
- Safety Hood with Safety Switch that will not allow Saw to run with Hood Open
- Power Hood (SUP-600 NF)
- Blade Door with Safety Interlock Switch
- Dual Palm Buttons
- Adjustable Feed Rate on Saw Head
- Two Horizontal Pneumatic Clamps
- Two Vertical Pneumatic Clamps
- Miter Capability 22.5° Left, 90° Straight, 0° Right
- Capable of Slotting
- Moveable Back Fence for Larger Capacity
- One Gallon Coolant
- Coolant Tank with Mist Lubrication
- One 24" (600 mm) diameter Blade
- One Blade Wrench
- Air Hose
- Chip Collection Drawer in Base and a 4-3/4" Chip Collection Port
- Adjustable Leveling Pads
- 230 or 460 volt/3-ph Electrics (must specify voltage)
- Warranty: Three Years on Parts
- Made in Spain
- Manufacturer
- Specifications
- Options/Accessories
- Carbide-Tipped Blades
- Carbide-Tipped Blade Sharpening
- Chip Vacuum - V-460: Ideal for collecting steel, dust, aluminum and plastic shavings.
- Standard features include:
- 27 gallon storage with quick release handle
- Air filter shaker turbine
- 2hp motor
- 706 cfm air flow through a 4" inlet
- RG Angle Master: This upcut saw coupled with the Angle Master creates a semi-automatic programmable saw system that automatically rotates to any cut angle, pushes material into the saw & automatically rotates to the next desired angle. (It gives you a completely finished part.) Plus, you can store cut lists on its 17" touch screen control.
- RG Digital Quick Stop: Available in 8' and 12' lengths. This Digital Quick Stop is an entry level programmable sop. It is priced right, yet very durable. Setup is as easy as entering the desired cut length and pressing go!
- 60" or 120" Material Stop Roller Conveyor Mounted with an Advanced Measuring Quick-Loc System: Designed for quick, easy and accurate length setting. Available left to right or right to left material feed.
- Custom Freight
SCOTCHMAN 24 inch Non-Ferrous Upcut Circular Cold Saw SUP-600 NF
ITEM: 24" Non-Ferrous Upcut Circular Cold Saw
MANUFACTURER: SCOTCHMAN
MODEL: SUP-600 NF
Manufacturer:
Scotchman
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Cold/Circular
Material Type:
Non-Ferrous
Metalworking
Saw Capacity:
24"+

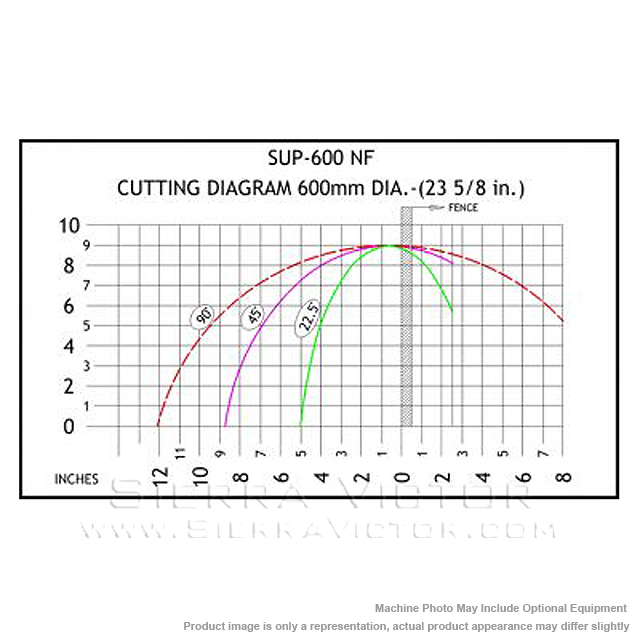

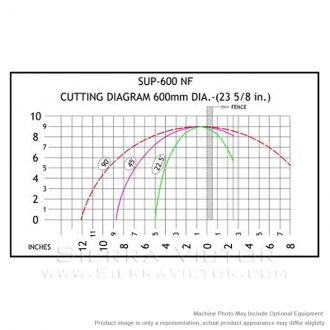

Cutting Capacities |
90° |
Round |
9" (230 mm) |
Square |
8" (203 mm) |
||
Rectangle |
15" x 6" (381 x 152 mm) |
||
45° |
Round |
9" (230 mm) |
|
Square |
7" (177 mm) |
||
Rectangle |
10" x 4" (250 x 100 mm) |
||
Cutting Speed |
3,000 RPM |
||
Motor Rate |
5.5 HP |
||
Factory Wired (SPECIFY) |
230V 3-ph OR 460V 3-ph |
||
Maximum Diameter Blade |
24" (600 mm) |
||
Arbor Bore |
1.97" (50 mm) |
||
Dimensions |
Width |
51-1/4" |
|
Depth |
48" |
||
Height |
(Top of Hood) 64-3/8" |
||
Shipping Weight |
1,102 lbs. (500 kg) |
||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
