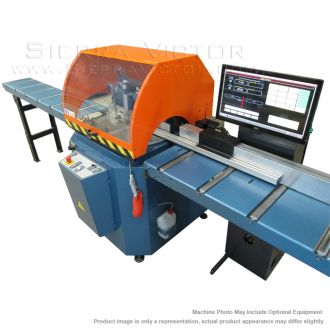

SCOTCHMAN 24 inch Non-Ferrous Upcut Circular Cold Saw w/AngleMaster Measuring System SUP-600 ANGLEMASTER

• Coupling this saw with our new AngleMaster measuring system, creates a semi-automatic programmable saw system that automatically rotates to any cut angle, pushes the material into the saw and automatically rotates to the next desired angle. (It gives you a completely finished part.) Plus, you can store cut lists in its 21" touch screen control. A MUST SEE for the aluminum extrusion market.
• Standard features include an adjustable feed rate, mitering capability with fixed stops at 22.5 degrees, 45 degrees, 90 degrees, -45 degrees and -22.5 degrees, two horizontal and two vertical pneumatic clamps to secure material being cut and a 4-1/2" port for chip collection plus a drawer under the bottom of the saw. The SUP-600 NF is available in 230 volt and 460 volt configurations and is backed by Scotchman's superior warranty.
• Non-Ferrous Upcut Saw designed for Aluminum, PVC, Copper, etc.
• The AngleMaster System Push Feeds your Stock to the Miter Saw which is Automatically Rotated to the Angle Designated for your Part. Right to Left Feed Only!
• Feed Available - 10' to 30'
• Touch Screen Controls
• Software (Includes Profile Screen)
• Job Storage
• Precision Miter Upcut non-ferrous Saw
• Powered Safety Hood with Safety Switch that will not allow Saw to run with Hood Open
• Blade Door with Safety Interlock Switch
• Dual Palm Buttons
• Adjustable Feed Rate on Saw Head
• Two Horizontal Pneumatic Clamps
• Two Vertical Pneumatic Clamps
• Miter Capability
• Capable of Slotting
• One Gallon Coolant
• Coolant Tank with Mist Lubrication
• One 24" (600 mm) diameter, 132-tooth Carbide Blade (SUP-600 NF)
• One Blade Wrench
• Air Hose
• Chip Collection Drawer in Base and a 4-3/4" Chip Collection Port
• Adjustable Leveling Pads
• 230 or 460 volt/3-ph electrics, (must specify voltage)
• Two-year Warranty on Parts (SUP Saw)
• One-year Warranty on Parts (AngleMaster)
• Saw made in Spain/AngleMaster made in Ames, IA
