- Description
- The SUP-500 is an Upcut Circular Cold Saw designed specifically for cutting non-ferrous material. Featuring a 20" (500mm), 120 tooth carbide blade that is capable of producing round cuts up to 7" in diameter and rectangular cuts up to 11.75" x 5", the SUP-500 NF offers an increased cutting capacity not found in similar Scotchman models.
- Standard features of the SUP-500 include an adjustable feed rate, mitering capability of 30 degrees Left and 0 degrees Right, four pneumatic clamps to secure material being cut and integrated debris collection. Standard safety features include dual hand operation and a safety interlock that will prevent the saw from operating if the safety hood is not closed.
- The SUP-500 NF is available in 230 volt and 460 volt configurations and is backed by Scotchman Industries' Best-in-the-Business, 3-year warranty.
- Non-Ferrous Upcut Saw designed for Aluminum, PVC, Copper, etc.
- Precision Miter Upcut Non-ferrous Saw
- Safety Hood with Safety Switch that will not Allow Saw to Run with Hood Open
- Blade Door with Safety Interlock Switch
- Dual Palm Buttons
- Adjustable Feed Rate on Saw Head
- Two Horizontal Pneumatic Clamps
- Two Vertical Pneumatic Clamps
- Miter Capability 30° Left, 90° Straight, 0° Right
- Capable of Slotting
- Moveable Back Fence for Larger Capacity
- One Gallon Coolant
- Coolant Tank with Mist Lubrication
- One 20" (500 mm) Diameter, 120-Tooth Carbide Blade
- One Blade Wrench
- Air Hose
- Chip Collection Drawer in Base and a 4-3/4" Chip Collection Port
- Noise Level (DB 68)
- Adjustable Leveling Pads
- 230 or 460 volt/3-ph Electrics (must Specify Voltage)
- Warranty: Three Years on Parts
- Made in Spain
- Manufacturer
- Specifications
- Options/Accessories
- Carbide-Tipped Blades
- Carbide-Tipped Blade Sharpening
- Chip Vacuum - V-460: Ideal for collecting steel, dust, aluminum and plastic shavings.
- Standard features include:
- 27 gallon storage with quick release handle
- Air filter shaker turbine
- 2hp motor
- 706 cfm air flow through a 4" inlet
- RG Angle Master: This upcut saw coupled with the Angle Master creates a semi-automatic programmable saw system that automatically rotates to any cut angle, pushes material into the saw & automatically rotates to the next desired angle. (It gives you a completely finished part.) Plus, you can store cut lists on its 17" touch screen control.
- RG Digital Quick Stop: Available in 8' and 12' lengths. This Digital Quick Stop is an entry level programmable sop. It is priced right, yet very durable. Setup is as easy as entering the desired cut length and pressing go!
- 60" or 120" Material Stop Roller Conveyor Mounted with an Advanced Measuring Quick-Loc System: Designed for quick, easy and accurate length setting. Available left to right or right to left material feed.
- Custom Freight

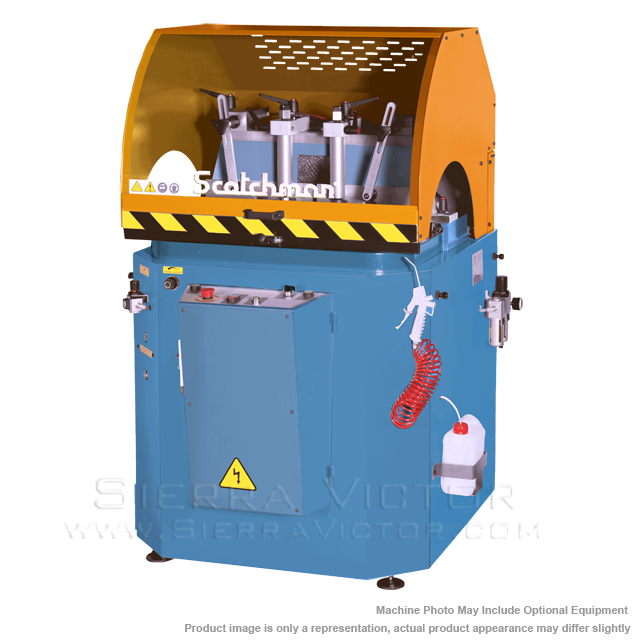

SCOTCHMAN 20 inch Non-Ferrous Upcut Circular Cold Saw SUP-500 NF
ITEM: 20" Non-Ferrous Upcut Circular Cold Saw
MANUFACTURER: SCOTCHMAN
MODEL: SUP-500 NF
Manufacturer:
Scotchman
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Cold/Circular
Material Type:
Non-Ferrous
Metalworking
Saw Capacity:
20"+

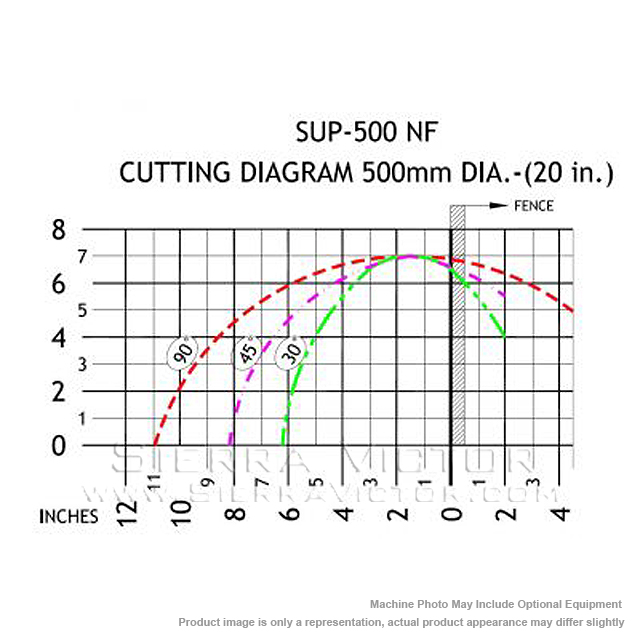

Cutting Capacities |
90° |
Round |
7" (180 mm) |
Square |
6" (150 mm) |
||
Rectangle |
11-3/4" x 5" (300 x 125 mm) |
||
45° |
Round |
7" (180 mm) |
|
Square |
4-3/4" (120 mm) |
||
Rectangle |
5-3/4" x 4-3/4" (145 x 120 mm) |
||
Cutting Speed |
3,000 RPM |
||
Motor Rate |
5.5 HP |
||
Factory Wired (SPECIFY) |
230V 3-ph OR 460V 3-ph |
||
Maximum Diameter Blade |
20" (500 mm) |
||
Arbor Bore |
1.97" (50 mm) |
||
Dimensions |
Width |
47-1/4" |
|
Depth |
43-3/8" |
||
Height |
(Top of Hood) 60-1/4" |
||
Height |
(From Floor to Vise) 38-5/8" |
||
Shipping Weight |
1,069 lbs. (485 kg) |
||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
CALL FOR PRICE:
