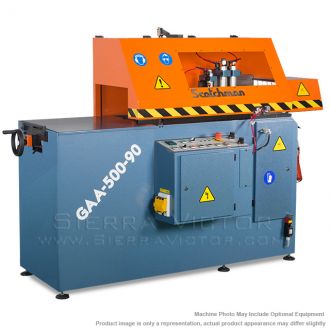

SCOTCHMAN 20 inch Non-Ferrous Automatic Upcut Circular Cold Saw GAA-500 90

• Scotchman Industries is proud to introduce the GAA-500-90, Automatic Upcut Circular Cold Saw, the newest addition to our non-ferrous saw line. The GAA-500-90 is a large capacity upcut automatic saw for cutting non-ferrous materials at 90° up to 6” square and round. The saw uses a shuttle feed design with an adjustable vertical and horizontal clamp system to fit almost any profile. Standard features include a 7.5 hp motor that delivers a cutting speed of 3,000 rpm, pneumatic mist coolant system, and a base designed with 2 chip extraction ports. Cut lengths are set by moving the hard stop that is connected to a ball screw and hand crank. The rotary dial allows for fast and easy length adjustments and part lengths are easily held to the length tolerance of +/- .006” per index. The GAA-500-90 is available in 230 volt and 460 volt configurations and is backed by Scotchman Industries’ Best-in-the-Business, 2-year warranty.
• Non Ferrous Automatic Upcut Saw designed for Aluminum, PVC, Copper, etc.
• Automatic Cycle
• Semi-automatic or Automatic Operation
• Automatic Feeder, 20 inches x 2 Strokes (20" + 20" Max.) Double Advance
• Powered Hood Lift
• Emergency Stop
• Adjustable Cutting & Feeding Speeds
• Adjustable Length Selector from .200 to 20"
• Three Horizontal Pneumatic Clamps
• Three Vertical Pneumatic Clamps
• Miter Capability 90°
• Pneumatic Lubrication System with Spray
• One Gallon Coolant
• Coolant Tank with Mist Lubrication
• Mist Coolant Pump
• One 20" (500 mm) Diameter Carbide Blade
• One Blade Wrench
• Air Hose
• Base Designed as a Chip Collection with Two Chip Extraction Ports
• Adjustable Leveling Pads
• 230 or 460 volt/3-ph Electrics (must specify voltage)
• Warranty: Two Year on Parts
• Made in Spain
