- Description
- Scotchman CPO 350 PKPD, semi-automatic circular cold saw has a pneumatic power down feed with electric valves and has mitering capabilities of up to 135 degrees; 45 degrees to the right and 90 degrees to the left. This 350 mm precision saw is American-made and features double clamping and self-centering vise for maximum material hold. Scotchman's CPO 350 series of cold saws are powerful machines and can cut through solids, tubing, or pipe and produce burr-free, high-quality, high volume parts. This semi-automatic circular cold saw features electric controls, electric valves, and an electric remote foot pedal. The CPO 350 PKPD is built with dependability and versatility in mind and is backed by our outstanding 3-Year Warranty!
- Semi-Automatic Cycle
- Air Operated Power Double Self-Centering Vise Assures Burr-Free Cuts
- Pneumatic Power Down Feed with Electric Controls
- Emergency Stop Button
- Miter Capabilities 45 degrees Left and 45 degrees Right
- Miter Locking Devise: Quick, Accurate Setting-Stops at 45 degrees Left, Straight 90 Degrees, and 45 Degrees Right
- Capable of Slotting
- Two Cutting Speeds (LT 22/44 rpm Or HT 44/88 rpm)
- Double Reduction, Hardened and Ground Worm and Wheel Gear Box
- Worm Wheel of Top Quality Bronze
- Chip Drawer
- 7 Gallon Coolant Tank with Pump
- One 12-1/2" Diameter (315 mm) HSS Blade
- One Blade Wrench
- One Gallon Concentrated Coolant
- 230 or 460 Volt /3 Phase Electrics (must specify voltage)
- Made in USA
- Manufacturer
- Specifications
- Options/Accessories
- RG Digital Quick Stop: Available in 8' and 12' lengths. This Digital Quick Stop is an entry level programmable sop. It is priced right, yet very durable. Setup is as easy as entering the desired cut length and pressing go!
- Laser Saw Guide: This industrial grade laser light for circular cold saws minimizes set-up time and ensures the material is being sawed to the correct length and squareness by helping the operator see the line marked for cutting.
- Special Clamping Fixture
- Miter Locking Device: STANDARD FEATURE (not available for 275 PK or 275 PKPD models)
- Variable Speed Control: Recommended for cutting multiple shapes, sizes and thicknesses. RPM can be fine tuned to achieve optimum blade speed for each application, and increase blade life.
- Square Tube Jaws
- 60" or 120" Material Stop Roller Conveyor Mounted with an Advanced Measuring Quick-Loc System: Designed for quick, easy and accurate length setting. Available left to right or right to left material feed.
- 10' & 20' Material Supply Track
- BLADES & SHARPENING:
Cold Saw Blades
Scotchman offers a complete selection of saw blades in stock for immediate delivery.
Cold Saw Blade Sharpening
Scotchman offers a fast, high-quality blade sharpening service and will grind blades with special tooth number. - Custom Freight
- Video

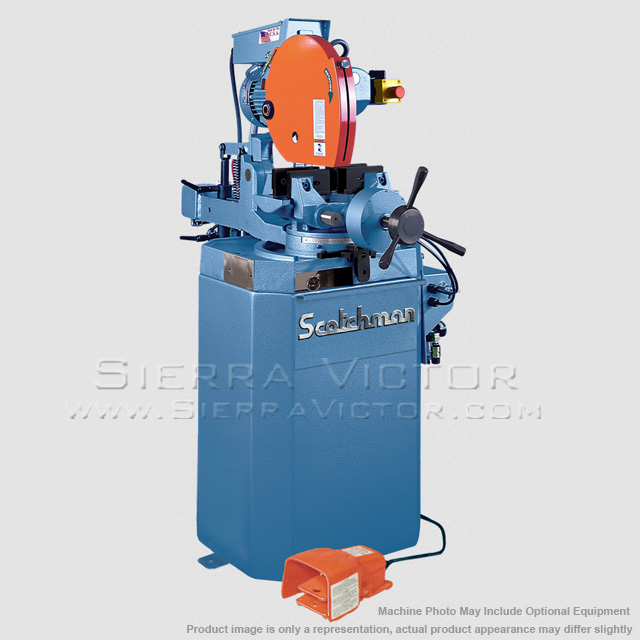

SCOTCHMAN 14 inch Semi-Automatic Ferrous Cold Saw CPO 350 PKPD
ITEM: 14" Semi-Automatic Ferrous Cold Saw
MANUFACTURER: SCOTCHMAN
MODEL: CPO 350 PKPD
Manufacturer:
Scotchman
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Cold/Circular
Control:
Semi-Automatic
Material Type:
Ferrous
Metalworking
Saw Capacity:
14"+
Cutting Speeds: Must Specify when Ordering |
LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe |
LT (Low Turn) 22 rpm / 44 rpm Motor rate: 3 hp |
|
HT(High Turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material |
HT (High Turn) 44 rpm / 88 rpm Motor rate: 2.5 hp |
||
VS (Variable Speed) ~ wired 230/460, 3-ph |
VS (Variable Speed) 11 / 177 rpm Motor Rate: 5 hp |
||
VS (Variable Speed) ~ wired 220, 1-ph |
VS (Variable Speed) ~ 11 / 177 rpm Motor Rate: 5 hp |
||
SS(Single Speed) designed for 220v 1 ph applications |
SS (Single Speed) 44 rpm Motor Rate: 3 hp |
||
TUBING |
90 deg. |
Round |
4-1/2" (114 mm) |
Square |
4-1/4" x 4-1/4" (108 x 108 mm) |
||
Rectangle |
5-1/2" x 4" (140 x 102 mm) |
||
45 deg. |
Round |
4" (102 mm) |
|
Square |
4" x 4" (102 x 102 mm) |
||
Rectangle |
4" x 4" (102 x 102 mm) |
||
SOLID |
90 deg. |
Round |
2" (51 mm) |
Square |
2" x 2" (51 x 51 mm) |
||
45 deg. |
Round |
1-3/4" (44 mm) |
|
Square |
1-3/4" x 1-3/4" (44 x 44 mm) |
||
Factory Wired |
Specify 208 3 ph 230 3 ph 460 3 ph 575 volt, 3 ph 60 hz 220 1 ph (SS Model Only) |
||
Maximum Diameter Blade |
350 mm (13.8") |
||
Arbor Bore |
1-9/16" (40mm) |
||
Pin Spacing |
4/12/64 |
||
Width |
21-7/8" |
||
Depth |
43-1/2" |
||
Height not including handle |
56-1/4" |
||
Height from floor to vise |
37-7/16" |
||
Shipping Weight |
760 lbs. (344 kg) |
||
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
