- Scotchman's CPO 315 Roller Feed Automatic circular saw is a fully automatic cold saw that provides uninterrupted cutting on tubes, solids, and extrusions and supplies the highest quality cuts. This machine comes with touch screen controls which make the saw easier to operate. New added features decrease cycle times, making this saw faster than ever before! The RFA now has the ability to store profile settings such as speeds & feeds, which make changing material sizes faster. This machine is ideal for high volume and long length applications that require very accurate and clean cuts.
- The CPO 315 RFA comes equipped with either a supply table or a full bundle loading attachment. The standard supply table has been improved to accept raw stock loading of material lengths now from as little as 30 inches up to 24 feet. Either system allows the saw to automatically load, trim, cut and sort lengths up to 120″ (60″ is standard) and hold ± .006 in lengths of tubing up to 3 inch in diameter. With optional equipment you can feed directly into a deburring machine or acquire form jaws that can handle thin wall applications without distortion. The CPO 315 RFA Saws are available in ferrous and non-ferrous models and comes with a 2-Year Warranty!
- Fully Automatic Cycle
- Touch Screen Controls Actuate the Complete Cycle
- Automatic Loading of each New Bar
- Automatic Trim Cut of each New Bar
- Automatic Tube Ejection
- Clamping Both Sides of Blade - Highest Quality, Burr-Free Cuts
- 5 H.P. Variable RPM Speed Control (Ferrous Model)
- Interlocking Safety Hood
- Blade Guides for Accurate Tolerances (Ferrous Model)
- Trim and Remnant Gate
- Adjustable Stroke Control on the Saw Head for Feed Rate
- Piece Counter
- Length Scale in Both Inches and Metric
- Digital Read-out for Quick and Easy Fine Adjustment of Length Setting
- Supply Table takes up to 24' Material
- Mist Coolant System
- One Saw Blade
- One Gallon Concentrated Coolant (Ferrous Model)
- Warranty: Two Years on Parts
- Made in USA
- Manufacturer
- Specifications
- Options/Accessories
- 10' & 20' Material Supply Track
- Digital Read-out for Quick Easy Length Setting
- Mist Coolant
- Form Jaws for Multiple Tubes
- Flood Coolant
- Custom Freight

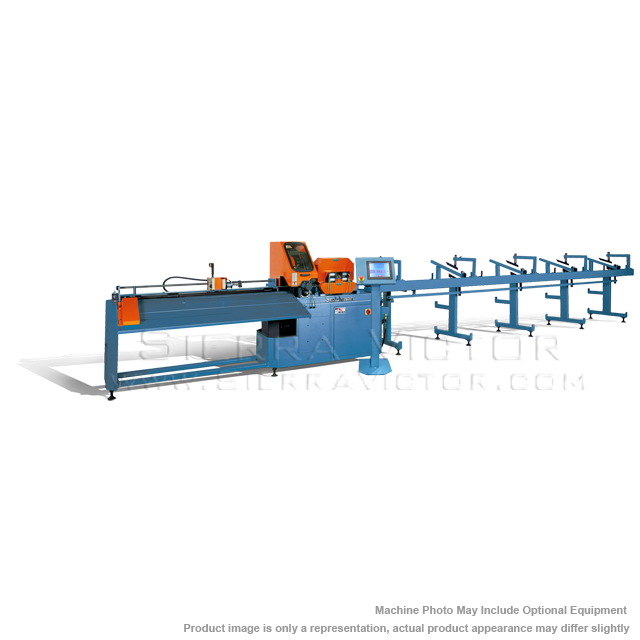

SCOTCHMAN 12-1/2 inch Roller Feed Automatic Circular Saw CPO 315 RFA ST
ITEM: 12-1/2" (315mm) Roller Feed Automatic Circular Saw
MANUFACTURER: SCOTCHMAN
MODEL: CPO 315 RFA ST
Manufacturer:
Scotchman
Machine Type
Machine Category:
Saws
Machine Sub-Category:
Cold/Circular
Control:
Automatic
Metalworking
Saw Capacity:
12"+
Cutting Speeds Based on Mild Steel |
Variable Speed 11 to 177 rpm |
|
Motor Rate
|
5 HP
|
|
Cutting Capacities Based on Mild Steel: TUBING |
Round
|
3" (76 mm) |
Square
|
3" x 3" (76 x 76 mm) |
|
Cutting Capacities Based on Mild Steel: SOLID |
Round
|
1-3/4" (44.5 mm) |
Square
|
1-1/2" x 1-1/2" (37 x 37 mm) |
|
Length Tolerance |
+ or - 0.006 repeatability |
|
Minimum Cut Length |
1-1/2" |
|
Maximum Cut Length |
60" (90"or 120" Available) |
|
Power Supply |
208/230/460, 3 Phase (must specify voltage) |
|
Air Pressure |
90 lbs. Minimum |
|
Squareness Tolerance |
+ or - .002 per Diameter Inch |
|
Maximum Saw Blade |
12-1/2" (315 mm) |
|
Arbor Bore Size |
40mm |
|
Pin Spacing |
4/12/64 |
|
Supply Table Maximum Raw Stock |
24" |
|
Supply Table Width: |
24" |
|
Dimensions
|
L-384" x W-46" x H-63" |
|
Shipping Weight
|
2,745 lbs. (1,245 kg)
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR – Parts
