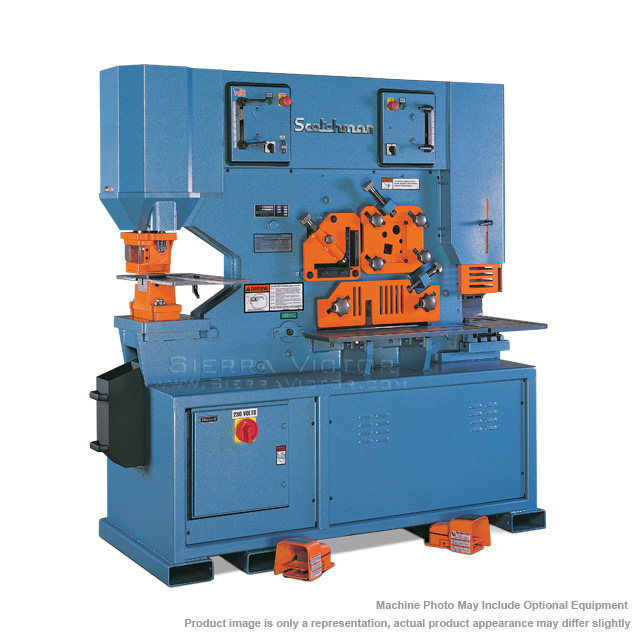

SCOTCHMAN 85 Ton Dual Operator Hydraulic Ironworker DO 8514-20M

• If you are looking for a Fully-Integrated/Dual Operator ironworker that has more versatility than any other machine on the market, look no more!
• The Scotchman DO8514-20M hydraulic ironworker is a fully-integrated ironworker machine with five built-in functions: 85-ton punch (1-1/16” in 1”), 6” x 6” x 1/2” crop off angle shear, round and square solid rod shear, 20” flat bar shear (that will shear a whopping 1” x 16” and 3/4” x 20”), plus a rectangle notcher.
• The most flexible feature this machine has is the rectangle notcher which can be removed and turned into several additional tools that include the following: an extra punch station, press brake, pipe notcher and/or a 3” x 3” V notcher. No other machine built anywhere in the world has this much flexibility or versatility!
• The DO 8514-20M hydraulic ironworker is 100% American-made and backed by Scotchman’s best in the business 3-year parts warranty.
• Dual Operator allows for Two Operators to Work at the Same Time at Full Capacity
• 85 Ton Punch Station (1-1/16" in 1")
• Keyed Punch Ram for Safety
• 14" Throat Depth
• Punch Gauging Table with Fence and Scale
• Die Holder Complete with 2" Die Insert for #82 Dies
• Punch Nut with Wrench
• Adjustable Swing-Away Stripper
• One Round Punch & Die: Max. Dia. 1-1/4"
• Punch Jog Control
• Two Adjustable Electric Stroke Controls with Scale
• Two Electric Remote Foot Pedals
• Two 2-Stage Hydraulic Pumps
• Two Valves
• 6" x 6" x 1/2" Slug-less Angle Shear
• Rectangle Notcher: 2" x 4" x 1/2" can be converted to
  3" x 3" V-Notcher
  50-Ton Punch Station
  6" Open End Brake
• 20" Flat Bar Shear (1" x 16", 3/4" x 20")
• Shear Table with Miter Fence
• Rod Shear: 1/2", 3/4", 1", 1-1/2" Round and 1-1/2" Square
• Slug Receptacles
• Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
• 230 or 460 Volt /3 ph Electrics (must specify voltage)
• All Guards Necesary to Comply with ANSI B 11-5 Standards
• Forklift Accommodations
• Dual Operator, 5 Stations
• Made in the USA
