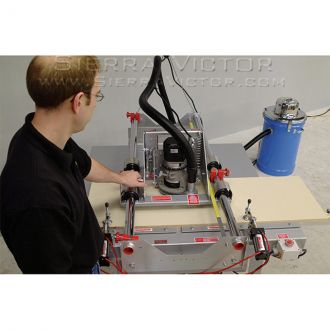

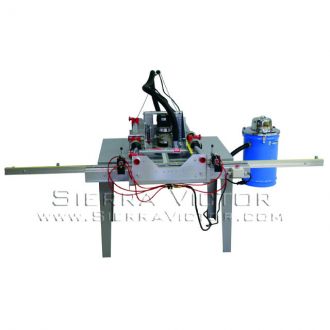

- The TR2 panel router is a horizontal model offering accuracy and power in a space saving size ideal for cross dado jobs up to 36 inches. Equipped with a heavy duty 3-1/4 Hp motor this unit easily cuts standard dados, blind dados as well as full-length rabbets. One person operation makes this machine well suited for wood shops, schools, display manufacturers and cabinet shops.
- 3-1/4 Hp, 15 amp router motor.
- Horizontal steel work table.
- Chrome-plated 1-3/4” guide tubes.
- 8 Nylatron roller bearing system.
- Adjustable rulers.
- Integrated dust collection bonnet.
- Floating router head
- 2 clamps.
- 2 blind dado stops.
- Extended warranty.
- *Gauging System, and dust kit are now Included with machine
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight
- Video
SAFETY SPEED 120V 36" Table Router TR2
STANDARD EQUIPMENT:
ITEM: 36" Horizontal Table Panel Router 120V
MAKE: SAFETY SPEED MFG
MODEL: TR2
Manufacturer:
Safety Speed Cut
Machine Type
Machine Category:
Table/Panel Routers
Material Type:
Wood
Metalworking
Saw Capacity:
36"+
|
Max. Crosscut
|
36" / 910mm
|
|
Max. Rip Cut
|
Unlimited
|
|
Max. Cut Thickness
|
1-3/4" / 45mm
|
|
Cut Accuracy, Straight and Square
|
1/64" / .4mm
|
|
Motor
|
120V, 15 amp (220V available)
|
|
Frame Length
|
57" / 3050mm
|
|
Dimensions (AxBxC)
|
45" x 97" x 57"
|
|
Shipping Weight
|
285 lbs. / 129 kg
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
CALL FOR PRICING:
|
PART #
|
ITEM
|
|
—
|
220V Upgrade (per motor)
|
|
4430
|
Extension Table (per side)
|
|
3430TR2
|
Air Clamps
|
|
H6450
|
Stop bar gauge
|
|
740C
|
Industrial VAC - 1 HP, 100 CFM, 90" S.P.
|
|
740CC
|
Industrial VAC - 2.25 HP, 115 CFM, 110" S.P.
|
|
4450
|
Gauging System
|
|
—
|
High quality router bits
|
|
TR Dust
|
Dust kit (New machine purchases only)
includes: hose, rollers, dust tube and elbow ( Existing machines may require dust bonnett) |
|
PD1
|
Panel Dolly
|
|
AUTO1
|
Automater (all 120 Volt machines)
|
