- Description
- Pexto power squaring shears provide features designed for shearing efficiently and accurately equal the demands of present day productivity. The PH-452 model has built-in ruggedness that will make them last for years of normal use. The shears offer triple-action shearing which includes relief on both edges of both the fixed and moving blades. The blade design eliminates blade-to-blade friction, provides “bite” to minimize sheet movement under shearing stress and produces double penetration in the cutting action. The shears will handle a 52″ sheet. Max. Rated Capacity – 16 gauge (mild steel)
- Pexto’s PH-452 features compact, fully-integrated, hydraulically powered units that are ideal for many light gauge shearing applications. Pexto hydraulic power shears feature fast, smooth, oil-cushioned action. Both moving and fixed blades are shearing blades of Hi-Speed steel. One piece cast shear bed is recessed for easy sheet handling. Standard equipment includes a precision rack and pinion back gauge a solid finger guard. The PH-452 also includes front and side gauges, bevel gauges and two front arms. The bed is machined for optional side extension squaring gauge.
- Fully enclosed control panel, with magnetic starter, selector switch and relays
- Single or continuous stroke operation.
- Heavy duty foot switch. If released anywhere in the stroke, crosshead returns to “up” position.
- Pressure relief valve to prevent overloading.
- Electric solenoid hydraulic valve for instantaneous response.
- Dial stroke control – accessible adjustment with stroke length indicator.
- Hydraulic power uniformly applied through double-acting cylinders.
- For Other Voltages available and Delivery Please Call Sierra Victor Industries
- MADE IN USA
- Precision rack and pinion back gauge a solid finger guard.
- The PH52 also includes front and side gauges, bevel gauges and two front arms (Optional on PA452 and PH452).
- Bed is machined for optional side extension squaring gauge
- Manufacturer
- Specifications
- Options/Accessories
- Custom Freight

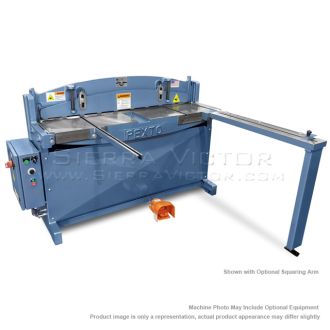

ROPER WHITNEY 52 inch x 16 ga. Hydraulic Squaring Shear PH-452
ITEM: 52" x 16 ga. Hydraulic Squaring Shear
MANUFACTURER: ROPER WHITNEY
MODEL: PH-452
PART# 191214521 (230V/1PH) / 191314521 (230V/3PH) / 191414521 (460V/3PH)
STANDARD EQUIPMENT:
Manufacturer:
Roper Whitney
Machine Type
Machine Category:
Shears
Power Source:
Hydraulic
Metalworking
Material Length:
4 ft (48 in+)
Mild Steel Capacity:
16 ga
Stainless Steel Capacity:
20 ga
|
MODEL
|
NO. PH-452
|
|
Catalog No.
|
191214521
|
|
Operation type
|
Hydraulic
|
|
Maximum Shearing Capacity, Mild Steel
|
16 ga.
|
|
Maximum Shearing Capacity, Stainless Steel
|
20 ga.
|
|
Maximum Cutting Length
|
52"
|
|
Back Gauge Range
|
30"
|
|
Standard Motor
|
2 HP, 1800 RPM, 230V/1-phase
|
|
Floor Space, Gauges in Position
|
66" x 76" x 42"
|
|
Dimensions
|
72" x 48" x 36"
|
|
Weight
|
1,350 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
Note: Consumable tooling is not covered under the 3 year manufacturer’s warranty.
|
PART #
|
ITEM
|
|
350700193
|
Hi-Speed Replacement Blade
( Upper & lower blades are identical - 16 lbs. shipping weight ): $415.00 |
|
262006900
|
4 Foot Squaring Arm: $895.00
|
|
135003521
|
Accessory Package -
Includes: Front gauge, Bevel gauge, T-Bolts, Front arms |
