$50.00 Minimum Order Amount on ALL ROPER WHITNEY Items
- Description
- Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending within rated capacities. Features of the Connecticut box and pan bending brake are a 6-inch depth of box capacity, 6 feet of 16 gauge bending capacity, positive clamping pressure adjustment, apron stop rod for repeat bends, replaceable bushings and hinge pins, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, improved leg design for lighter weight, all steel construction with no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and positive rear material gauge adjustment. Connecticut Series box and pan brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.

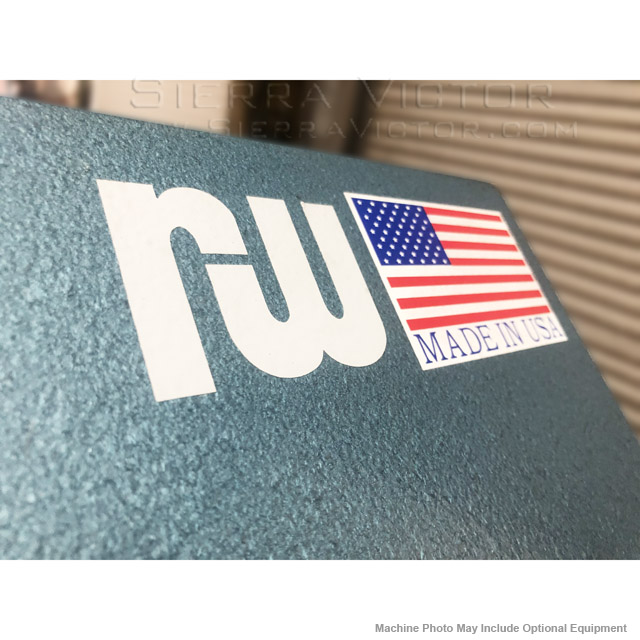

- MADE IN USA
- Manufacturer
- Specifications
- Options/Accessories
- Radius Fingers - per inch (PLEASE CALL): $36.00
- Custom Freight

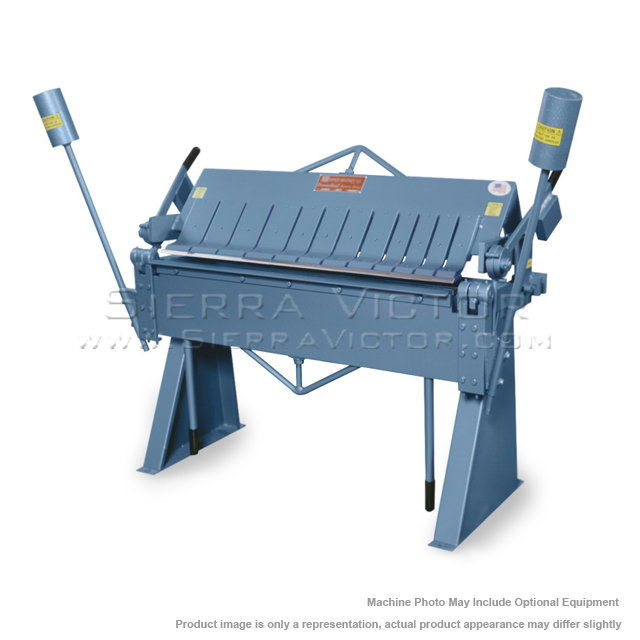

ROPER WHITNEY 6 ft x 16 gauge Connecticut Box & Pan Bending Brake U-616-6
ITEM: 6' x 16 ga. Connecticut Box & Pan Bending Brake
MANUFACTURER: ROPER WHITNEY
MODEL: U-616-6
PART# 155100616
Manufacturer:
Roper Whitney
Machine Type
Machine Category:
Brakes - Box & Pan
Control:
Manual
Metalworking
Material Length:
6 ft (72 in.+)
Mild Steel Capacity:
16 ga
|
MODEL
|
U-616-6
|
|
Catalog No.
|
155100616
|
|
Bending Length
|
72" (6')
|
|
Capacity on mild steel, 1" flange
With bending bar and angle in place |
16 ga.
|
|
With bending angle removed
|
20 ga.
|
|
With bending bar and angle removed
|
24 ga.
|
|
Minimum reverse bend ( bar and angle removed )
|
1/4"
|
|
Maximum lift of beam
|
1-5/8"
|
|

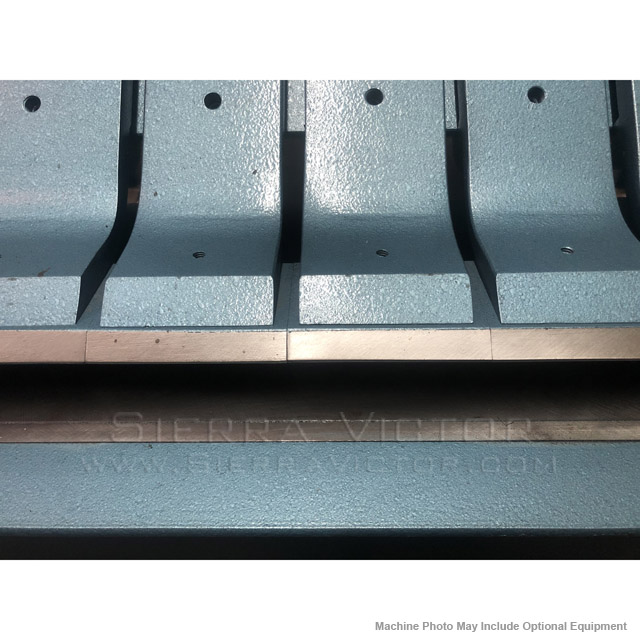

Finger widths
|
3", 4", 5"
|
|
Maximum Depth of Box
|
6"
|
|
Front to Rear Adjustment
|
1-1/8"
|
|
Dimensions
|
91" x 54" x 35"
|
|
Shipping Weight
|
1,800 lbs.
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
Note: Consumable tooling is not covered under the 3 year manufacturer’s warranty.
