In Stock Model M1010 Equipped with:

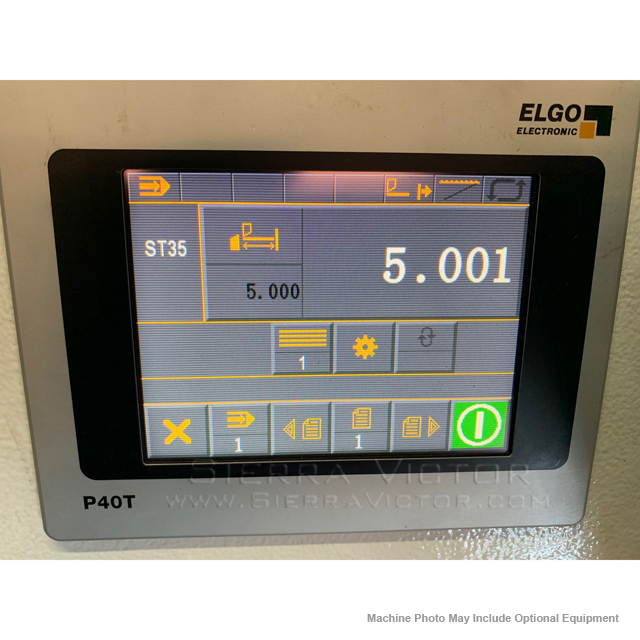

- Elgo touch programmable go-to backgauge
- 1m backgauge travel
- Pneumatic sheet system
- Material sheet support
- Description
- Mechanical Power Squaring Shear with Manual Front-Operated Backgauge, Pneumatic Sheet Support Device with Front Return and Material Cart
- NC Go-To Power Back Gauge stores 100 programs

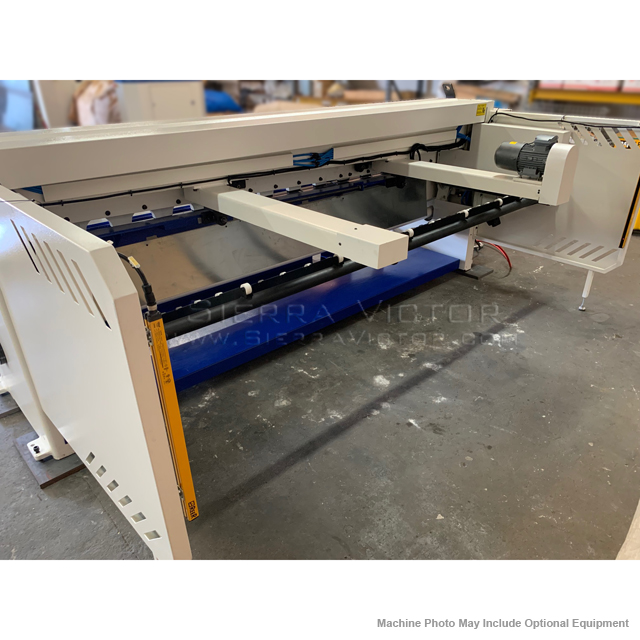

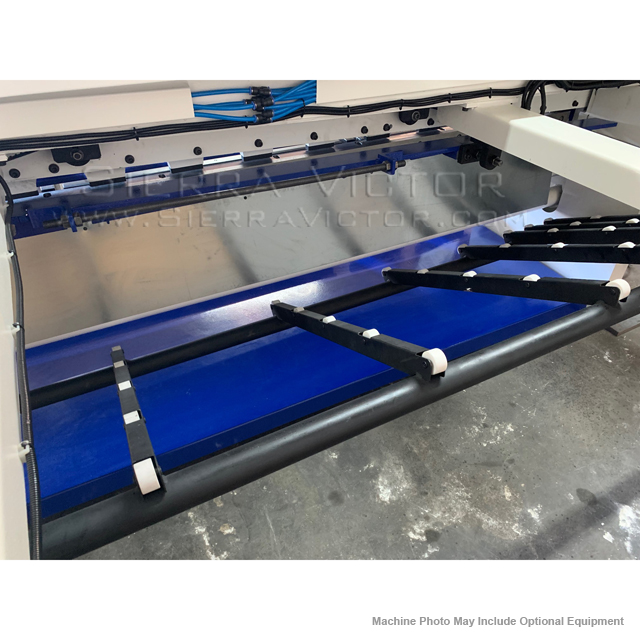

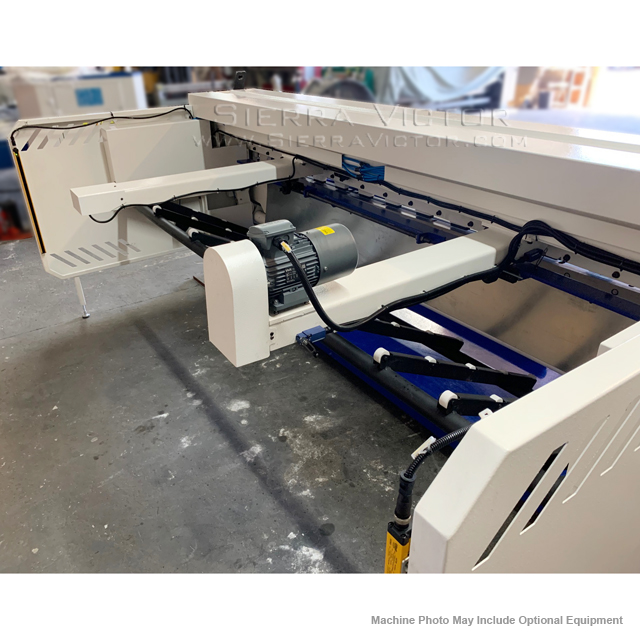

- Pneumatic Rear Sheet Support Device with Front Return (returns cut part to front)
- Material Table/Cart to catch cut parts returned to front of machine
- Front Support Arms
- Set of high-carbon high-chrome blades
- Solid, mechanical finger guard/holddown with non-marking pad
- All steel frame
- All moving components in maintenance-free bearings
- 40" Squaring arm (at left)
- Virtually noiseless geared brake-motor.
- Low voltage at the controls.

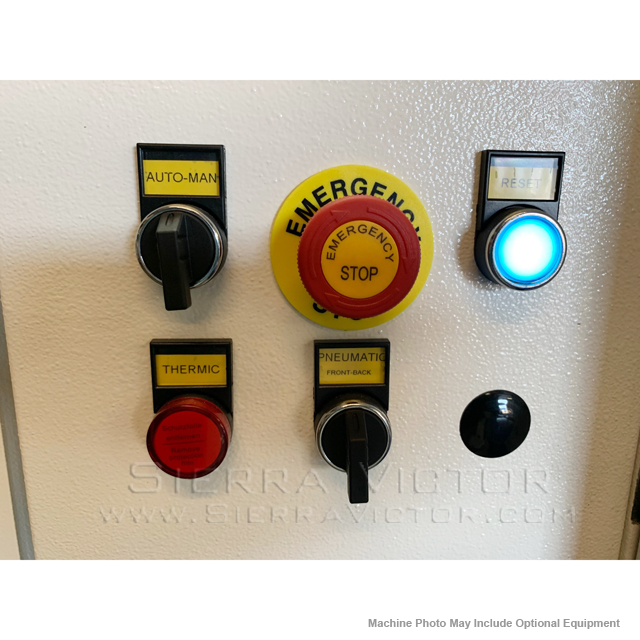

- Emergency stop palm button.
- Single/inching stroke control
- Movable electric foot control on a trailing lead
- Operating manual and parts list
- Electrics for 3/60/220/440
- PLEASE NOTE: Machine is single voltage, currently wired for 220 Volt, 3 Phase. Should you require a different voltage, the customer would be responsible for making the changes. We recommend that a licensed electrician be consulted and make any changes necessary. These would include the addition of any transformers or changes to the electrical system related to the main motor.
- Manufacturer
- Specifications
- Custom Freight
- Video

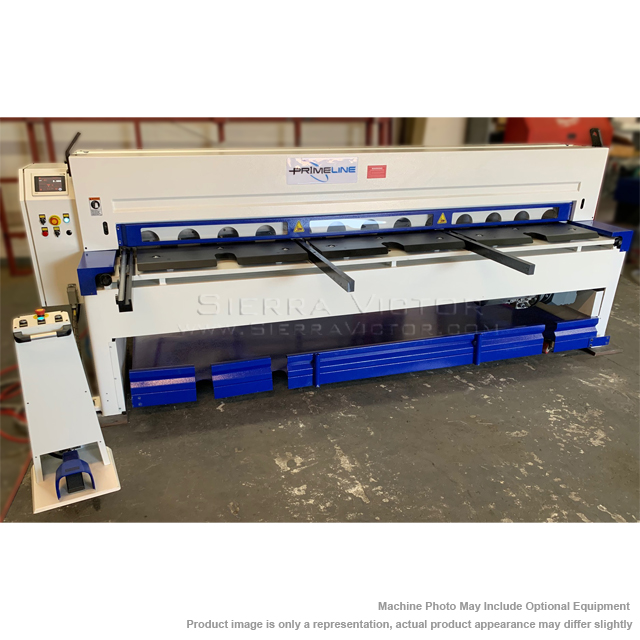

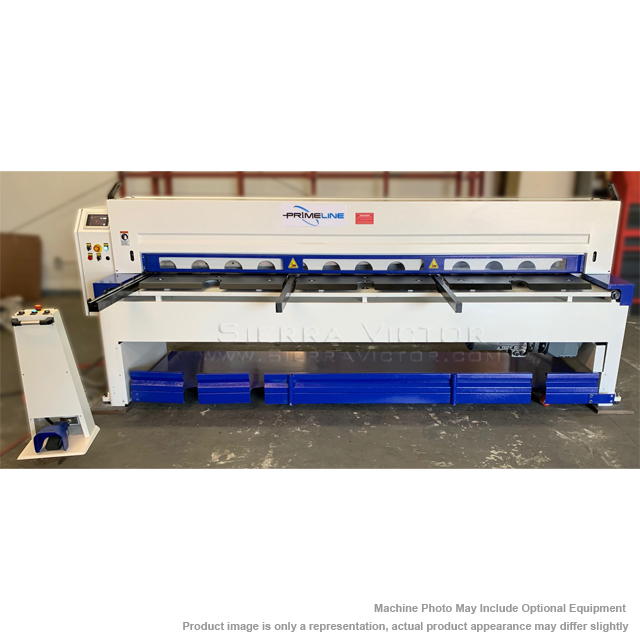

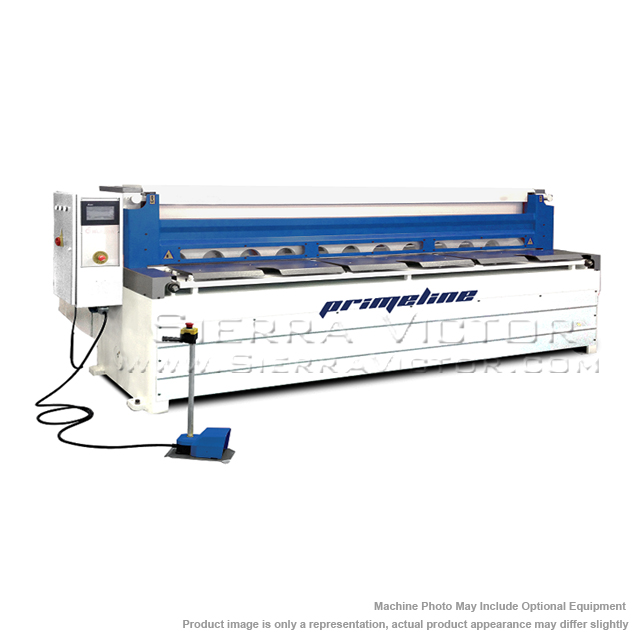

PRIMELINE 10 ft x 10 gauge Electro-Mechanical Power Shears M1010
ITEM: 10 ft x 10 gauge Electro-Mechanical Power Shears
MANUFACTURER: PRIMELINE
MODEL: M1010
Manufacturer:
Primeline
Machine Type
Machine Category:
Shears
Machine Sub-Category:
Electromechanical
Control:
Power
Metalworking
Material Length:
10 ft (120 in.+)
Mild Steel Capacity:
10 ga
|
Capacity
|
mild steel
|
10 ft x 10 ga.
|
|
stainless steel
|
10 ft x 16 ga.
|
|
|
Strokes per minute
|
35
|
|
|
Motor
|
5.3 HP
|
|
|
Back gauge range
|
39-1/2 in.
|
|
|
Approximate Dimensions L x W x H
|
142 x 71 x 52 in.
|
|
|
Electrics
|
3/60 32 Amps Full Load 220V
|
|
|
Net weight - approximately
|
7,300 lbs.
|
|
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
