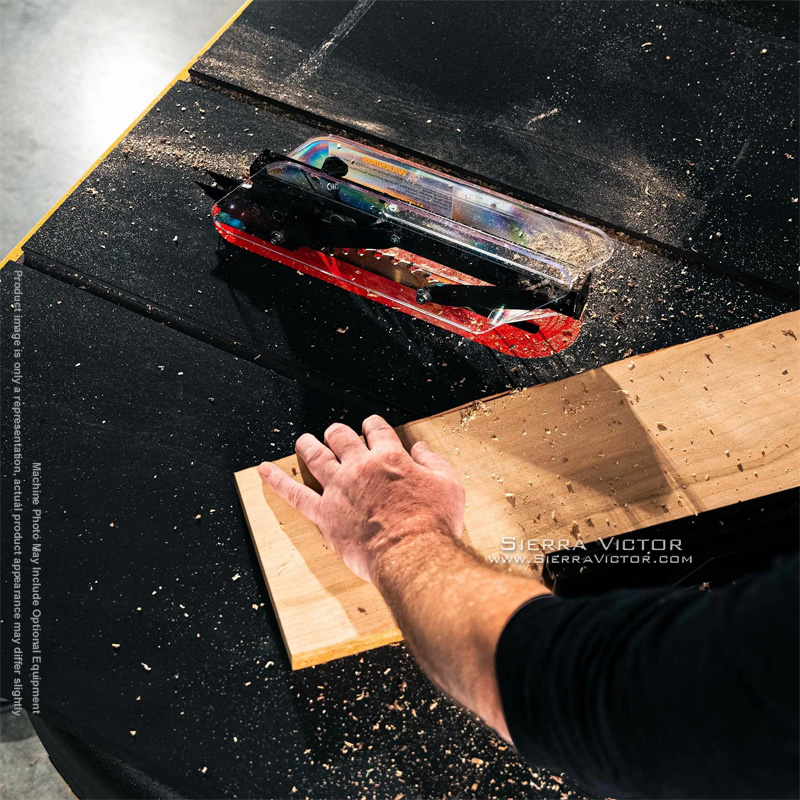

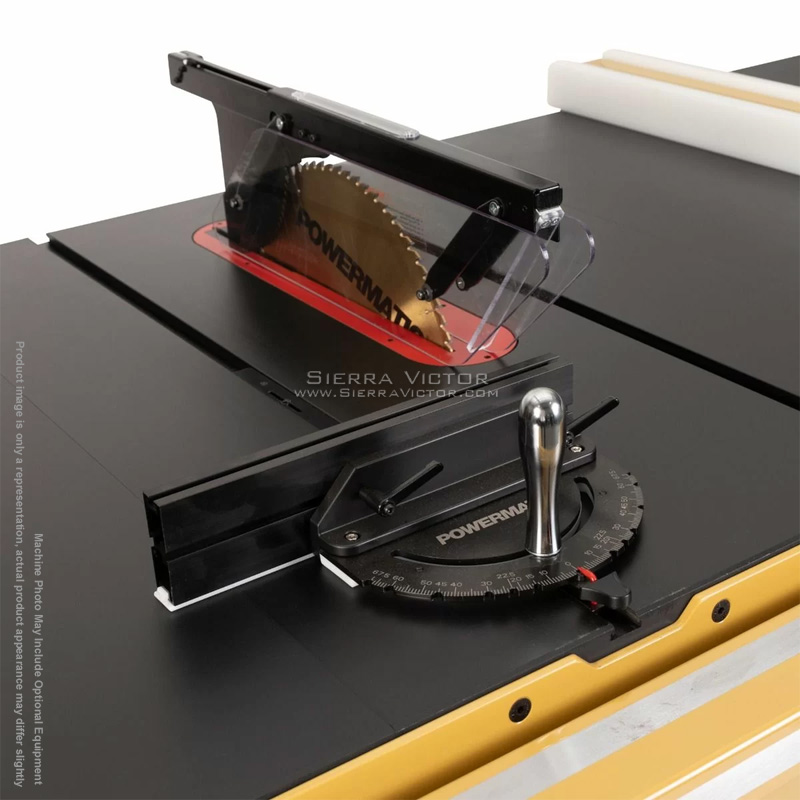

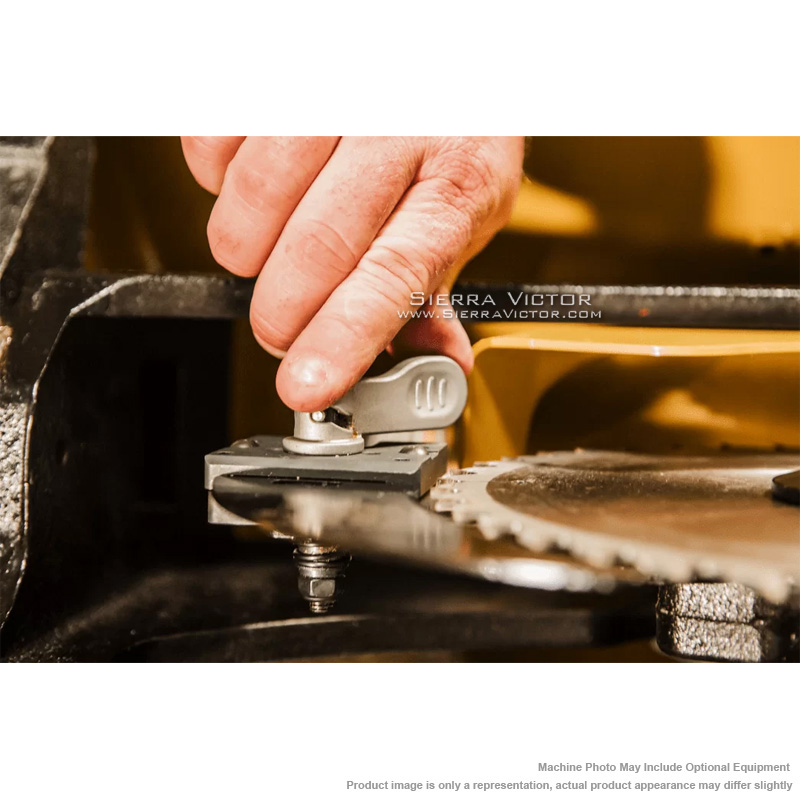

- Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the PM3000B brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both the riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting.

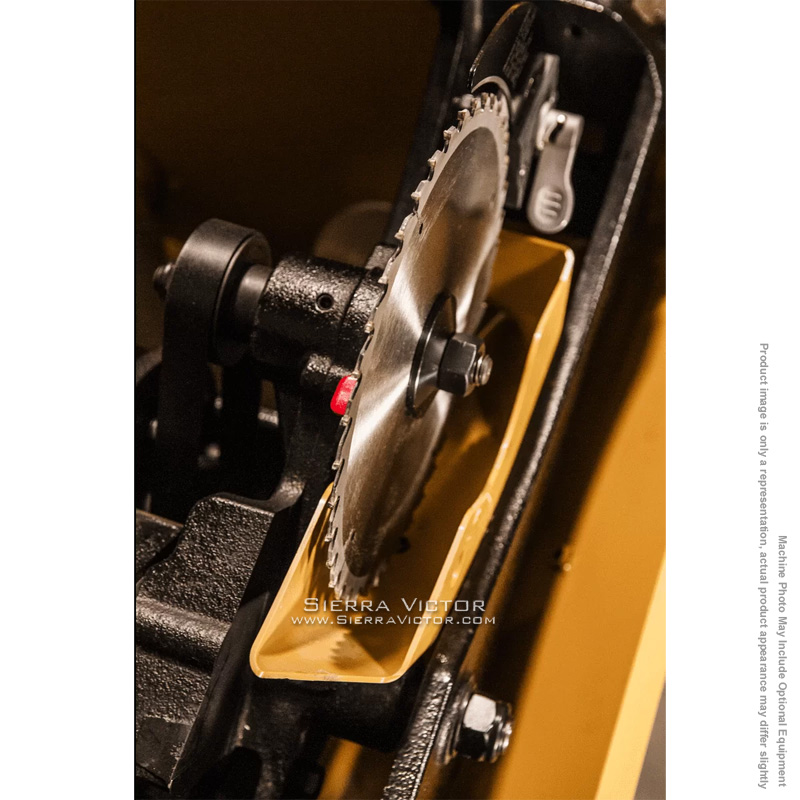

- The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat buildup. A redesigned push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Additional features include a sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control.

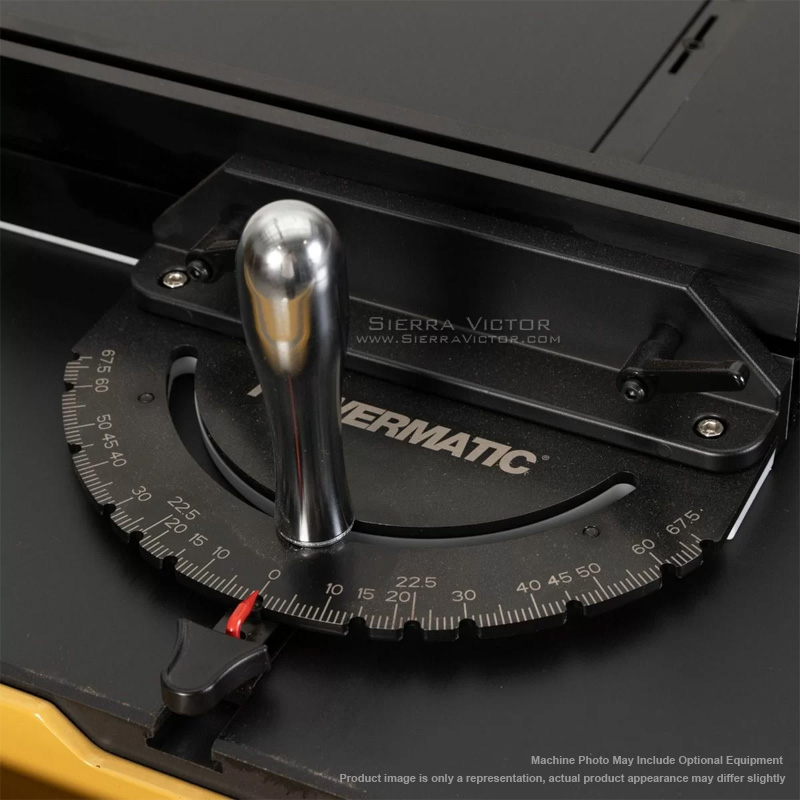

- Miter guage is built with robust materials with many positive stops for the most commonly used angles.

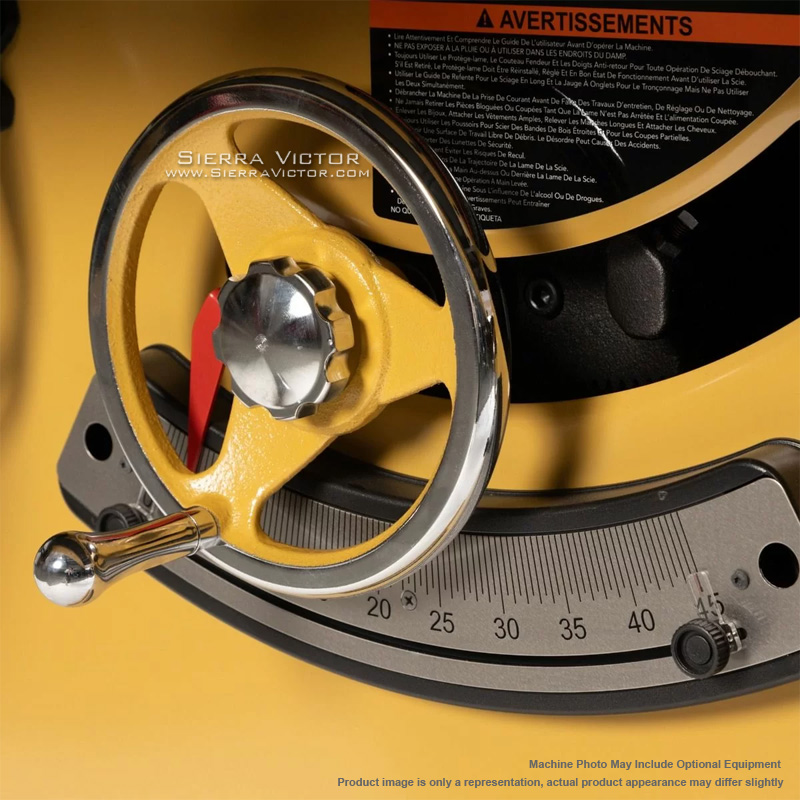

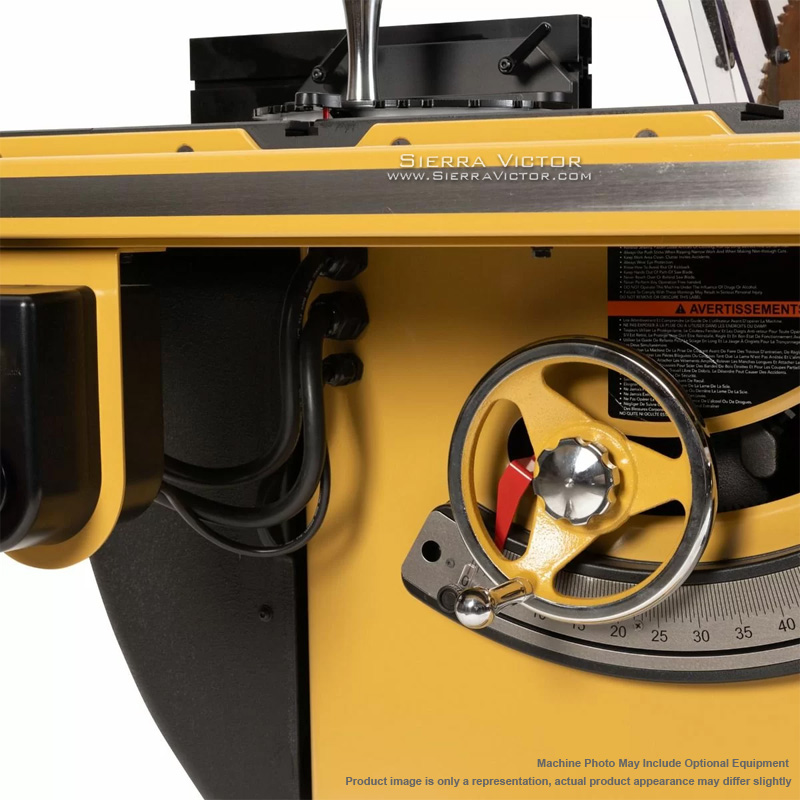

- Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
- Adjustable miter gauge
- Arbor lock for rapid blade change

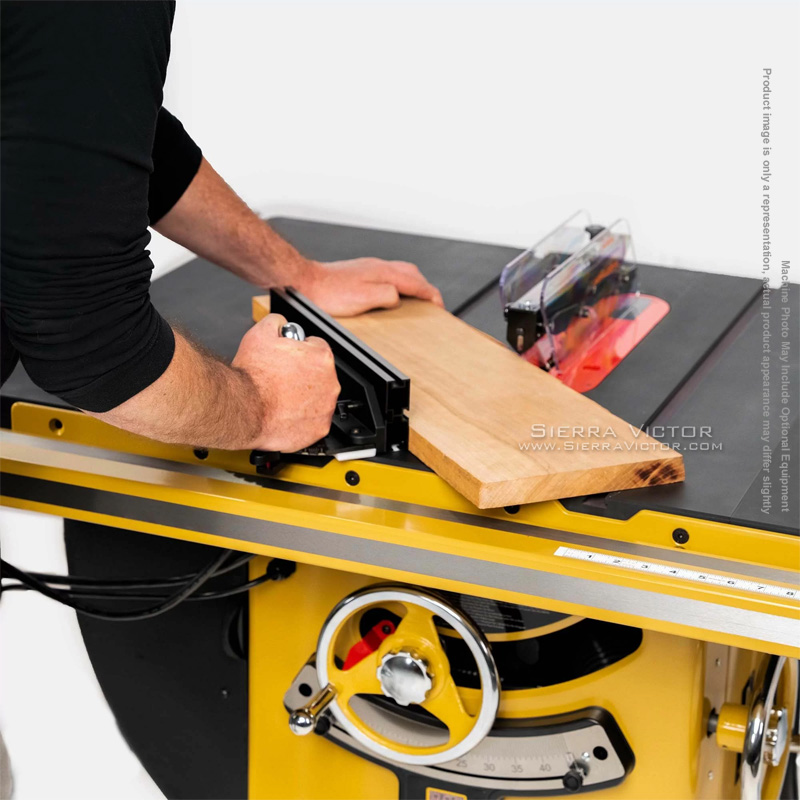

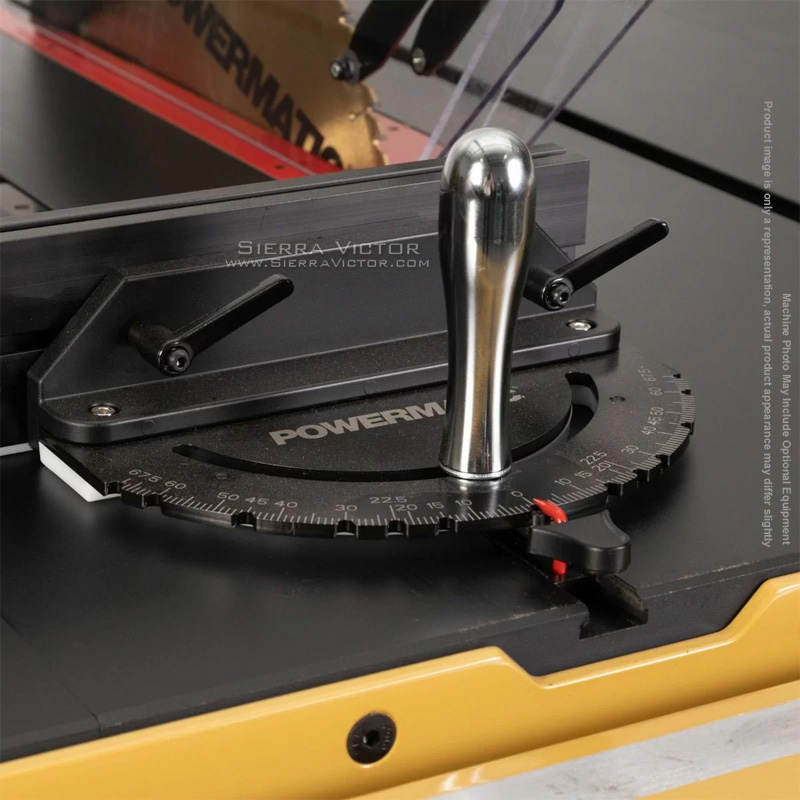

- Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments
- Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key

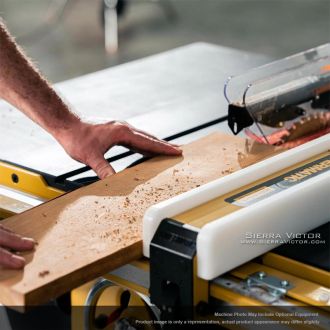

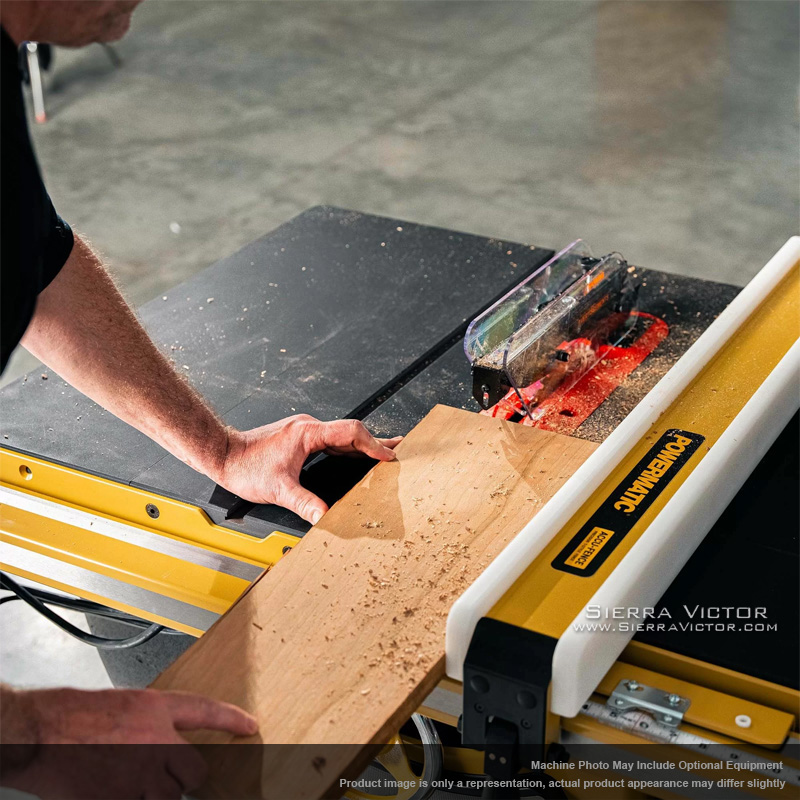

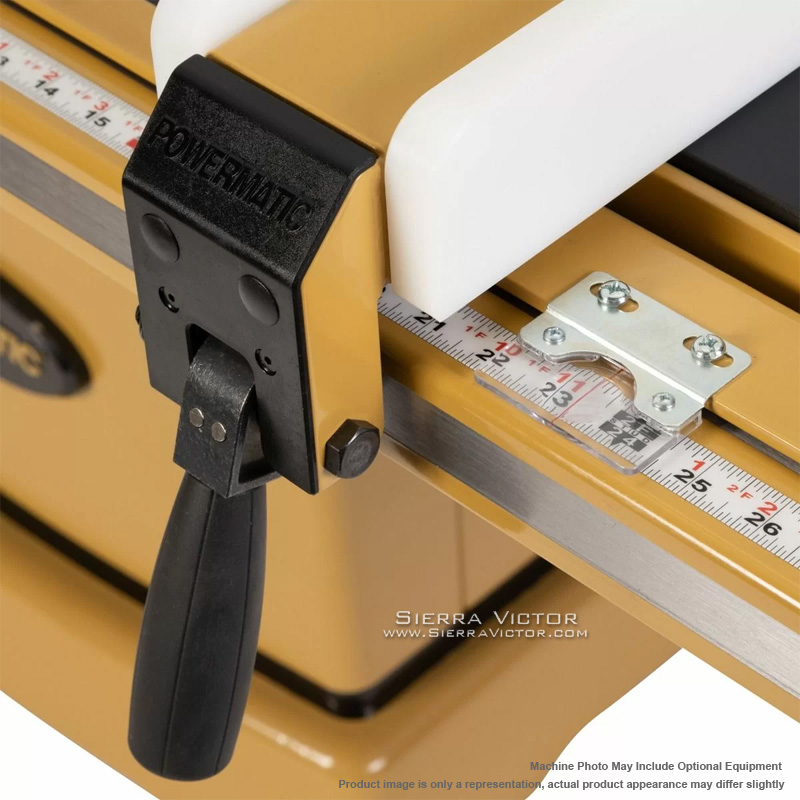

- Industrial-duty Accu-Fence System ensures accurate cuts and increased safety
- One piece, cast iron trunnion provides the strongest stability of any Powermatic table saw.
- Poly-V drive belt system delivers efficient, quiet operation
- Manufacturer
- Specifications

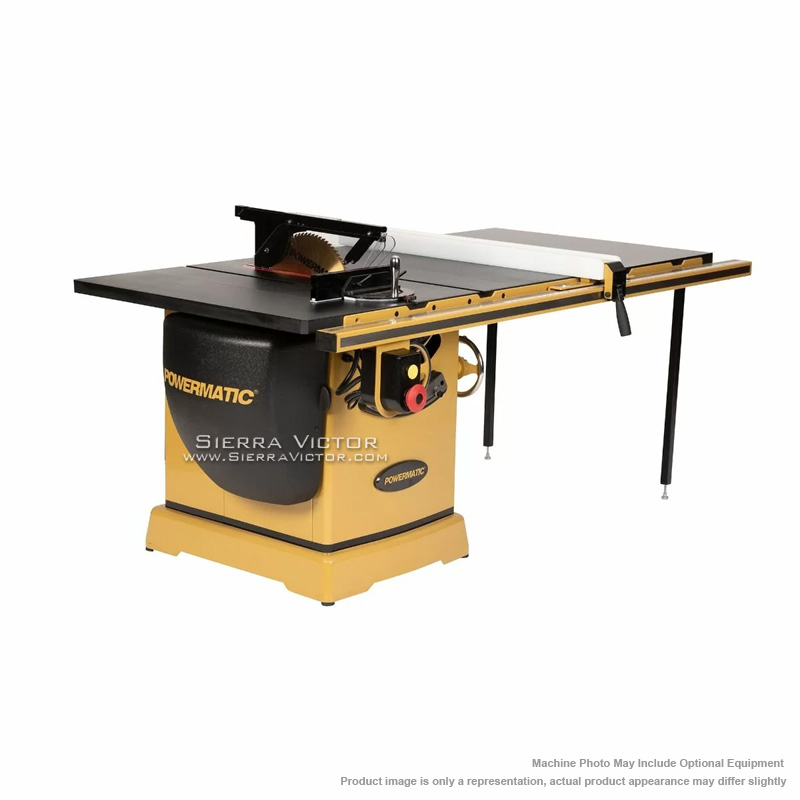

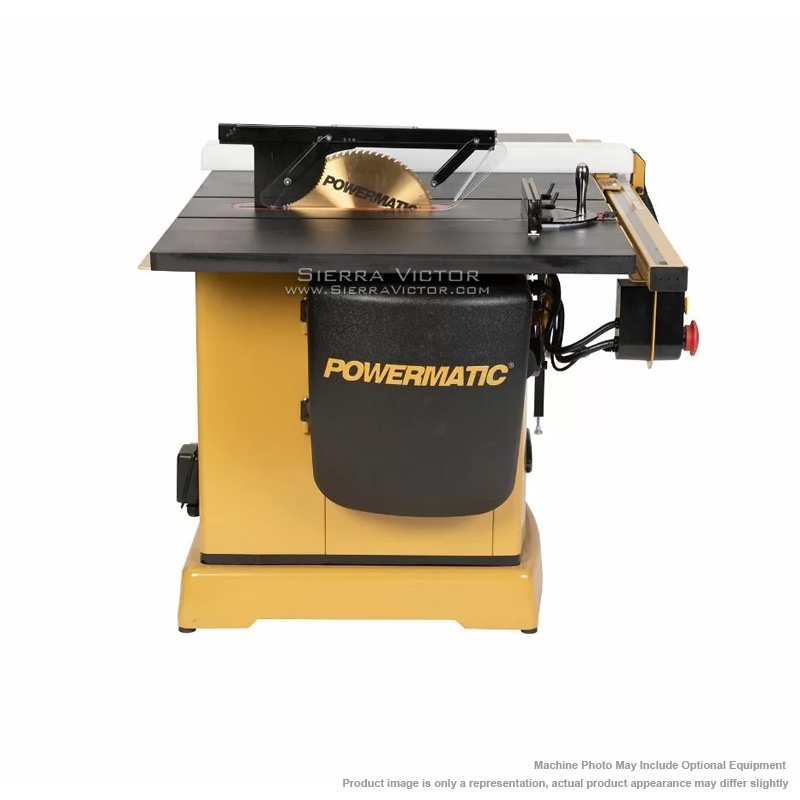

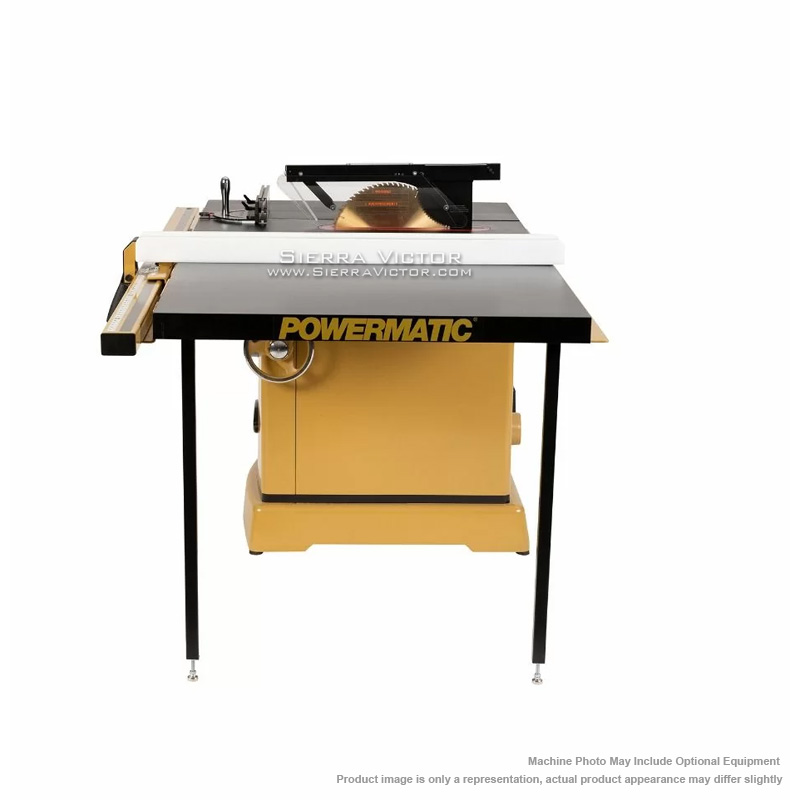

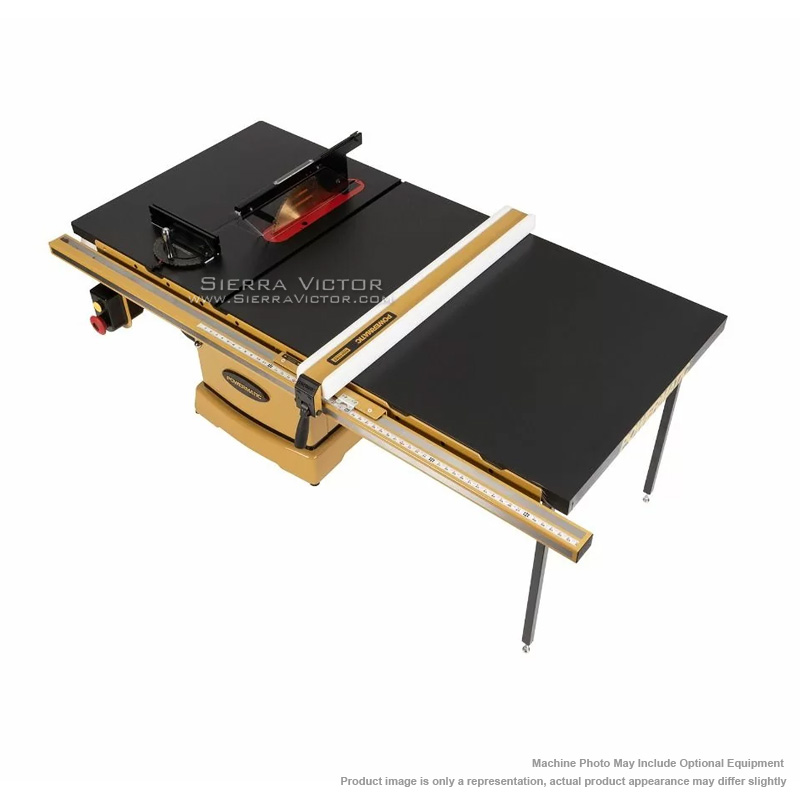

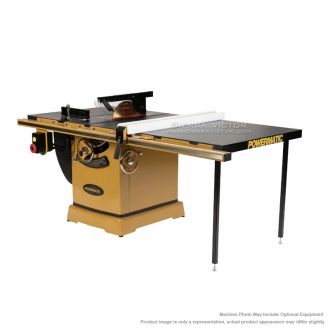

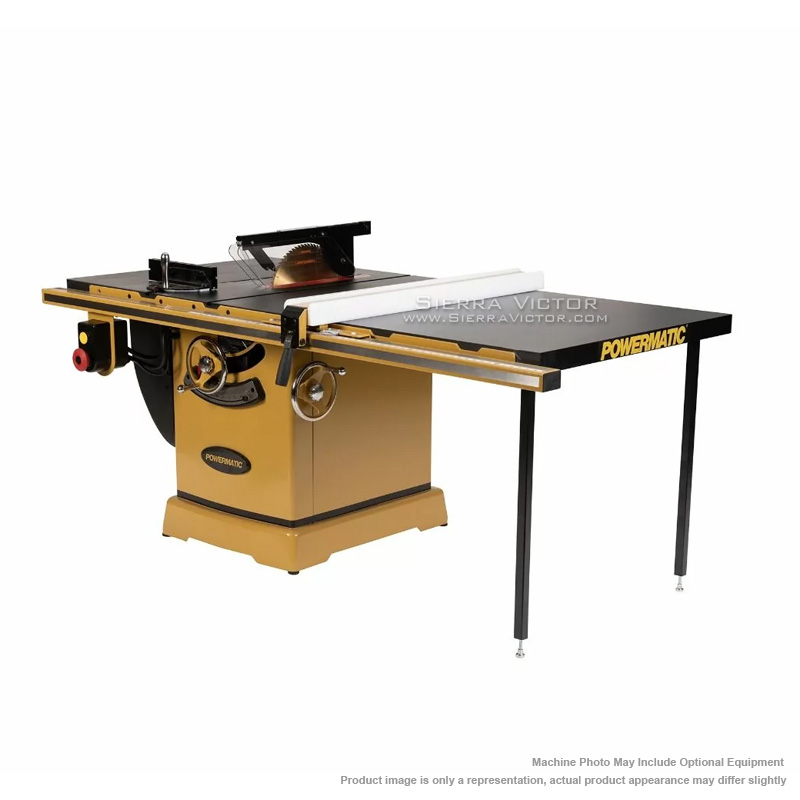

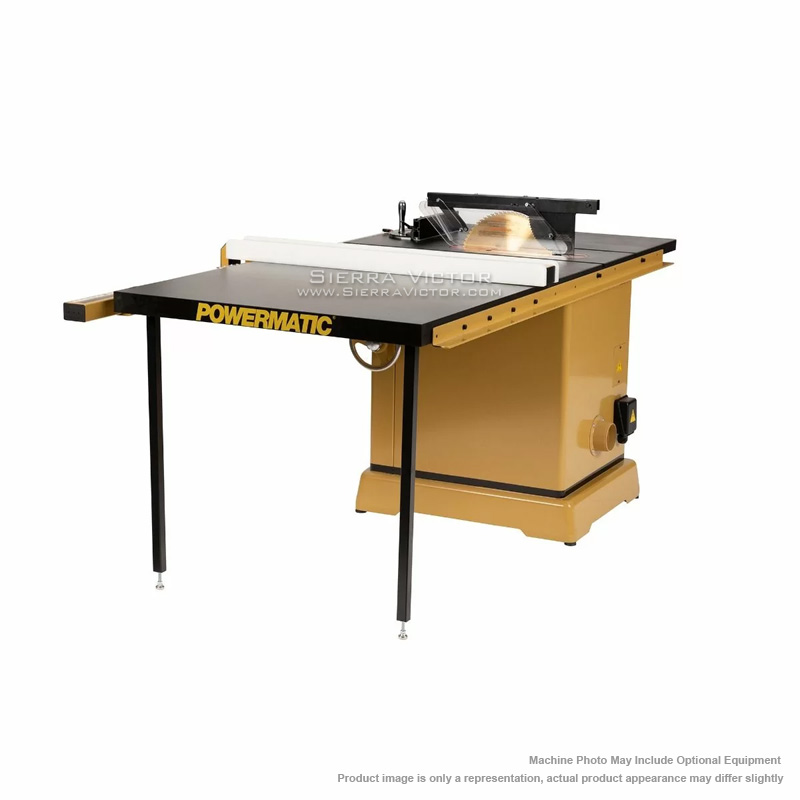

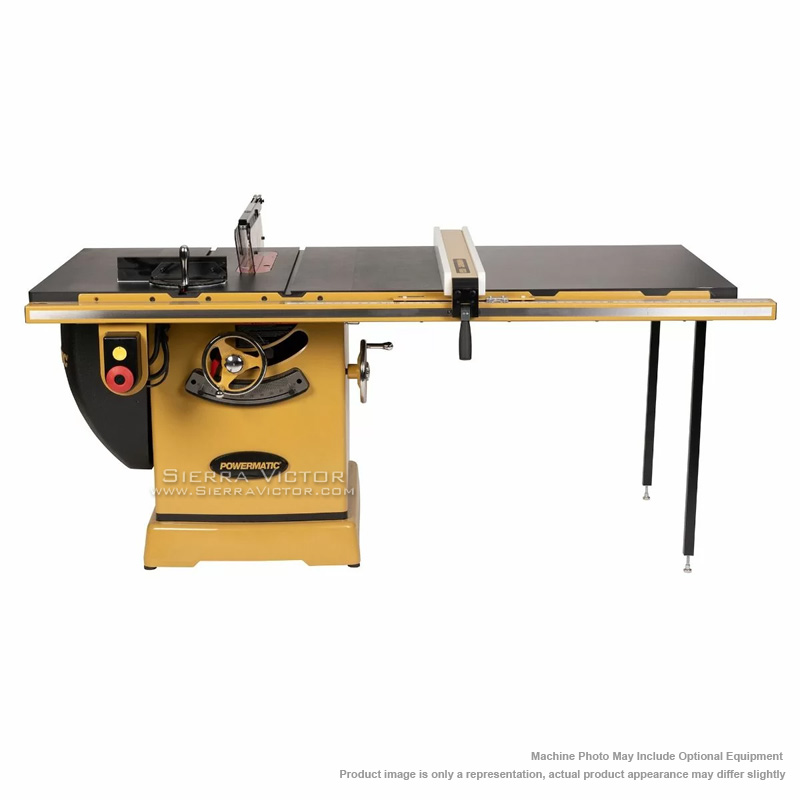

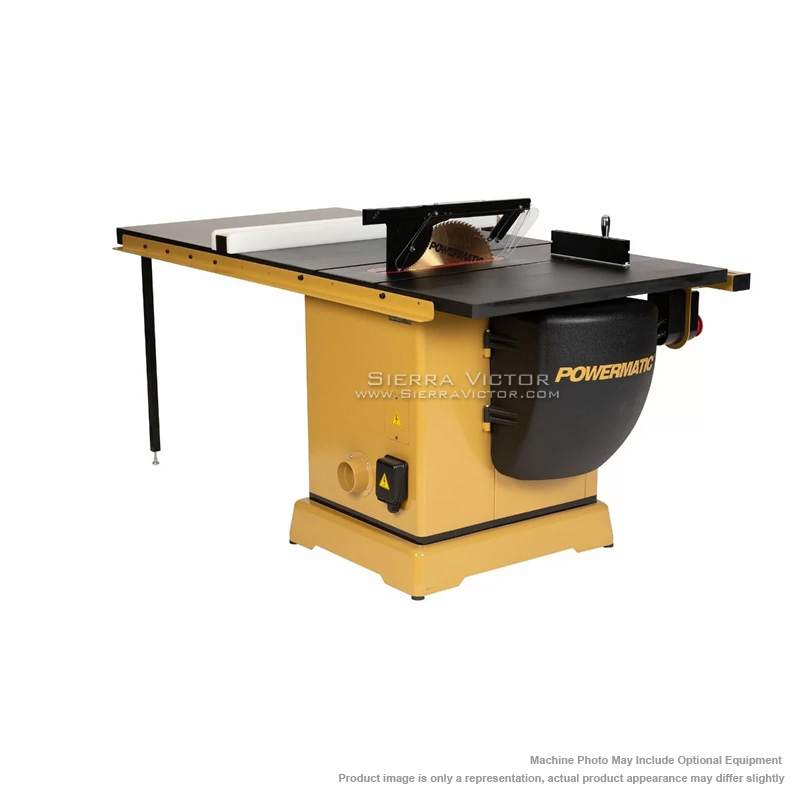

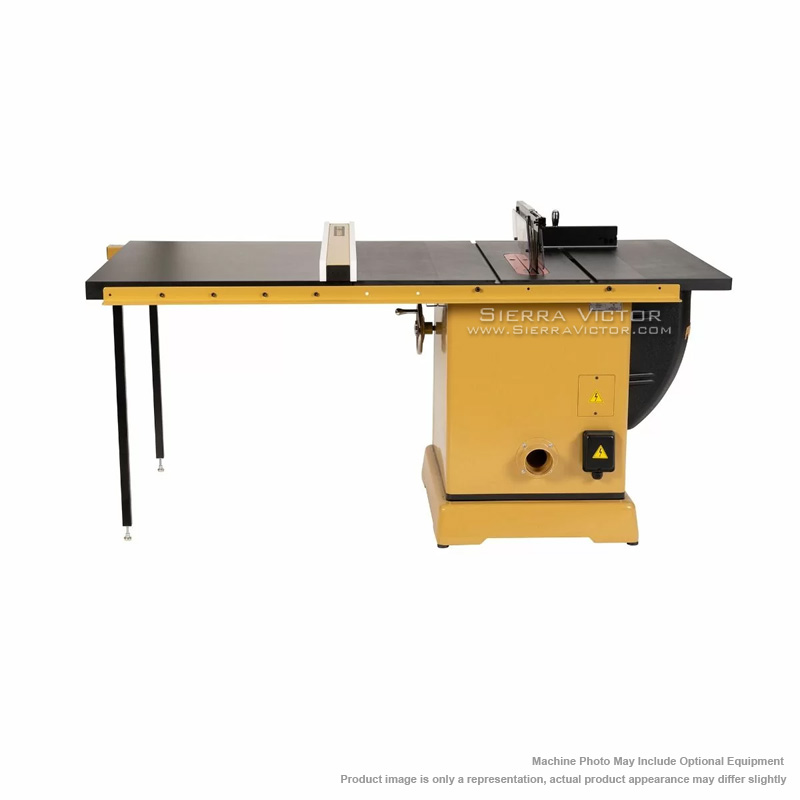

POWERMATIC PM3000T 14 in. Tablesaw w/ArmorGlide, 50 in. Rip and Extension Table 7-1/2 HP 3PH 230/460v | PM1-PM375350KT
ITEM: 14 in. Tablesaw w/ArmorGlide, 50 in. Rip and Extension Table 7-1/2 HP 3PH 230/460v
MANUFACTURER: POWERMATIC
MODEL: PM3000T
PART# PM1-PM375350KT / PM9-PM375350KT-4
Manufacturer:
Powermatic
Machine Type
Machine Category:
Saws - Table/Cabinet
Material Type:
Wood
Metalworking
Saw Capacity:
10"+
STOCK#
|
PM1-PM375350KT
|
PM9-PM375350KT-4 |
Model |
PM3000T |
|
Style (Type) |
Cabinet |
|
Arbor Diameter (In.) |
1 |
|
Arbor Speed (RPM) |
4500 |
|
Blade Diameter (In.) |
14 |
|
Dust Collection Minimum CFM Required (CFM) |
400 |
|
Dust Port Outside Diameter (In.) |
4 |
|
Maximum Depth of Cut at 45 Degrees (In.) |
3-1/2 |
|
Maximum Depth of Cut (In.) |
3-1/2 or 5-1/8 |
|
Maximum Diameter of Dado (In.) |
8 |
|
Maximum Rip Left of Blade (In.) |
14 |
|
Maximum Rip Right of Blade (In.) |
50 |
|
Maximum Width of Dado (In.) |
13/16 |
|
Miter Gauge Type |
T-Slot with Stops |
|
Table Height from Floor (In.) |
35-1/4 |
|
Table Size (L x W) (In.) |
26 x 38 |
|
Table Type |
Cast Iron |
|
Motor Amps |
6.7 |
|
Recommended Circuit Size (Amps.) |
30 |
|
Motor Phase |
3 |
|
Motor Power (HP) |
7.5 |
|
Motor Voltage (V.) |
230/460 |
460 |
Prewired Voltage (V.) |
230 |
— |
Gross Weight (lbs) |
830.0 |
|
Net weight (lbs) |
737.0 |
|
Overall Dimensions (L x W x H) (In.) |
84-11/16 x 46-1/2 x 42-7/8 |
|
Prop 65 |
Cancer and Reproductive Harm |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)
