- Description
- At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftspeople are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity, and more cast iron. This bandsaw, now featuring our ArmorGlide Technology that is low-friction and rust-resistant, includes the legendary quality, precision, and attention to detail that has been helping woodworkers expand their ambition for more than 100 years.
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control.
- Miter gauge is built with robust materials with many positive stops for the most commonly used angles
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
- Exclusive Powermatic T-square style Accu-Fence maximizes accuracy and safety
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- High end blade guides with toolless adjustment provide stability, increasing cut accuracy

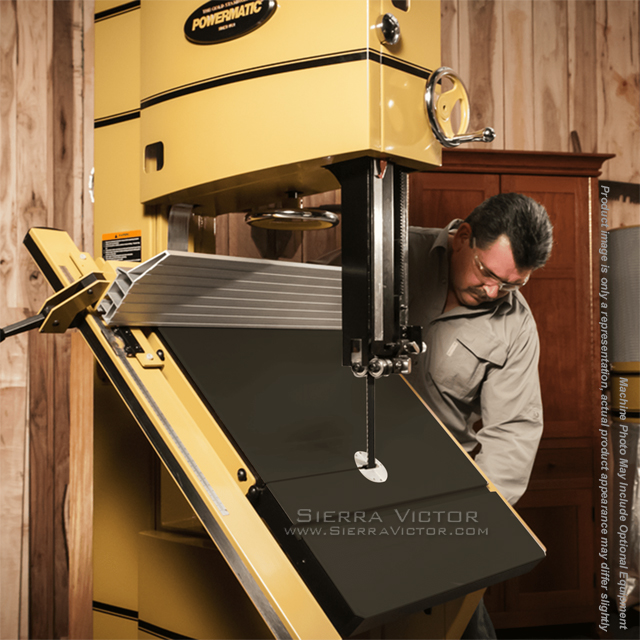

- Rack and pinion table tilt system allows for easy and accurate adjustments

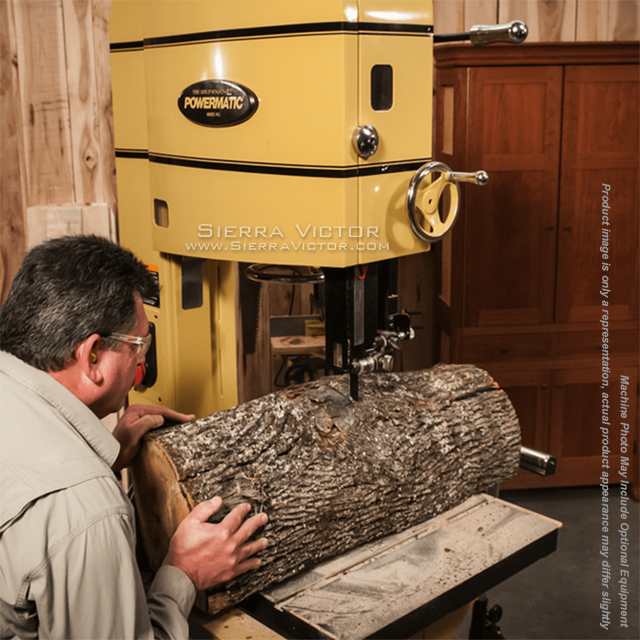

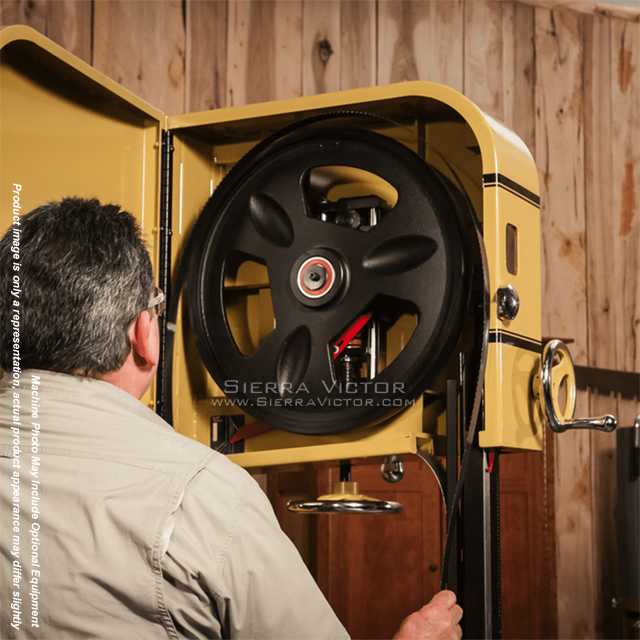

- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
- Accu-Fence has complete adjustability for aligning to blade and squaring to table
- Manufacturer
- Specifications
- Video

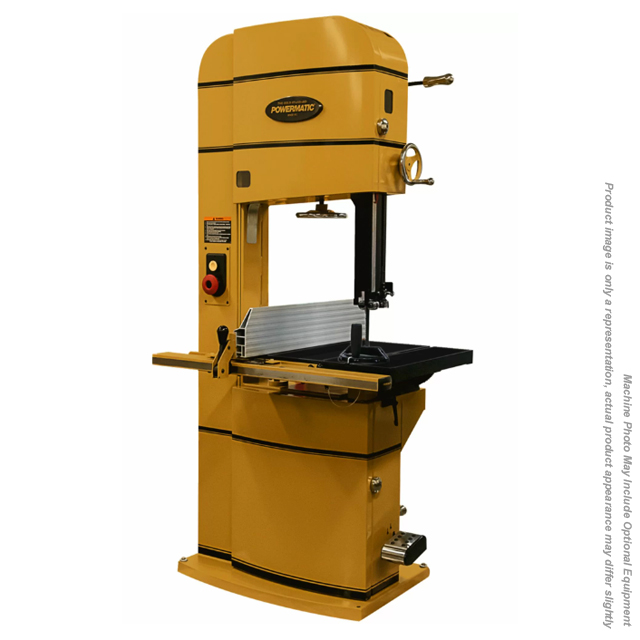

POWERMATIC PM2013B-3T 20 in. Woodworking Bandsaw with ArmorGlide PM1-1791258BT | 3-ph 230/460v
ITEM: 20 in. Woodworking Bandsaw with ArmorGlide
MANUFACTURER: POWERMATIC
MODEL: PM2013B-3T
STOCK# PM1-1791257BT / PM1-1791258BT
Manufacturer:
Powermatic
Machine Type
Machine Category:
Bandsaws
Material Type:
Wood
Metalworking
Saw Capacity:
20"+
MODEL |
PM1-1791258BT |
PM1-1791258BT-4 |
Cutting Capacity Height (In.) |
18 |
|
Cutting Capacity Width (In.) |
20 |
|
Blade Length (In.) |
170 |
|
Minimum Saw Blade Width (In.) |
1/4 |
|
Blade Speed (SFPM) |
2300/4400 |
|
Dust Port Outside Diameter (In.) |
4 |
|
Dust Collection Minimum CFM Required (CFM) |
600 |
|
Table Tilt (Deg.) |
45 Right / 10 Left |
|
Prewired Voltage (V.) |
230 |
460 |
Motor Voltage (V.) |
230 |
460 |
Motor Power (HP) |
5 |
|
Motor Phase |
3 |
|
Recommended Circuit Size (Amps.) |
30 |
|
Table Height from Floor (In.) |
36 |
|
Style (Type) |
Floor |
|
Table T-Slot (In.) |
3/4 |
|
Gross Weight |
953 |
|
Prop 65 |
Cancer and Reproductive Harm |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)
