- Description
- Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. The PM1000 cabinet table saw is an example of this. Now featuring our ArmorGlide Technology that is low-friction and rust-resistant, the PM1000 redefines the limits of design, innovation, and durability.
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
- Miter gauge is built with robust materials with many positive stops for the most commonly used angles
- Blade surround and collection hose provide an unobstructed path, maximizing dust collection
- Arbor lock allows for one handed blade changes with minimal tools
- Conveniently located hands free power switch
- Ergonomically designed 7” handwheels provide momentum, making blade height and bevel adjustments easy
- Exclusive Accu-Fence provides rigidity and precision
- Precision ground cast iron work surface features a beveled edge for smoother operation
- Requires only 115V connection for easy installation
- The poly-V belt drive system reduces vibration and maximizes efficiency
- Manufacturer
- Specifications
- Video

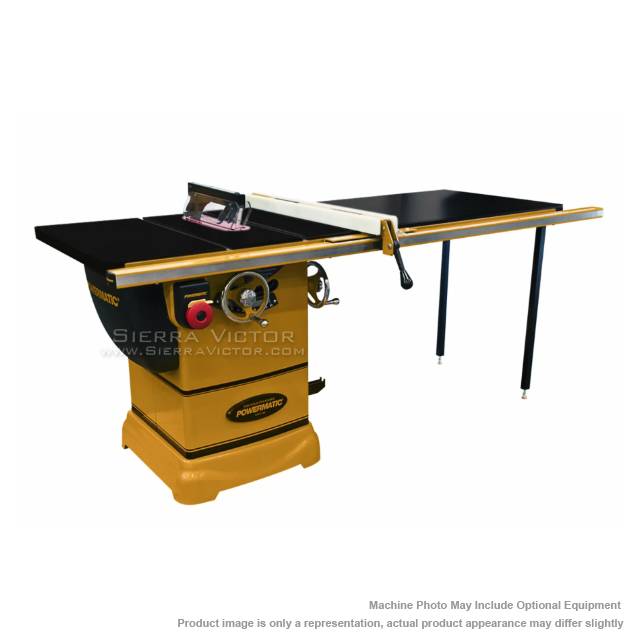

POWERMATIC PM1000T 10 in. Table Saw w/52 in. Rip, Accu-Fence System and ArmorGlide PM1-1791001KT
ITEM: 10 in. Table Saw w/52 in. Rip, Accu-Fence System and ArmorGlide
MANUFACTURER: POWERMATIC
MODEL: PM1000T
PART# PM1-1791001KT
Manufacturer:
Powermatic
Machine Type
Machine Category:
Saws - Table/Cabinet
Material Type:
Wood
Metalworking
Saw Capacity:
10"+
MODEL
|
PM1-1791001KT
|
Style (Type) |
Cabinet |
Arbor Diameter (In.) |
5/8 |
Arbor Speed (RPM) |
4200 |
Blade Diameter (In.) |
10 |
Dust Collection Minimum CFM Required (CFM) |
350 |
Dust Port Outside Diameter (In.) |
4 |
Maximum Depth of Cut at 45 Degrees (In.) |
2-1/8 |
Maximum Depth of Cut (In.) |
2-1/8 or 3-1/8 |
Maximum Diameter of Dado (In.) |
8 |
Maximum Rip Left of Blade (In.) |
12 |
Maximum Rip Right of Blade (In.) |
52 |
Maximum Width of Dado (In.) |
13/16 |
Miter Gauge Type |
T-Slot with Stops |
Table Height from Floor (In.) |
34-1/4 |
Table in Front of Saw Blade at Maximum Depth of Cut (In.) |
10 |
Table Size (L x W) (In.) |
20 x 27 in. |
Table Type |
Cast Iron |
Motor Power (HP) |
1-3/4 |
Motor Phase |
1 |
Motor Voltage (V.) |
115/230 |
Prewired Voltage (V.) |
115 |
Recommended Circuit Size (Amps.) |
20 |
Overall Dimensions (L x W x H) (In.) |
43 x 83 x 44 in. |
Net Weight (Lbs.) |
289 |
Gross Weight (Lbs) |
464.8 |
Prop 65 |
Cancer and Reproductive Harm |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)
