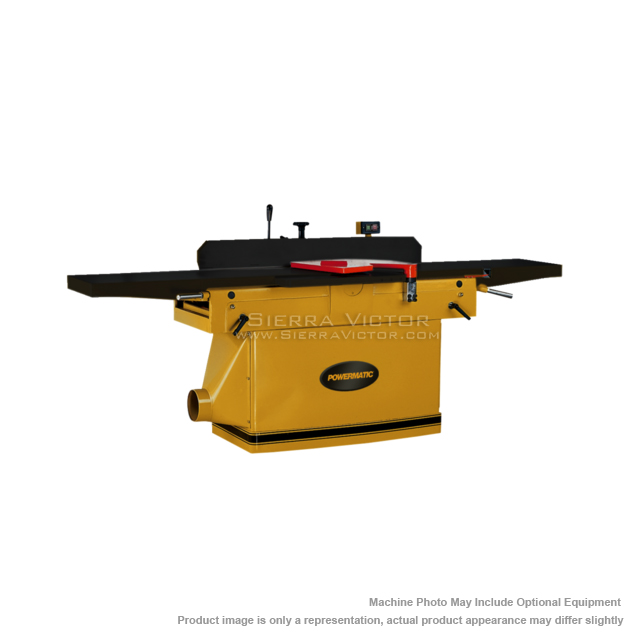

POWERMATIC PJ1696T 16 in. Parallelogram Jointer Helical Cutterheard w/ArmorGlide 3-ph 230/460v | PM1-1791283T

• Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ1696T, 16-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large, center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish, and allows for a fast depth of cut adjustment.
• This design also ensures that the tables remain perfectly parallel, even after years of tough duty. The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing, and never needs adjustments. The heavy-duty 7-1/2-HP motor delivers all the power you need for even the biggest jobs.
• ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
• Cast iron fence bevel controls include positive stops at 45 degrees and 90 degrees
• Full size rabbeting table supports large workpieces for rabbets up to 3/4-inch deep
• Helical cutterhead features 58 two-sided knife inserts that reduce noise, eliminate adjustments, and speed knife changes
• Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
• Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism

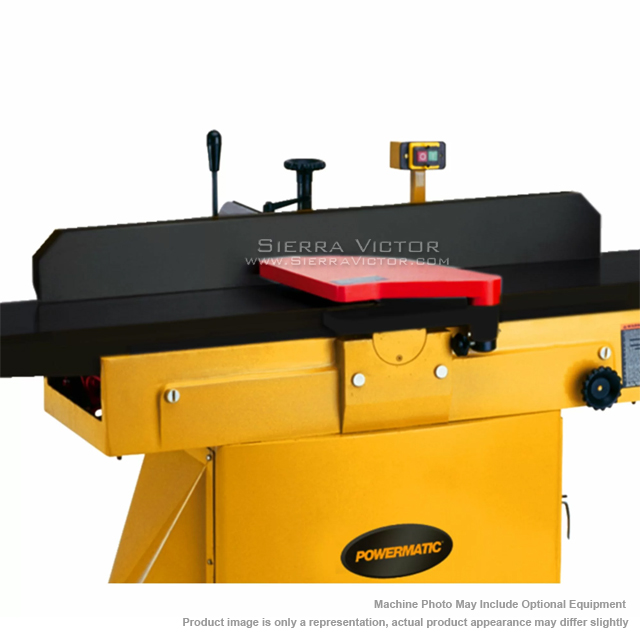

• Rack and pinion adjustable cast iron fence assembly allows for smooth fence positioning without play
• NOTE: The recommended max cutting depth for non-rabbeting cuts is 1/8”. The max cutting depth for rabbeting cuts is 1/2" as the manual has always stated.
